13
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect reed SW. lead wires from the PCB-1.
3. Remove 2 screws holding the reed SW. from the body valve.
4. Now the reed SW. is free.
Note : Tighten the mounting screws of the reed switch at the specifi ed torque ; 3-4 kgf.cm.

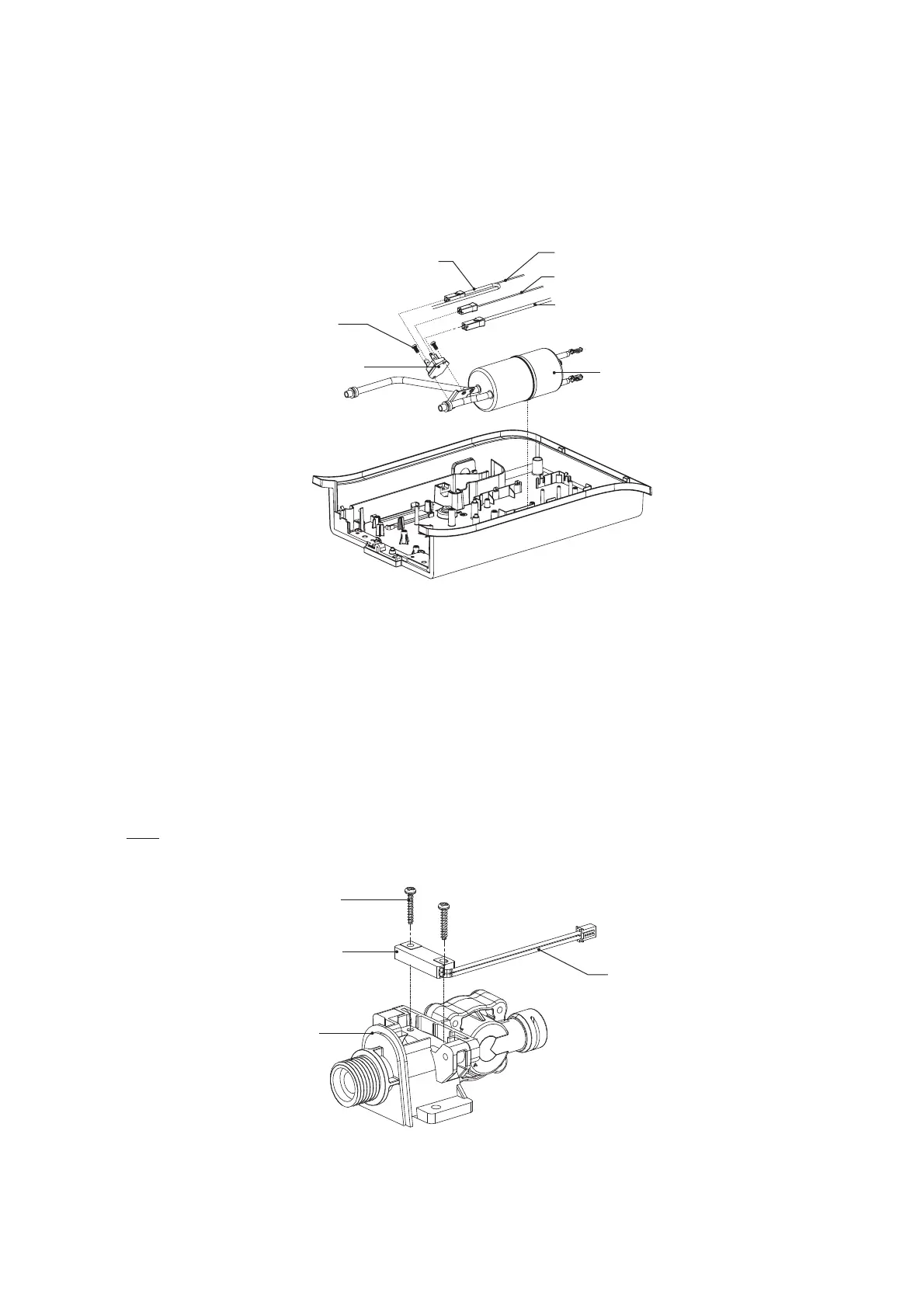

REMOVE OF REED SWITCH
Fig. 25
Reed SW.
Screw
Body valve
Reed SW. lead wire
Fig. 24
REMOVE OF TRIAC
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect 3 lead wires from the triac.
3. Remove 2 screws holding to the heater tank ass’y.
4. Now the triac is free.
Triac
Heater tank
Screw
White lead wire
Breaker lead wire
Triac lead wire
Brown lead wire
