POWER
Press → On.
Press again → Off.
MENU
Press → Accesses MAIN MENU.
Press again → Exits MAIN MENU.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
CHANNEL UP/DOWN
(8) Selects next higher channel.
(9) Selects next lower channel.
REMOTE CONTROL
SENSOR
VIDEO/AUDIO IN 2
TERMINALS
(INSIDE DOOR)

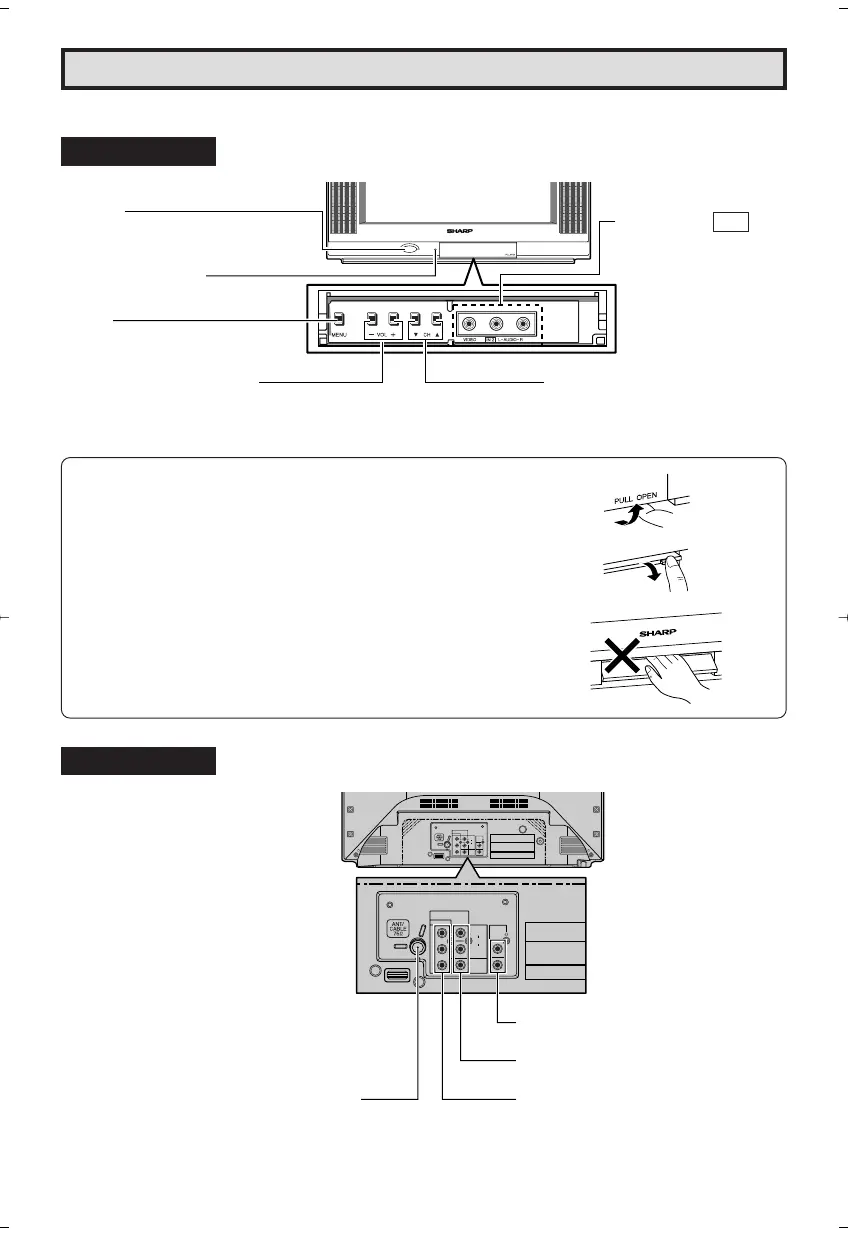

Quick Reference Control Operation
• Part Names
Front Panel
P R
P B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
P R
P B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
ANTENNA/CABLE INPUT TERMINAL
LINE OUT TERMINALS
VIDEO/AUDIO TERMINALS (IN 1)
COMPONENT TERMINALS (IN 1)
Rear Panel
To open the door
Using the projection located under the “PULL-OPEN” indication,
pull and lift the door open.
To close the door
Using the projection, lower the door until closed.
Caution:
• When opening or closing the door, do not insert your fingers
into the gap between the door and front panel. This may result
in an injury.
20F650[05-08].p65 12/1/05, 5:09 PM7
