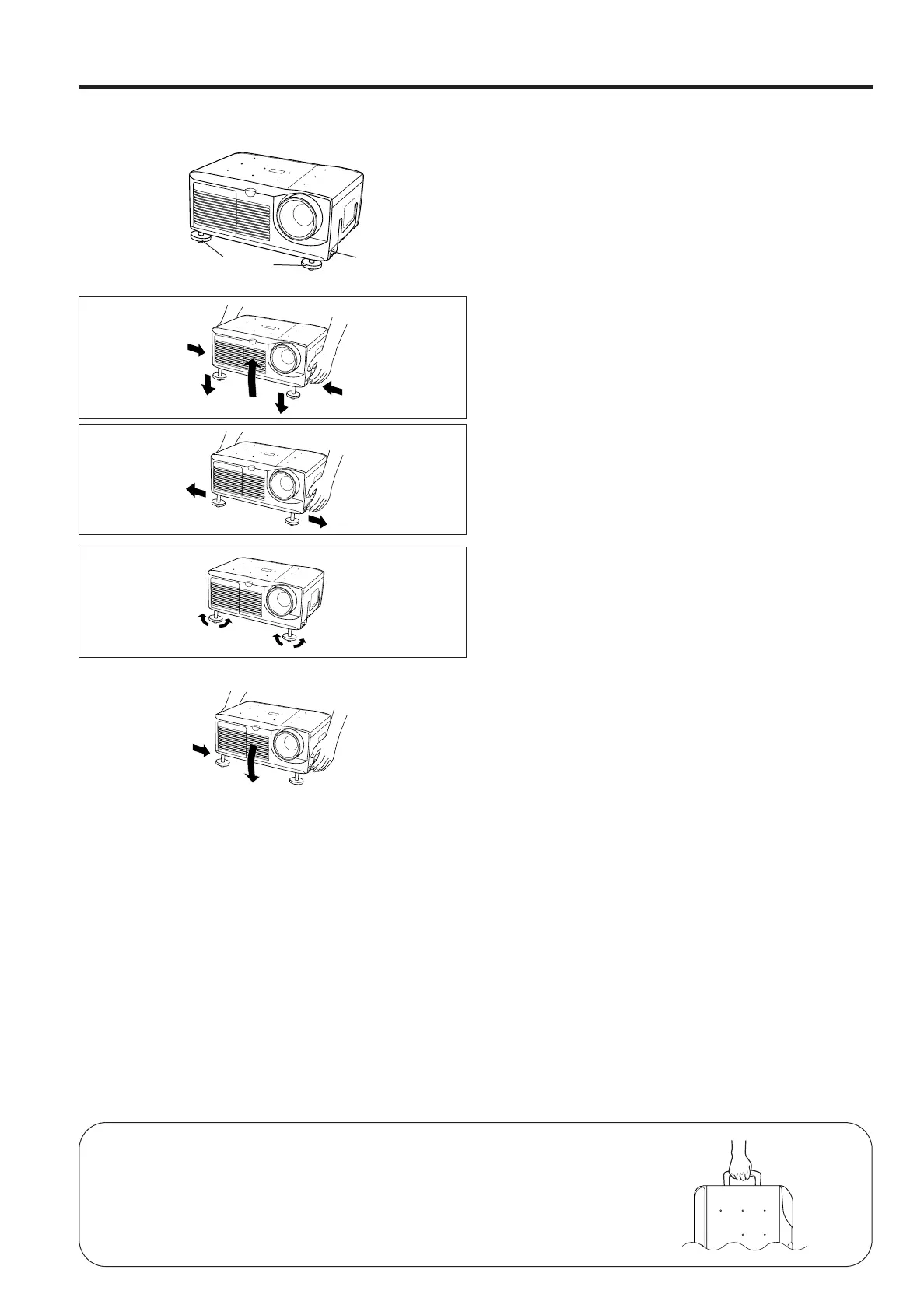

Adjusting the Height of the Picture
• Use the adjuster release to adjust the angle of
the projector and height of the picture. Minor
adjustments can be made with the adjusters.
1. Press the adjuster release and lift the
projector to the desired angle with both
hands.
• The adjuster legs will extend to the surface of the table.
2. Remove your hand from the adjuster
release.
• The adjuster legs will lock in position. Release the projector
once you are sure the adjuster legs have locked in
position.
3. Make any minor adjustments necessary.
• Turn the adjusters to further adjust the angle of the
projector.
Returning the projector to its original position
• While holding the projector with both hands, press the
adjuster release and slowly lower the projector to its
original position.
Notes:
• When adjustments are made with the adjusters, the picture
may become distorted, depending on the relative positions
of the projector and the screen.
• After adjusting, in some cases, all of the adjusters’ feet
may not be resting on the mounting surface.
To prevent the projector from wobbling, adjust the
adjusters’ feet so that they firmly contact the mounting
surface.
Cautions:
• Do not press the adjuster release when the adjuster legs
are extended without firmly holding the projector.
• When lowering the projector, be careful not to get your
fingers caught in the area between the adjusters and the
projector.
• Do not hold the lens when lifting or lowering the projector.
Transporting the Projector
Use the carrying handle when moving the projector.
When transporting the projector, carry it by the handle located on the side of the unit.
Note:
When transporting the projector, always put on the lens cap to prevent damage to the
lens.
Caution:
Do not lift or carry the projector by the lens.
Adjusters
1
2
3
Adjuster release
