Sharp XG-E690UB

Connecting the Projector
E-9

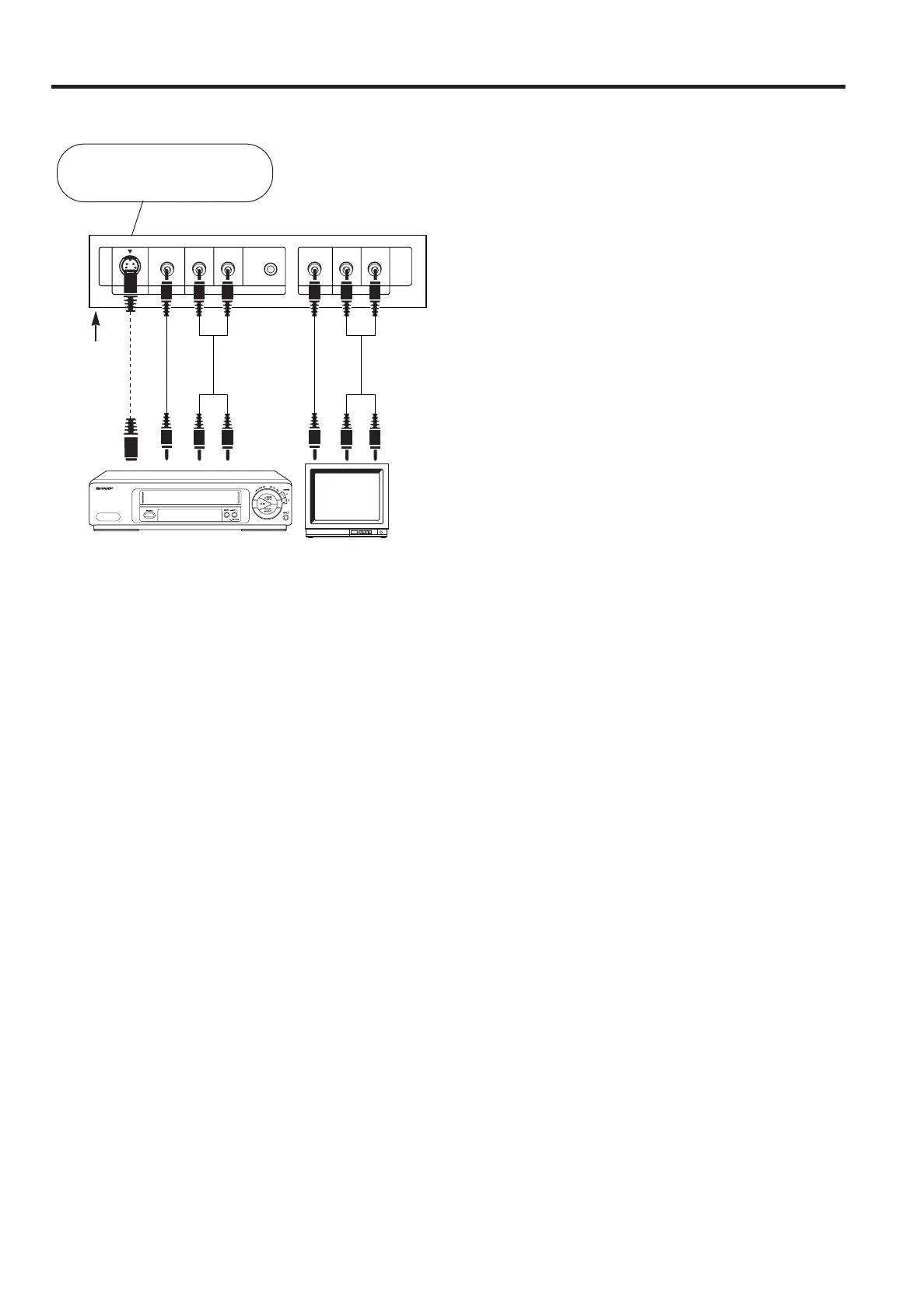

To watch video playback with the projector
connected to audio/video output equipment, such
as a VCR or Laser Disc Player, or to view on a
separate monitor:
•Always turn off the LCD Projector while
connecting to video equipment, in order to
protect both the projector and the
equipment being connected.
Note the following when using the S-VIDEO INPUT terminal:
• The S-VIDEO INPUT terminal uses a video signal system in
which the picture is separated into a color and a luminance
signal to realize a higher-quality picture.
• The S-VIDEO INPUT terminal has priority over the VIDEO
INPUT terminal. Make the audio connection via the VIDEO
INPUT audio terminals (left/right).
• The S-VIDEO INPUT terminal is used when the AV
equipment to be connected has an S-VIDEO output
terminal.
• S-VIDEO cannot be output from the VIDEO OUTPUT
terminal. If a connection is made to both the S-VIDEO
INPUT terminal and the VIDEO INPUT terminal, the signal
input from the VIDEO INPUT terminal will be output from
the VIDEO OUTPUT terminal and the projector will display
the S-VIDEO image because the S-VIDEO INPUT terminal
has priority.
Note:
• By using the external amplifier, the volume can be
amplified for greater sound.
OUTIN
L
AUDIOVIDEOAUDIOVIDEO
S-VIDEO
RRL COMPUTER
To
S-video
output
terminal
To audio
input
terminals
To video
output
terminal
To audio
output
terminals
VCR
Playback
Rear terminals
Used when the AV equipment
to be connected has an
S-VIDEO output terminal.
To video
input
terminal
