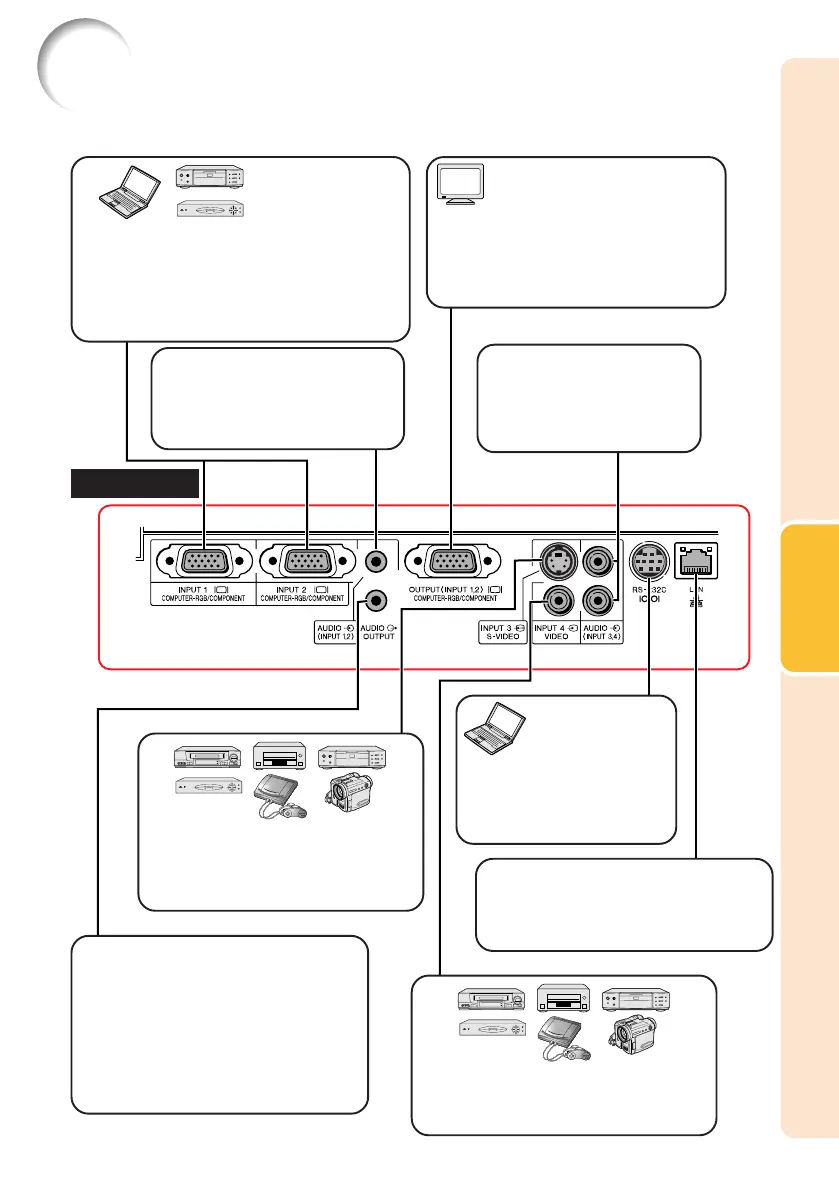

INPUT Terminals and Connectable Main Equipment
INPUT 1, 2 terminal
■ Connecting the computer. (See page 23.)
■ Connecting video equipment with compo-
nent output terminal (DVD player, DTV
decoder, DVD recorder with hard disc,
etc.). (See page 24.)
INPUT 3 terminal
Connecting video equipment with
S-video output terminal (VCR, DVD
player, etc.). (See page 24.)
INPUT 4 terminal
Connecting video equipment without S-
video output terminal. (See page 25.)
AUDIO (INPUT 1, 2) terminal
Connecting an audio cable
(Shared audio input terminal for
INPUT 1 and 2). (See pages 23
and 24.)
AUDIO (INPUT 3, 4) terminal
Connecting an audio cable
(Shared audio input terminal
for INPUT 3 and 4). (See
pages 24 and 25.)
COMPUTER-RGB/COMPONENT
OUTPUT terminal
Connecting the monitor when you want
to simultaneously watch the projection
image on the monitor. (See page 25.)
RS-232C terminal
Connecting the computer to
control the projector. (See
page 26.)
AUDIO OUTPUT terminal
Connecting to an amplifier or other
audio equipment with an audio cable
(commercially available) (Shared
audio output terminal for INPUT 1, 2,
3 and 4).
Use an audio cable with ø3.5 mm
minijack plug to connect to this
terminal.
Rear View
LAN terminal
(10 BASE-T/100 BASE-TX)
Connecting the computer or the hub
using a LAN cable. (See page 27.)
