27
Connections
Connecting the Power Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
Then plug into AC outlet.
AC socket
Power cord
Supplied
accessory

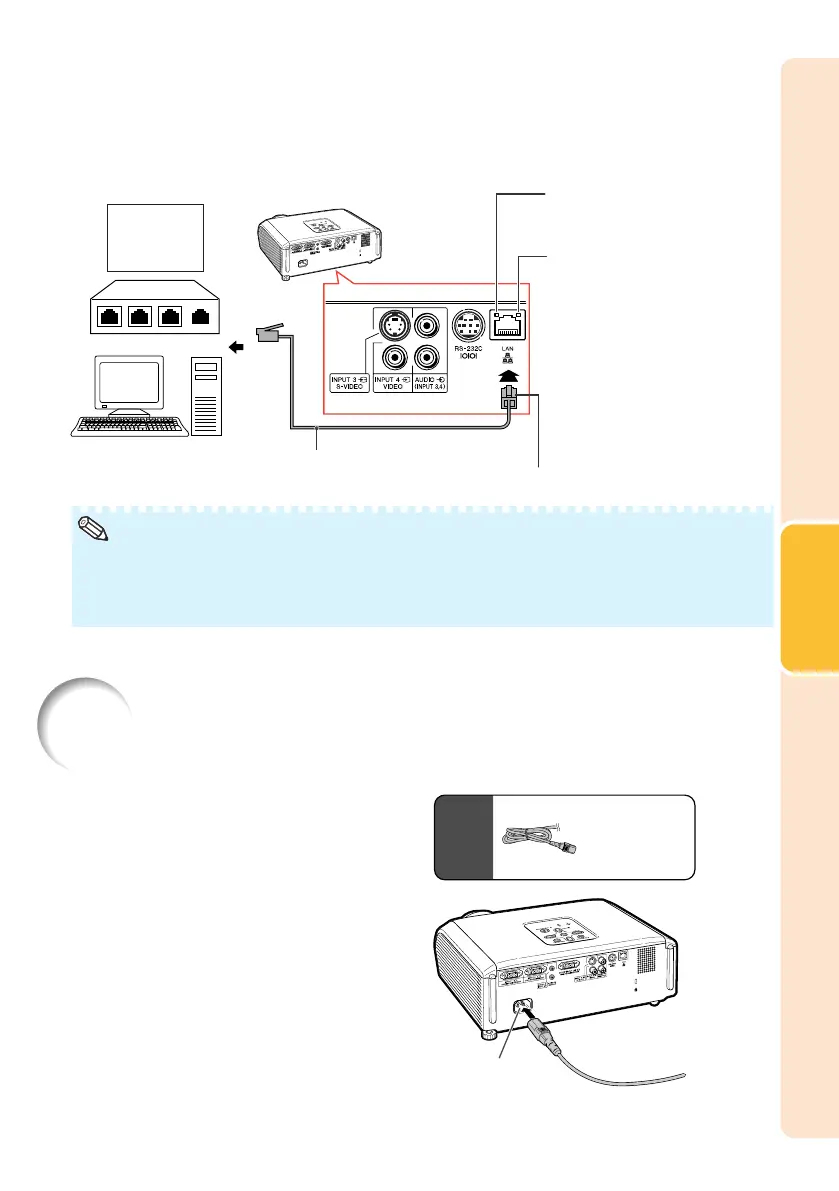

When connecting to the LAN terminal using a LAN cable
TX/RX LED (yellow)
Illuminates when transmit-
ting/receiving data.
LINK LED (green)
Illuminates when linked.
Hub
or
Computer
LAN cable (Category 5 type,
commercially available)
To LAN terminal
* To ensure safety, do not
connect the LAN terminal
with any cables that may
cause excessive voltage
such as a telephone line.
Note
• When connecting to a hub, use a straight-through Category 5 (CAT.5) type cable (commercially
available).
• When connecting to a computer, use a cross-over Category 5 (CAT.5) type cable (commercially
available).
To AC outlet
XG-MB67X_EN2_CD_g 06.5.24, 1:53 PM27
