Video Wall Projection
Setting up the Video Wall Projection Basic

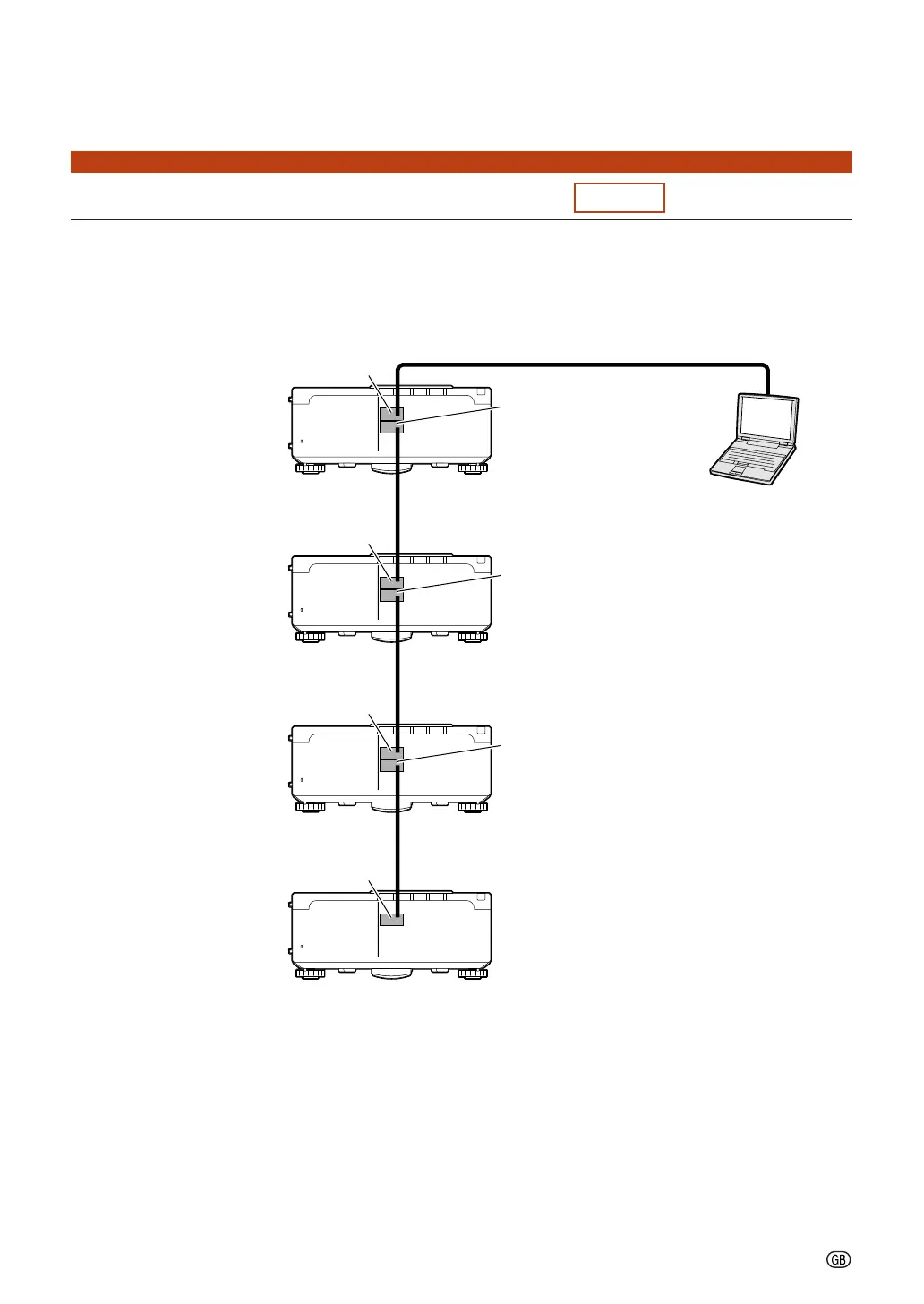

Following is an example of how to build a 2 X 2 video wall using 4 projectors.
Projector 1
Projector 2
Projector 3
Projector 4
COMPUTER/COMPONENT1 terminal
RGB cable
RGB cable
RGB cable
RGB cable
MONITOR OUT (FOR COMPUTER/
COMPONENT1,2)
terminal
COMPUTER/COMPONENT1 terminal
COMPUTER/COMPONENT1 terminal
COMPUTER/COMPONENT1 terminal
MONITOR OUT (FOR COMPUTER/
COMPONENT1,2)
terminal
MONITOR OUT (FOR COMPUTER/
COMPONENT1,2)
terminal
Computer
