31
Basic
Operation

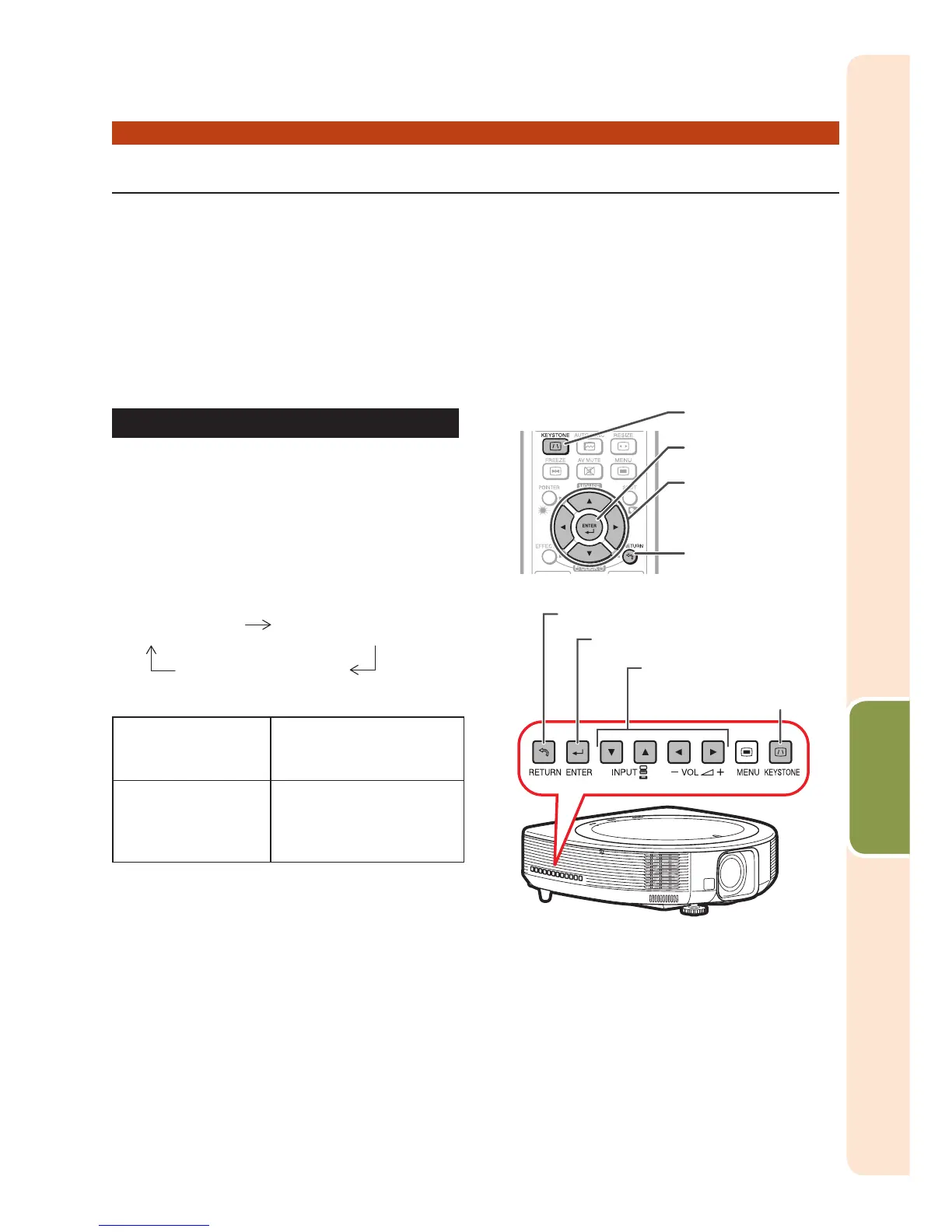

Selecting the Type of the Correction
Select the type of the keystone
correction.
Press KEYSTONE on the projector or
on the remote control.
“GEOMETRIC ADJUSTMENT” will be displayed.
Each time KEYSTONE is pressed, the display
toggles as follows:
The display disappears.
GEOMETRIC
ADJUSTMENT
H&V KEYSTONE
GEOMETRIC
ADJUSTMENT
For correcting an image
designating the corner of
the projected image
H&V KEYSTONE For correcting an image
designating the
horizontal or vertical
axes
Correcting Trapezoidal Distortion
When the image is projected either from the top or from the bottom towards the
screen at an angle, the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion is called Keystone Correction.
There are the two types of the Keystone Correction.
1) “GEOMETRIC ADJUSTMENT” for correcting an image designating the corner
of the projected image
2) H&V KEYSTONE” for designating the correction of the horizontal and
vertical axes
KEYSTONE button
Adjustment buttons
(P/R/O/Q)
RETURN button
ENTER button
KEYSTONE button
Adjustment buttons
(P/R/O/Q)
RETURN button
ENTER button
