7

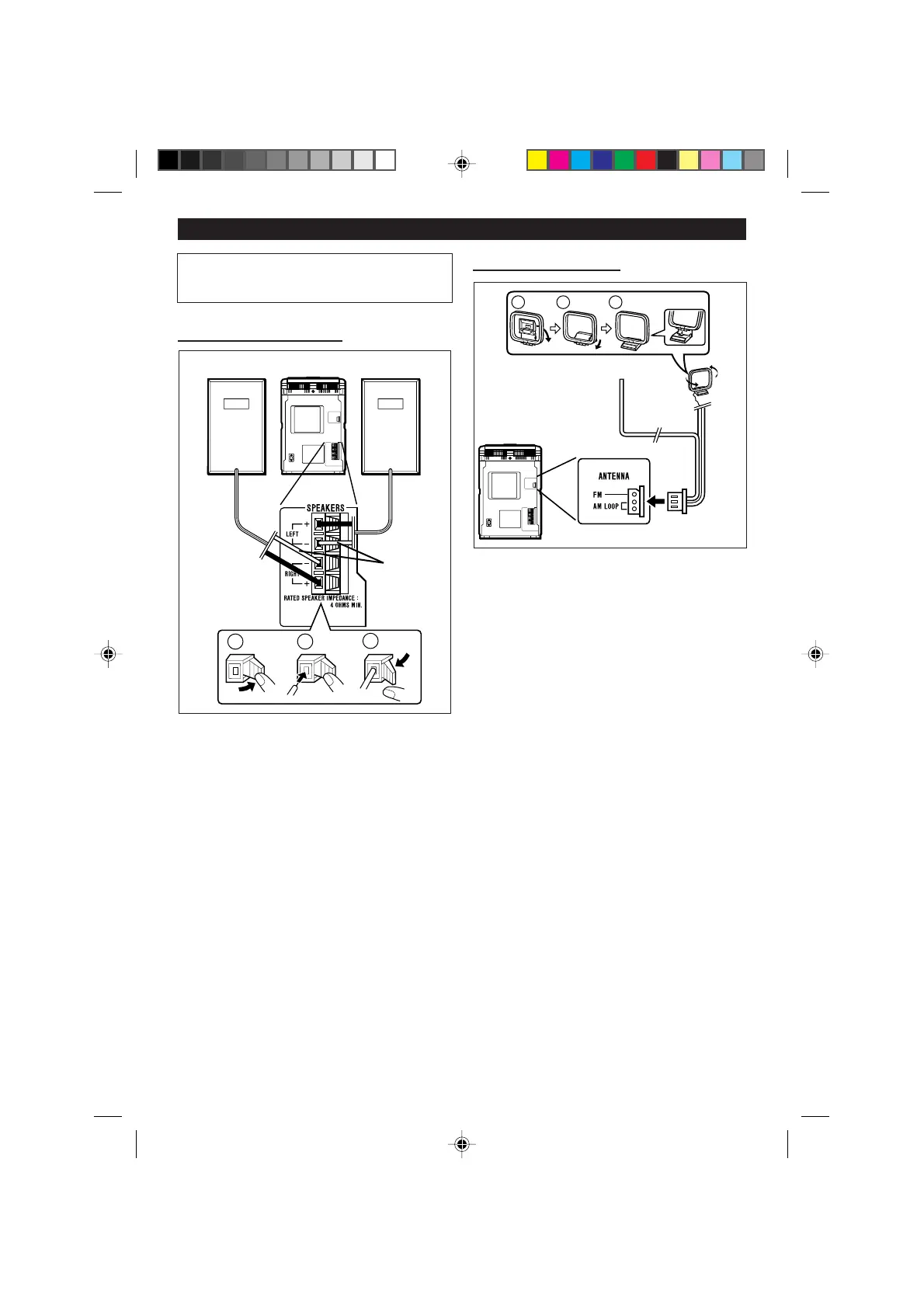

PREPARATION FOR USE
Connect each speaker wire to the SPEAKER termi-
nals as shown.
Use speakers with an impedance of 4 ohms or
more.
Use of speakers with an impedance less than 4
ohms may damage your unit.
Notes:
● Connect the wire with the white line to the minus
(-) terminal and the plain wire to the plus (+) ter-
minal.
● Do not mix the right channel and left channel
wiring when connecting the speakers to the unit.
● Do not let the bare speaker wires touch each
other as this may damage the amplifier and/or
speakers.
● The speaker grille is not removable.
● Unplug the AC power lead from the AC socket
before connecting or disconnecting any com-
ponent.
■ Aerial connection
■ Speaker connection
2
1
3
Right speaker
Left speaker
1
2
3
Connect the aerial wire to the ANTENNA socket.
FM aerial
Position the FM aerial wire in the direction where
the strongest signal can be received.
AM loop aerial
Position the AM loop aerial for optimum reception.
Place the AM loop aerial on a shelf, etc., or attach
it to a stand or wall with screws (not supplied).
Notes:
● Do not place the aerial on the main unit as it may
result in noise pickup from the internal digital elec-
tronics.
Place the aerial away from the unit for better re-
ception.
● If the AM loop aerial and the FM aerial wire are
placed near the AC power lead, interference may
result.
● Do not connect the attached FM aerial to an ex-
ternal FM aerial. Otherwise, trouble may occur.
AM
loop
aerial
White
line
FM aerial
**XL-30H(SUK)P01-P08 00.2.2, 3:53 PM7
