XL-70/70C
– 8 –
1 Side Panel
(Left/Right)
1. Screw .................. (A1) x8 8-1
2 Top Cabinet 1. Screw .................. (B1) x1 8-1
2. Socket ................. (B2) x2
3 Rear Panel 1. Screw .................. (C1) x3 8-1
2. Screw .................. (C2) x2
4 Power Amp. PWB 1. Screw .................. (D1) x1 8-2
2. Socket ................. (D2) x2
5 Main PWB/ 1. Screw .................. (E1) x3 8-3
Headphones PWB 2. Screw .................. (E2) x2
3. Bracket ................ (E3) x1
4. Socket ................. (E4) x3
5. Flat wire............... (E5) x1
6. Socket ................. (E6) x1
6 Jog Switch PWB 1. Socket ................. (F1) x1 8-3
2. Screw .................. (F2) x2
3. Knob .................... (F3) x1
7 Display PWB/ 1. Screw .................. (G1) x3 8-3
LED PWB 2. Screw .................. (G2) x3
(With Jog Motor 3. Bracket ................ (G3) x1
Holder) 4. Socket ................. (G4) x1
5. Hook .................... (G5) x2
6. Hook .................... (G6) x2
8 Front Panel 1. Screw .................. (H1) x1 8-3
2. Socket ................. (H2) x1
3. Screw .................. (H3) x1
9 Power PWB 1. Screw .................. (J1) x4 8-3
2. Screw .................. (J2) x1
3. Screw .................. (J3) x1
4. Bracket ................ (J4) x1
10 Tape Mechanism 1. Open the cassette holder 9-1
2. Screw .................. (K1) x4
11 CD PWB/ 1. Screw .................. (L1) x6 9-2
Open Close Switch 2. Socket ................. (L2) x4
PWB/CD Lid PWB 3. Hook .................... (L3) x1
(Note)
12 Digital Out PWB 1. Socket ................. (M1) x1 9-2
2. Screw .................. (M2) x1
13 CD Mechanism 1. Screw .................. (N1) x3 9-3
2. Screw .................. (N2) x3

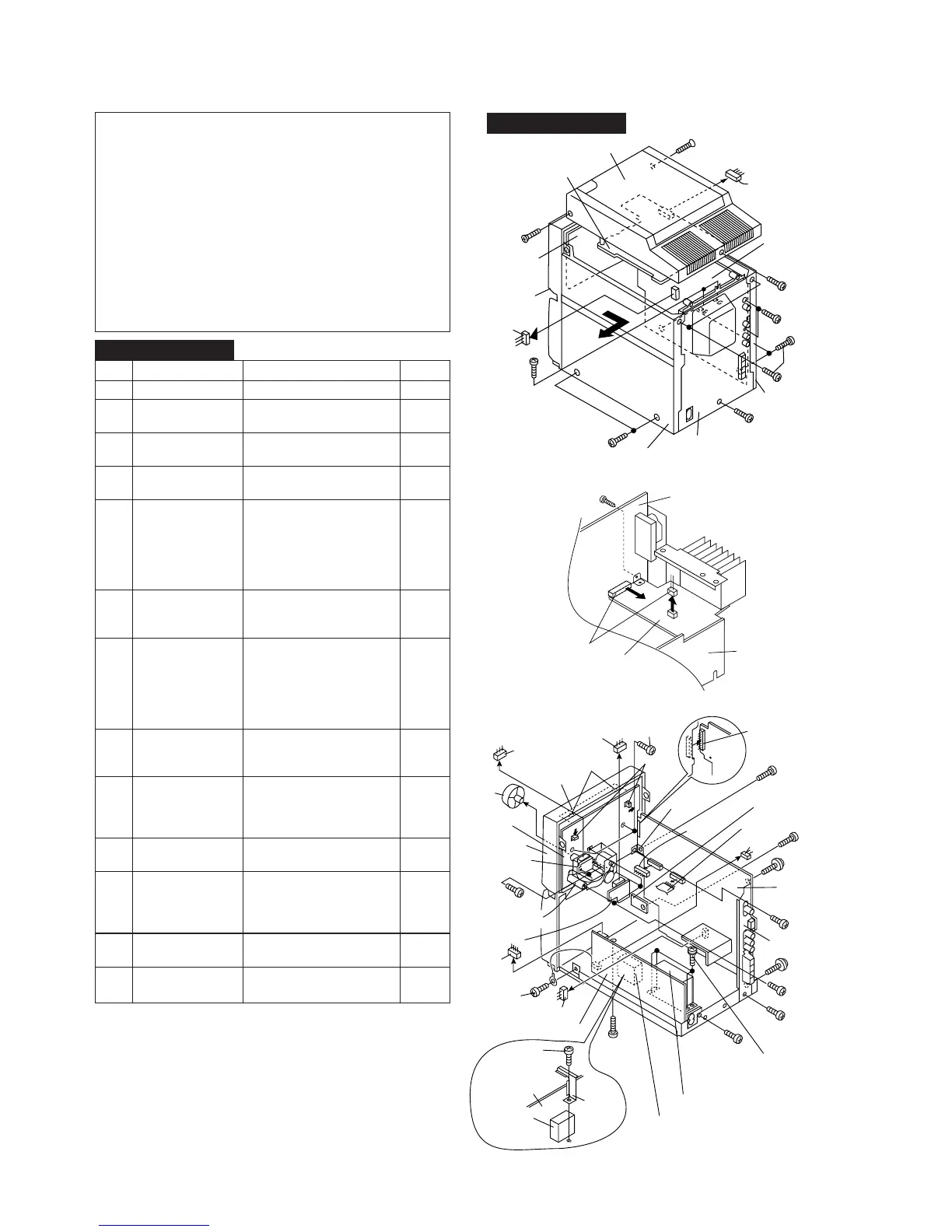

DISASSEMBLY
Figure 8-2
Figure 8-3
STEP REMOVAL
PROCEDURE
FIGURE
Figure 8-1
XL-70/70C
XL-70/70C
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
(D1)x1
ø3x8mm
Main PWB
Power
PWB
Power Amp.
PWB
(D2)x2
To Next Page
