CHAPTER 3. MECHANICAL DESCRIPTION

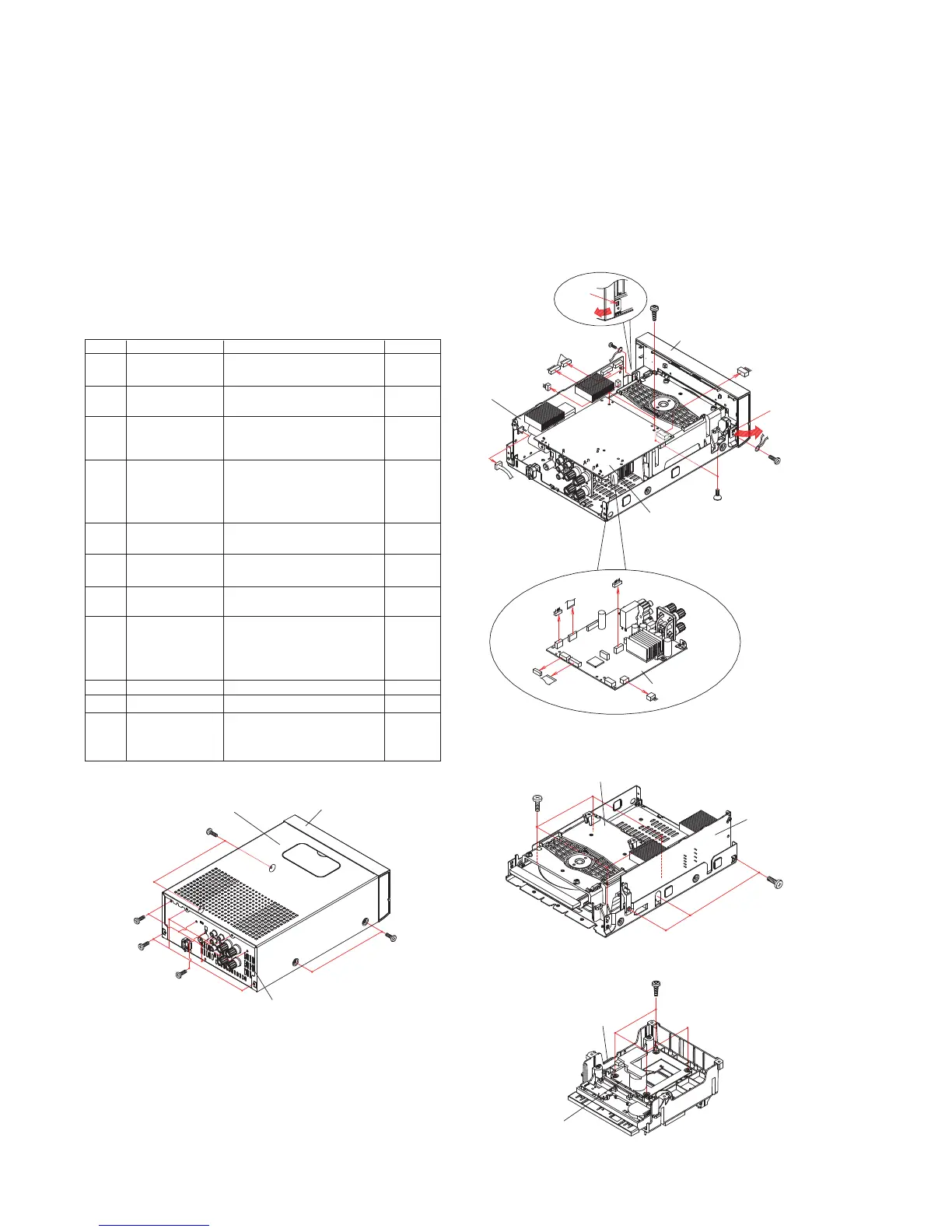

[1] Disassembly
Caution On Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were before disassembling.
Figure 2
Figure 3
STEP REMOVAL PROCEDURE FIGURE
1 Top Cabinet
with iPod PWB
1. Screw..................(A1) X 8
2. Socket ................(A2) X 1
1
2
2Rear Panel
1. Screw..................(B1) X 7
2. Screw..................(B2) X 1
1
3 Main PWB
1. Screw..................(C1) X 2
2. Socket ................(C2) X 6
3. Flat Cable ...........(C3) X 2
2
4 Front Panel
Assy
1. Screw..................(D1) X 2
2. Screw..................(D2) X 2
3. Socket ................(D3) X 1
4. Hook ...................(D4) X 2
2
5 SMPS PWB
1. Screw..................(E1) X 3
2. Socket ................(E2) X 1
3
2
6 CD Mechanism
Assy
1. Screw..................(F1) X 4
3
7 CD Mechanism
Unit
1. Screw................. (G1) X 4
4
8Display PWB
1. Knob ...................(H1) X 1
2. Nut......................(H2) X 1
3. Washer ...............(H3) X 1
4. Screw..................(H4) X 3
5
9 Key/Jack PWB
1. Screw..................(J1) X 4
5
10 USB PWB
1. Screw..................(K1) X 1
5
11 iPod PWB
1. Copper Sheet .... (L1) X 1
2. iPod Cover......... (L2) X 1
3. Screw................. (L3) X 2
6
Hook
(D4)x1
PULL
(C1)x2
M3x8mm
Front Panel Assy
(A2)x1
Hook
(D4)x1
PULL
(D1)x1
M3x8mm
(D2)x2
M3x8mm
Main PWB
(C2)x1
Main PWB
(C2)x1
(C3)x1
(C2)x1
(C2)x1
(C3)x1
(D1)x1
M3x8mm
(C2)x2
(D3)x1
SMPS PWB
(E2)x1
SMPS PWB
(E1)x3
M3x8mm
CD Mechanism Assy
(F1)x4
Special Screw
(G1)x4
Special Screw
CD Mechanism Assy
CD Mechanism Unit
Figure 4
Figure 1
Rear Panel
(A1)x2
M3x8mm
Front Panel Assy
Top Cabinet
with iPod PWB
(A1)x2
M3x8mm
(B1)x7
M3x8mm
(A1)x4
M3x8mm
(B2)x1
M3x6mm
To Next Page
