INSTALLATION
Warning: before using the portable air conditioning unit, keep it upright for at
least two hours before powering it on.

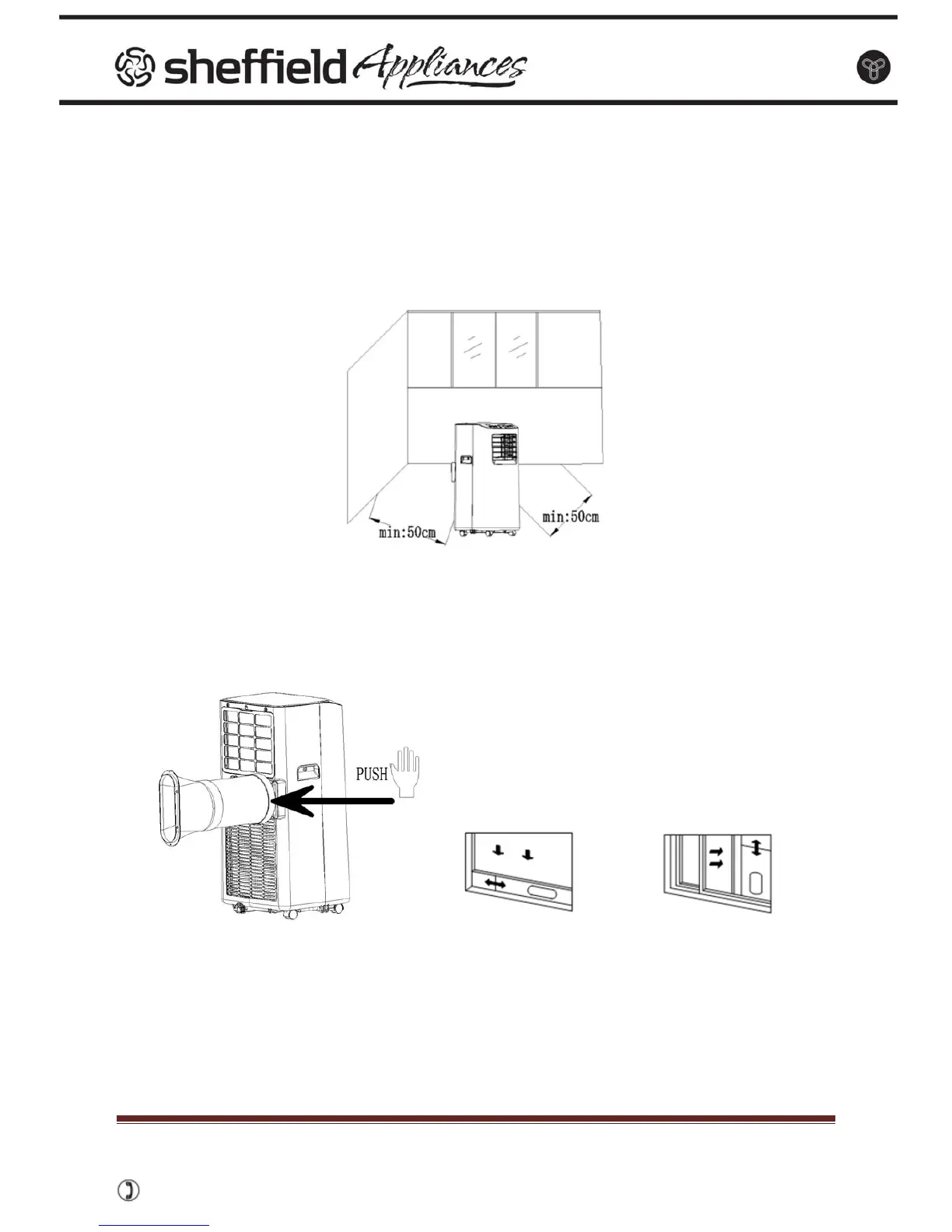

1. Appliance should be placed on a flat, level surface; 50cm clear space is required
around the appliance.
2.
3. Install the exhaust pipe assembly: screw the pipe assembly into the exhaust port
on the rear panel.
4. Install the window sealing plate assembly.
5. Half open the window, and mount the window sealing plate assembly to the
window; the assembly can be placed in horizontal and vertical direction.
6. Pull various components of the window sealing plate assembly open, adjust their
opening distance to bring both ends of the assembly into contact with the window
frame, and fix various components of the assembly.
7. Install the window sealing plate assembly
8. Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the
hole of the window sealing plate assembly.
NOTE: the flat end of the exhaust pipe joints must be snapped into place.
