Unboxing and Assembly
10
Shell
RIDE

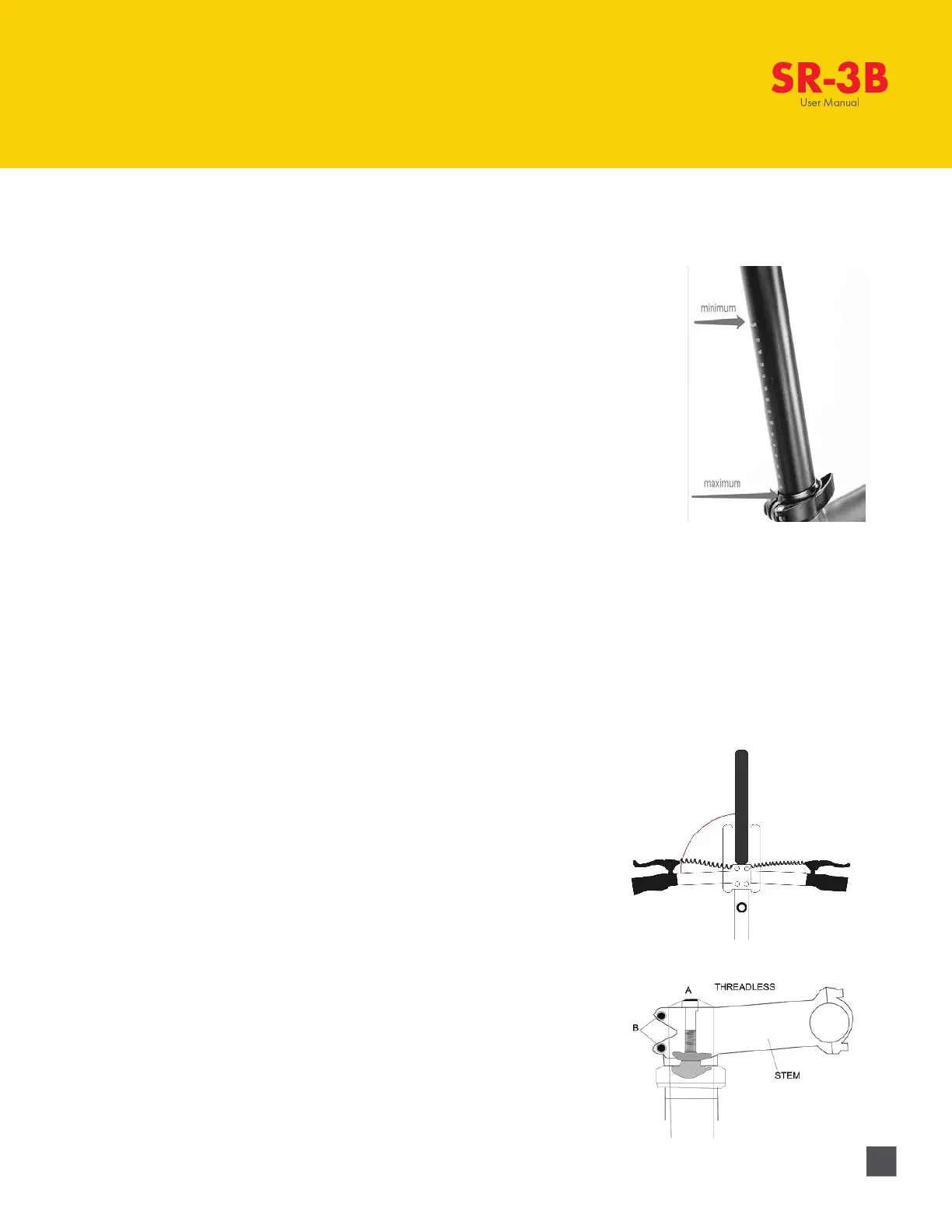

4- Adjust the Seat
Your seat height is adjusted by a quick release. Pull the quick release
lever, Insert your seat post to at least the minimum insertion line
marked on the post. Tighten the adjusting nut by quick release lever,
then push the quick release lever to the closed position. The seat angle
is adjusted with the nuts that attach the seat to the seat rail. Ensure
that the nuts are tightened firmly and that the seat does not move
forward or back while you are sitting on it.
6- Aligning and tightening the handlebars
Using an allen key, loosen the 2 side bolts (B) and turn the
handlebar through 90 degrees. Adjust the tension of the
headset by turning bolt A if necessary but first release the
side bolts, adjust then re-tighten. Note that the you only need
to tighten the bolt A until the handlebar assembly and fork
have no free play, but so that the handlebar assembly and
fork can still freely turn left and right. If the wheel does not
move freely left to right the top cap bolt is too tight. If this is
the case turn the top cap bolt back some.
5- Adjustment of the seat post
The adjustment method is as follows :
Loose the hand release of the seat post, take out the seat post; Adjust the screw, Place the seat
post back in the frame tube as former station, and tighten the clamp of the seat position.
90°
