Shelly Wave i4 User Manual

5
3. About the Device
The Device is a 4-digital inputs module (110-240 V AC) that controls other devices within the
Z-Wave network. It enables manual activation or deactivation of scenes through a switch/push-
button.
If the SW is configured as a switch (default), each toggle of the switch will trigger the predefined
scene. If the SW is configured as a push-button in the Device settings, each press of the push-
button will trigger the predefined scene.

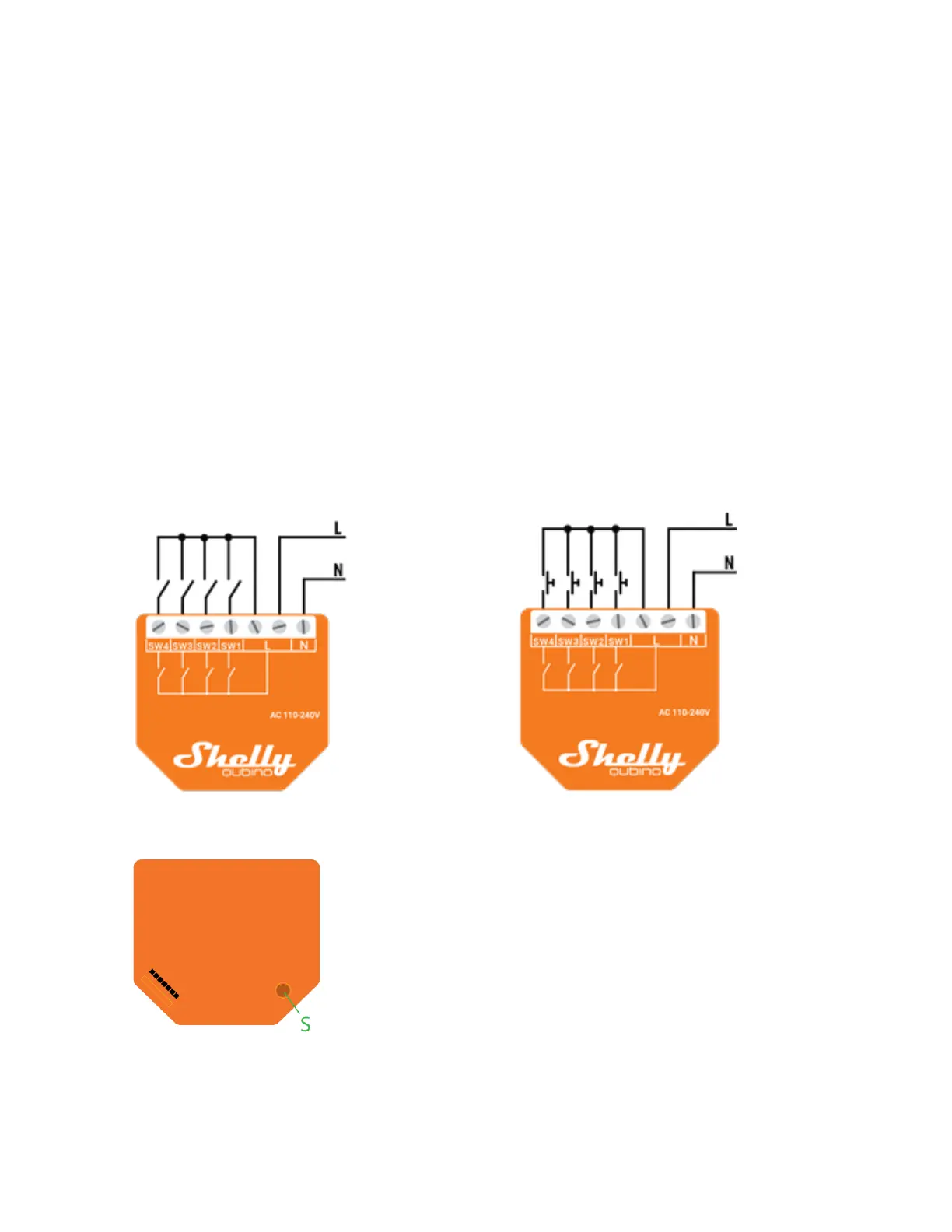

4. Electrical diagrams 110-240 V AC
Connecting to the power grid with power supply 110-240 V AC (Fig. 1-2)
Fig.1 Fig.2
Fig.3

Shelly Wave i4 Specifications

General

Brand	Shelly
Model	Wave i4
Category	Controller
Language	English
