8. LED Signalization
General rules
• Switching between Normal and Settings mode is done by Single press on the S button
• Solid LED means that you are in the Settings mode (this is not valid for Plugs). Ones in
settings mode, switch to normal mode goes automatically after 10s
• If the LED is not in Alarm mode, it will turn off after a timeout of 30 min. Pressing the S
button or power cycling the Device will wake the LED for 30 min.
Normal mode LED status: Normal mode is defined by stable device function that can remain for
an infinite time.
LED type: RGB dimmable
Normal mode
Removed/Excluded

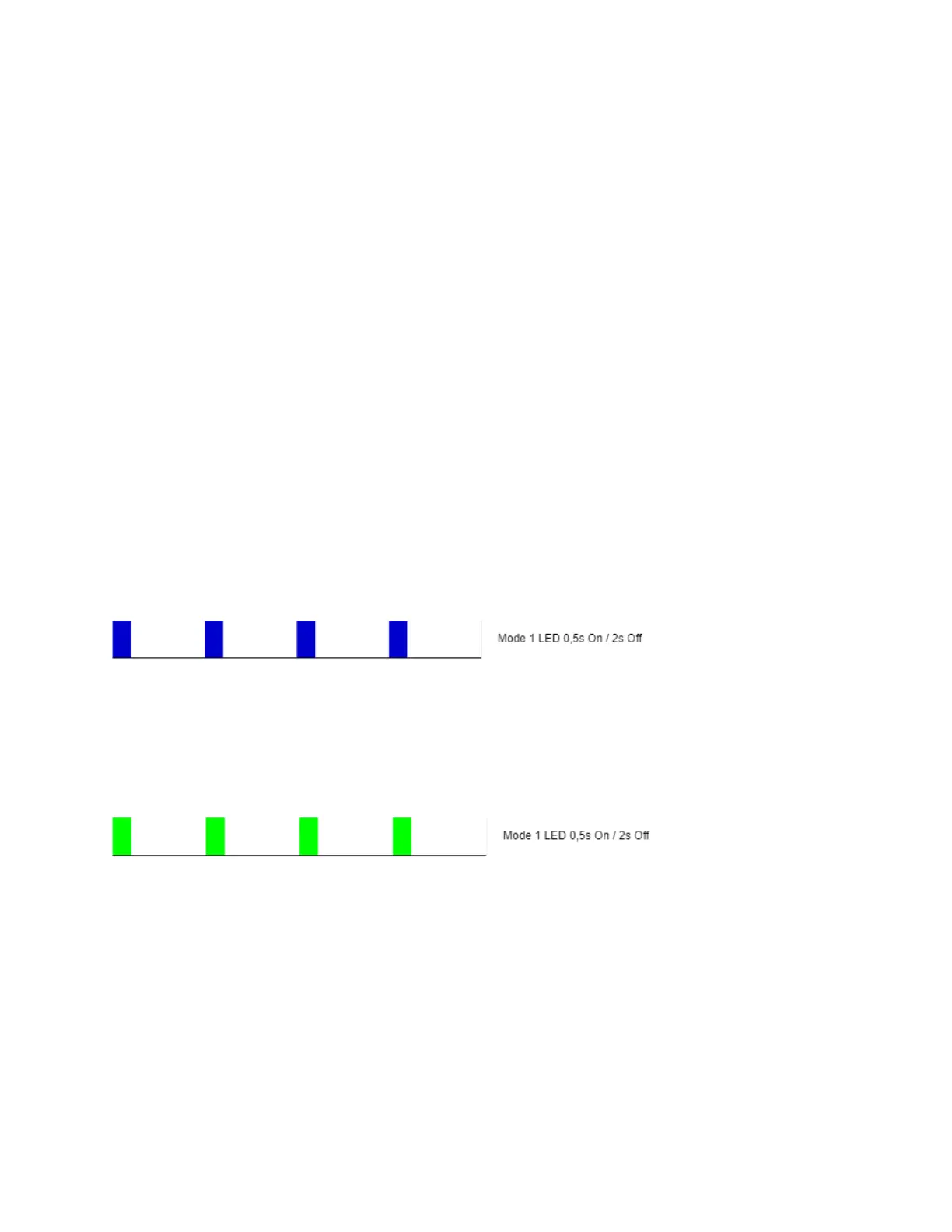

The LED will be blinking blue in Mode 1 for 30 min after every power cycle and 10 min after S
button pressed.
Added/Included
The LED will be blinking green in Mode 1 for 30 min after every power cycle and 10 min after S
button pressed.
Settings in progress
Factory reset and reboot
During factory reset, the LED will turn solid green for approx. 1sec, then the blue and red LED
will be blinking 0,1s On / 0,1s Off for about 2sec.
Adding / Removing
During adding or removing, the LED will be blinking blue in Mode 2.
