STEP 1. ATTACH WINGS
PAGE 1
PARTY WING KIT TO THE
FRAME
# 10458
# 10459
STEP 2. PARTY TENT CONVERSION
After attaching the walls, assemble the six tent poles
as shown to the right. Lay these off to the side for later.
10436
Tie a knot in the end of each rope and thread it thru
the rope clamp and anchor. These anchor assemb-
lies will be used later.
Knot
Fig. A
Fig. B
Cover
Twist this
way !
Cover
At the (4) corners of the canopy release the tension
on the corner ropes and remove them from the leg
poles, so the side valence is loose. Secure the loose
rope and "S" Hook to a bungee cord inside the roof
of the canopy.

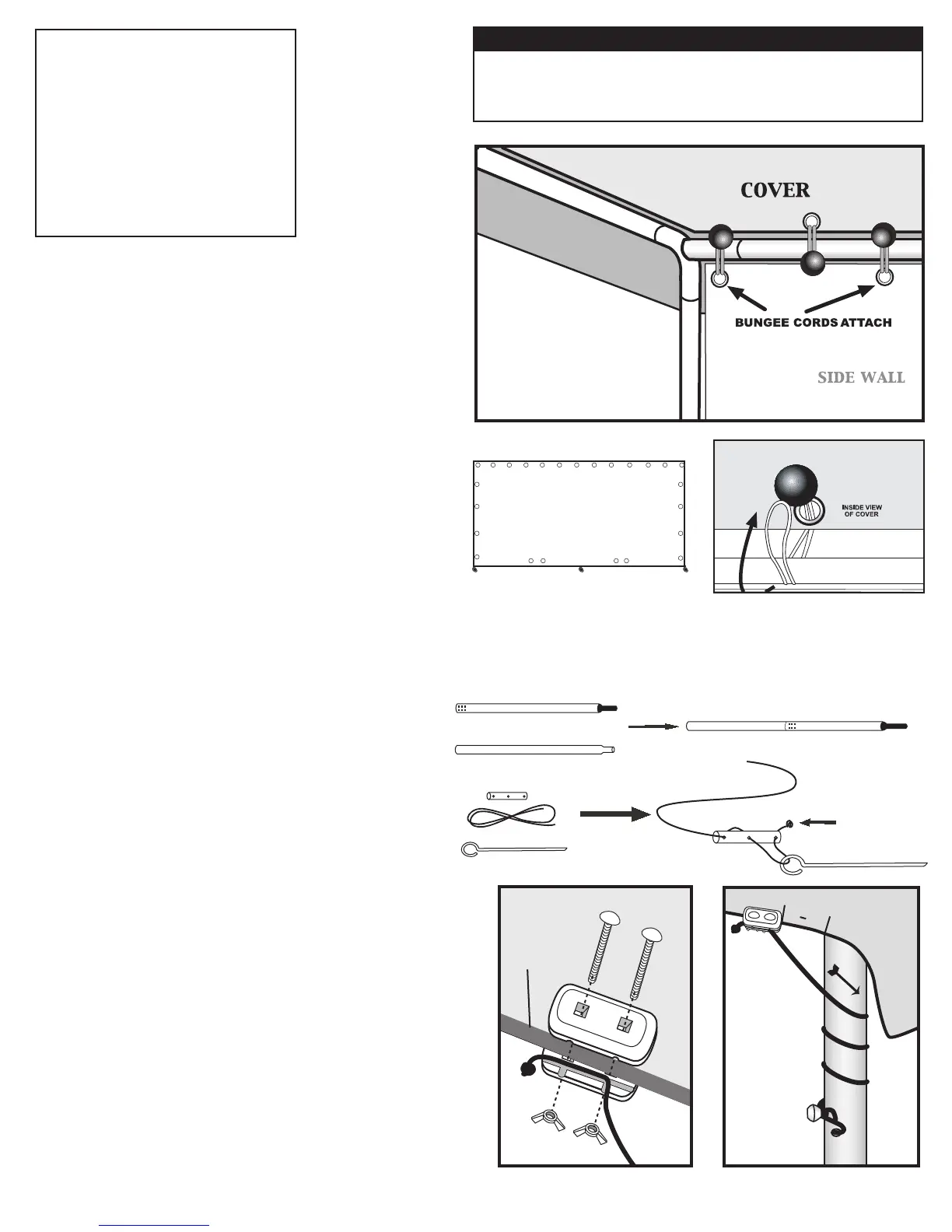

Following figures A & B attach the ropes and "S" Hooks
provided in the kit to the ends of the canopy's main cover
using the clamps, bolts and nuts. The clamp should be
mounted approximately 6" to 10" up from the corner. Ins-
ert the "S" Hook into the corner upright and twist to tens-
ion the main cover.
NOTE: Be sure the clamp holds the rope inside the
pocket on the cover end.
6" 1 0"
Top
Bottom
Before You Start
• 4 or more persons recommended to assemble
• Estimated assembly time = 3 hours
CAUTION!!!
Bungee Cords are under extreme tension. Use Caution
when installing. The use of safety glasses is
recommended to prevent injury.
Walls attach to unit by Bungee Cords. Thread bungee cord
through grommets in wall and wrap around pole. If using more
than one wall, attach all the walls at the top first, then work your
way around the unit wrapping the bungee cords through both
corners of the walls and legs.
ATTENTION:
FOR MISSING OR
REPLACEMENT PARTS
OR QUESTIONS,
PLEASE CONTACT
CUSTOMER SERVICE:
1.800.524.9970
