05_23545_D1Page 10
Grommet Panels for Bungees
Grommet
Panel
10066
802200

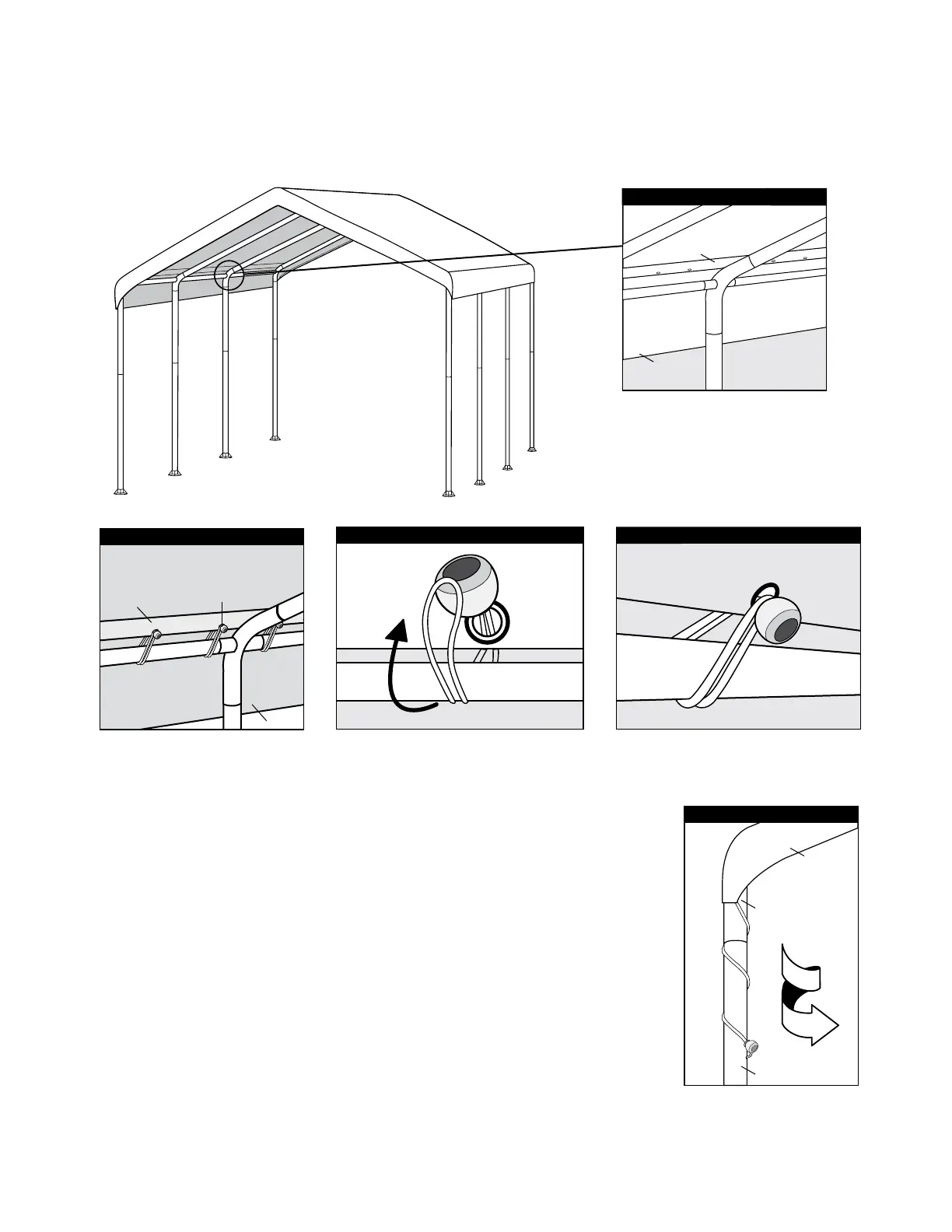

5. PLACE COVER AND SECURE TO CANOPY FRAME
A. Place cover over assembled roof frame with grommet panels facing down, aligned with cross rails.
B. Make sure the cover is properly aligned on the frame, secure the four corners of the cover with bungees
(10066) to the frame rst. Attach remaining bungees.
Re-adjust bungees position along cross pole as needed to ensure a tight and even t of the cover to the frame.
Secure Bungee Around Plastic Ball
Grommet Panels for Bungees
Grommet Panel
802200
Insert Bungee Cord Through Grommet Hole
6. TIGHTEN THE COVER WITH TWIST TITE
™
A. Wrap the cord with plastic ball and "S" hook at the corners of the cover
around the corner leg poles. Insert "S" hook into the hole of the corner
leg poles.
B. Twist each leg pole toward the inside of the shelter until the cover
becomes tight. Twist the leg poles equally to ensure the cover stays
aligned during tightening.
Twist-Tite
™
Tighten Cover
13105
10072
13101
