05_23545_D1Page 9

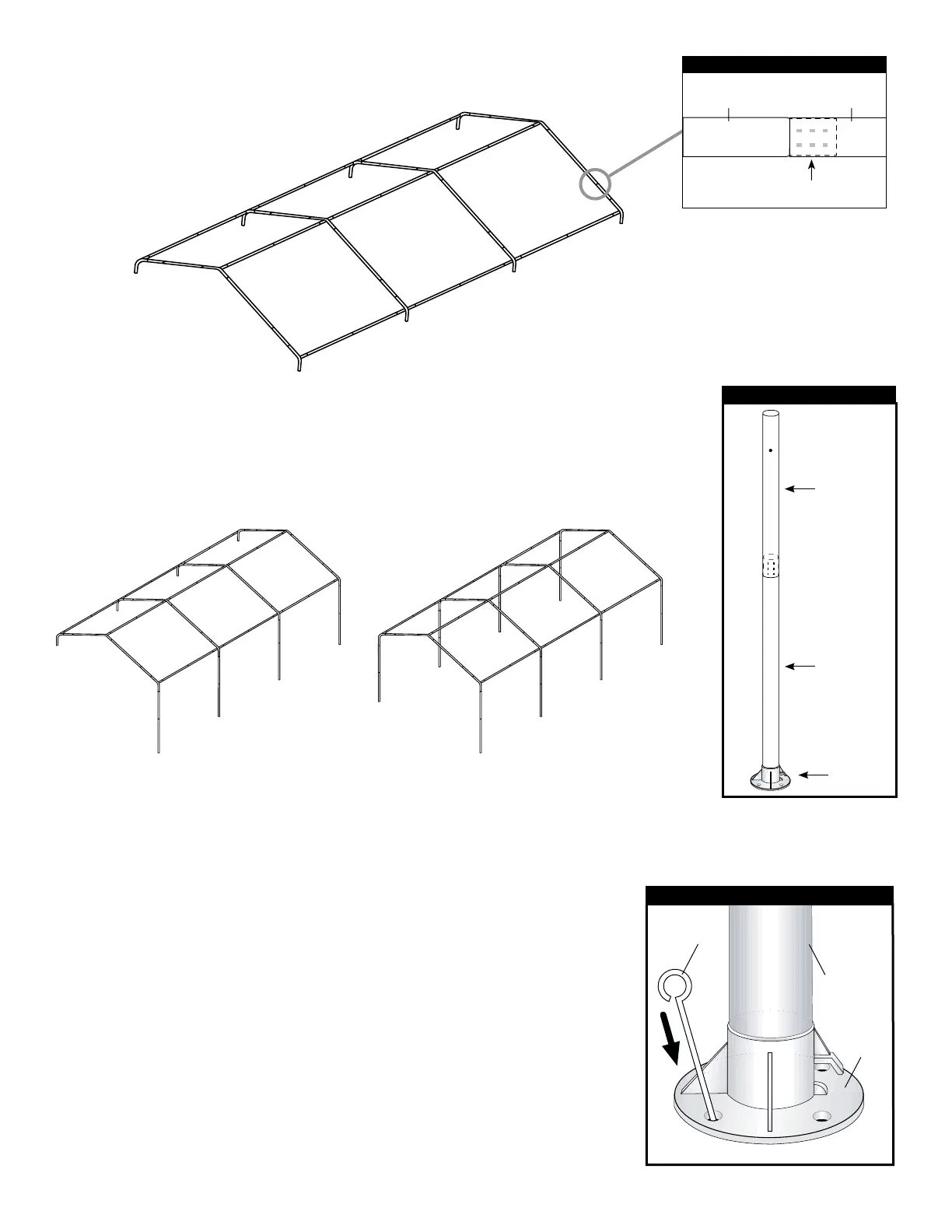

2. ASSEMBLE ROOF FRAME
NOTE: Swedged tubes insert into plain ends at the crimp marks.
3. ASSEMBLE LEGS & ATTACH TO ROOF FRAME
A. Attach all legs to one side rst. Let the other side of roof frame rest on the
ground. Repeat for opposite side.
4. ANCHOR THE FRAME
There are four holes on each base foot that the anchor can go into.
A. Select a hole in each base foot. Insert each anchor into the ground until
the round head is touching the base foot.
B. Insert one anchor into all eight base feet.
This is a temporary spike anchor. Not intended for permanent use.
Leg Pole Assembly
13105
13103
802916
Swedged Tubes Connections
13103
Crimp Marks
13104
13103
802916
10431
Anchoring Base Feet
To Next Page
