05_23532_29532_0FPage 4

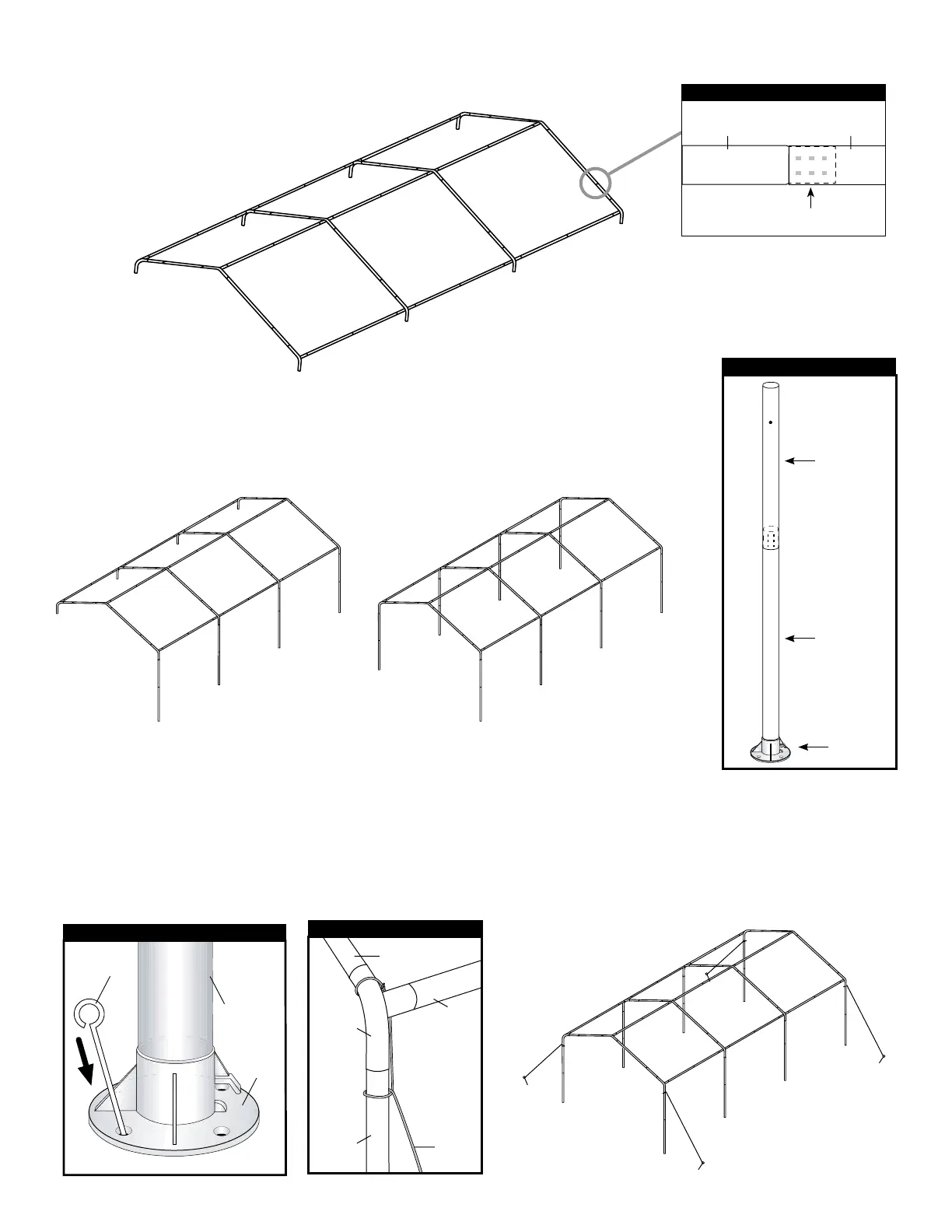

2. ASSEMBLE ROOF FRAME
NOTE: Swedged tubes insert into plain ends at the crimp marks.
3. ASSEMBLE LEGS & ATTACH TO ROOF FRAME
Attach all legs to one side rst. Let the other side of roof frame rest on the ground.
Repeat for opposite side.
4. ANCHOR THE FRAME
There are four holes on each base foot that the anchor can go into.
A. Select a hole in each base foot. Insert each anchor (10431) into the ground until the round head is touching the
base foot. These anchors prevent the canopy from shifting. Insert one anchor into all four base feet.
This is a temporary spike anchor. Not intended for permanent use.
B. To securely anchor canopy, Accessory Anchoring Kit #10073 is recommended. The 4-anchor pins are inserted
into the ground. Then the ropes are tied from the anchors to the corner tees as shown in B.
Tie Rope Around Frame Corners
13105
rope
13101
13104
13103
B
Leg Pole Assembly
13105
13103
802916
13103
802916
10431
Anchoring Base Feet
A
Swedged Tubes Connections
13103
Crimp Marks
13104
