Insert Bungee Cord Through Grommet Secure Bungee Around Plastic Ball
Grommet Panels for Bungees
Grommet
Panel
10066

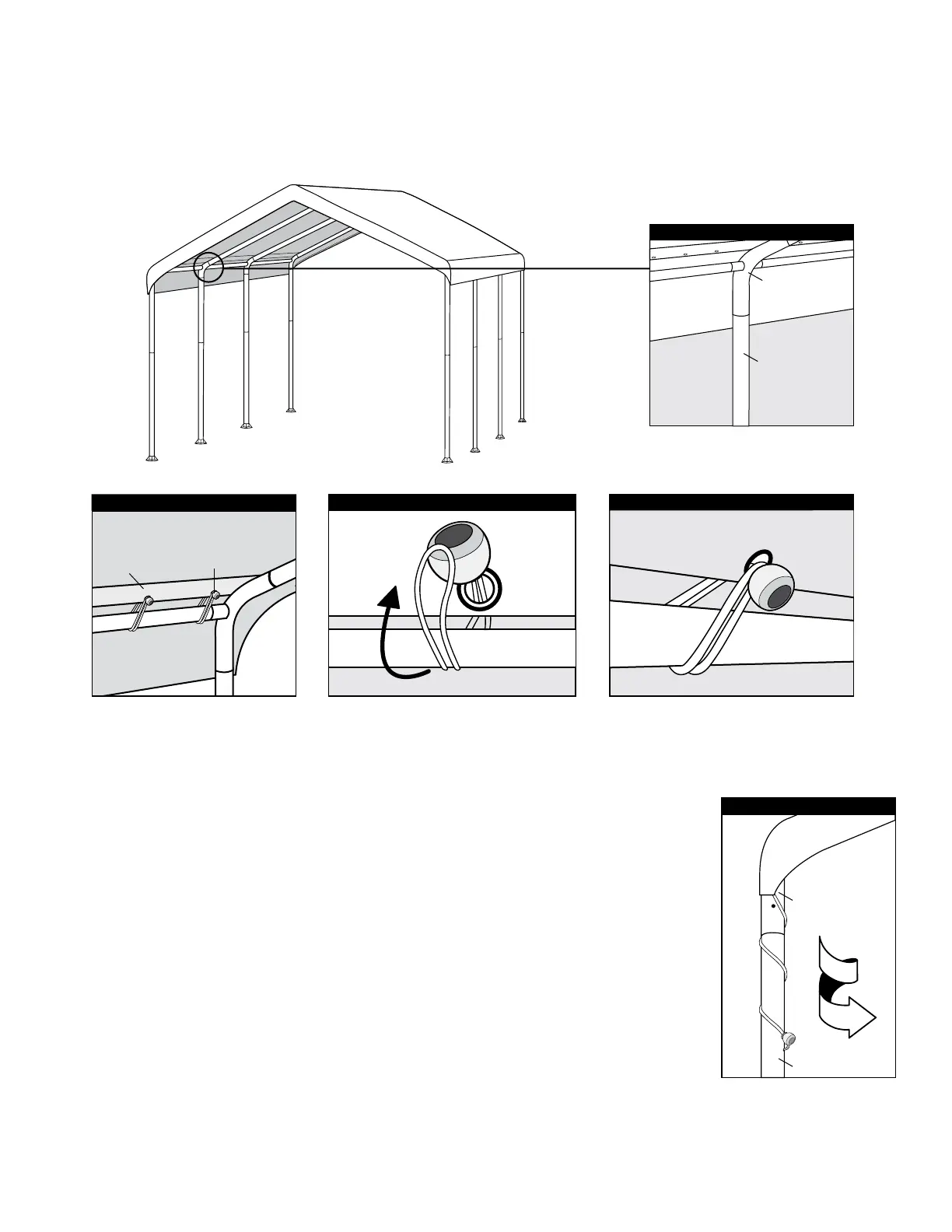

5. PLACE COVER AND SECURE TO CANOPY FRAME
A. Place cover over assembled roof frame with grommet panels facing down, aligned with cross rails.
B. Make sure the cover is properly aligned on the frame, secure the four corners of the cover with bungees
(10066) to the frame rst. Attach remaining bungees.
Leg Pole to Side Frame Connections
13102
13105
6. TIGHTEN THE COVER WITH TWIST TITE
™
A. Wrap the cord with plastic ball and "S" hook at the corners of the cover around the
corner leg poles. Insert "S" hook into the hole of the corner leg poles.
B. Twist each leg pole toward the inside of the shelter until the cover becomes tight
Twist the leg poles equally to ensure the cover stays aligned during tightening.
Twist-Tite
™
Tighten Cover
To Next Page
