COVER RAILS
A. Lay the cover on the ground next to the frame with inside of the cover (the side with the pipe pockets) facing
down and the webbing on the front and rear of the corner of the building.
B. Pull cover over the frame, making sure to center cover on frame. There should be an equal amount of over-
hang at all four corners.
C. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself.
D. Disassemble cover rails and slide through fabric pockets at each leg and reattach with clamps to each leg.
Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
E. Check and tighten Ratchets and Cover Rails monthly to ensure the cover is tight.
CORRECT
FRONT
REAR

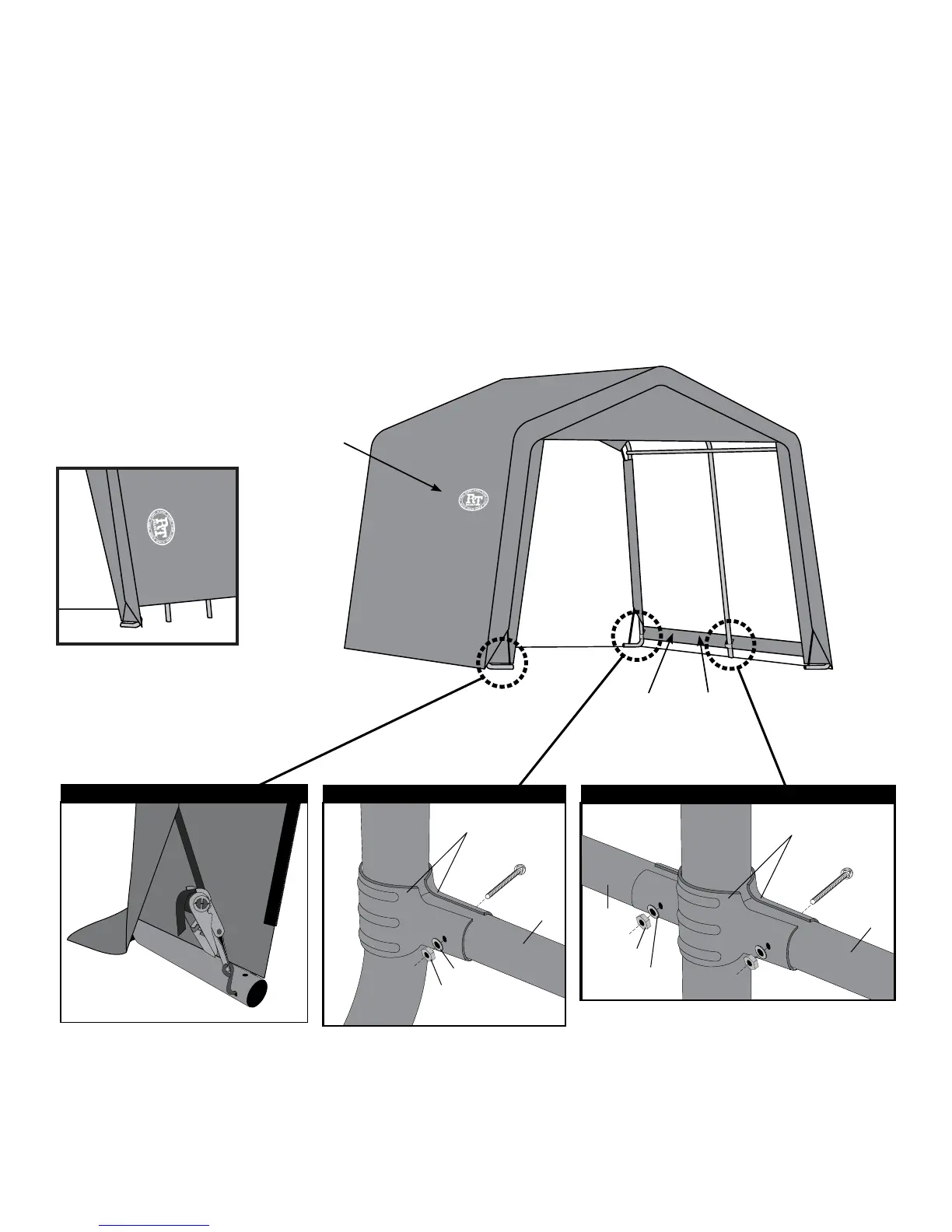

8. INSTALLING COVER AND COVER RAILS
Webbing and Ratchets Securing Cover
INCORRECT
NOTE: The RT Brand™ logo should
be oriented as shown below.
10115
13202
01011
01010
Corner
Leg
Cover
Rail
10115
Cover
Rail
13201
Middle
Leg
01010
01011
Cover
Rail
End Rib Cross Rail Clamps
Middle Rib Cross Rail Clamps
