05-70401-70402-70405-0HPage 5
800179
800178
800374
800361

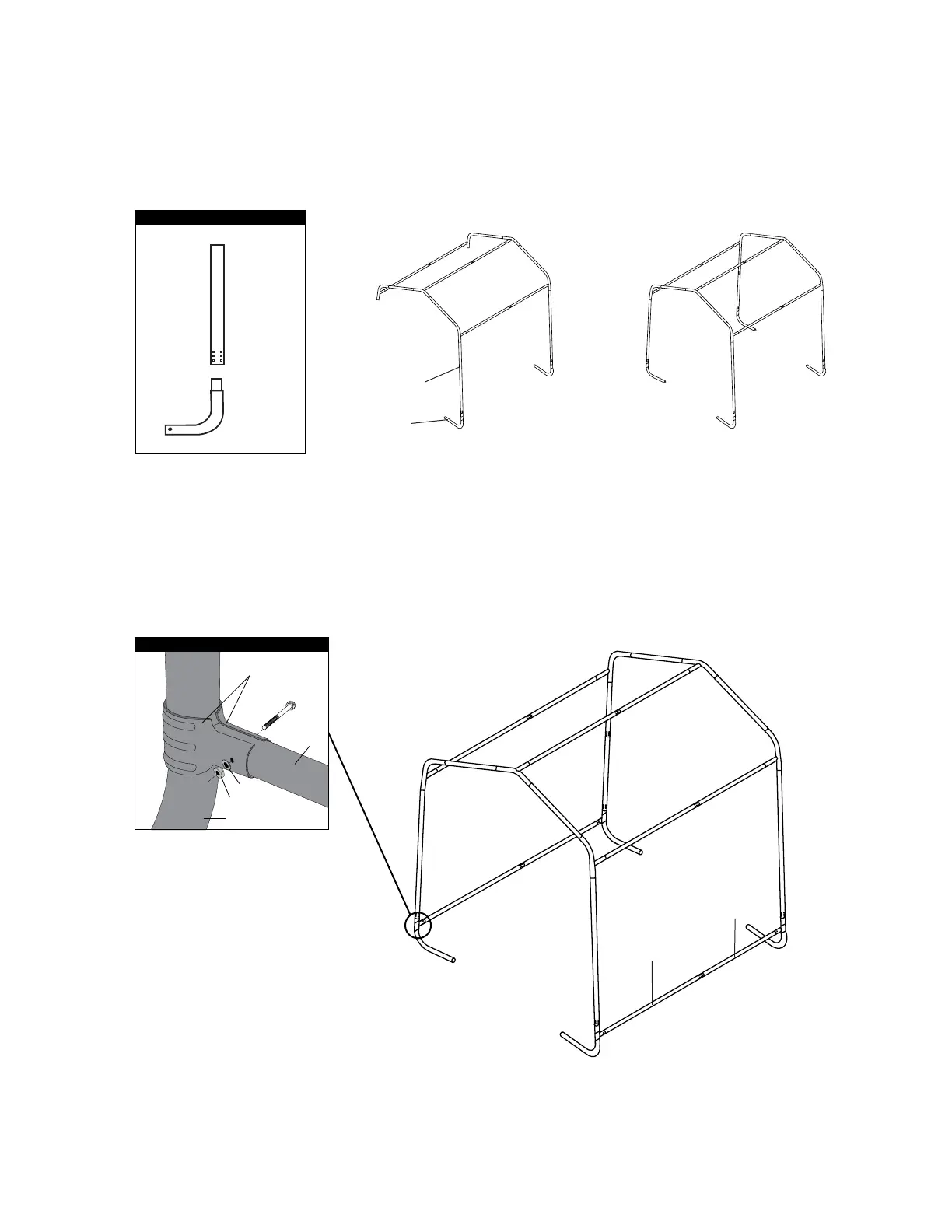

3. ASSEMBLE LEGS & ATTACH TO ROOF FRAME
4. ASSEMBLE COVER RAILS
A. Place the cover rail (800178, 800179) at each leg and secure it at each leg with a cover clamp as shown below.
B. Slide the cover rails so they are 8" up from the ground and hand tighten bolts on clamps.
800374
800361
Corner Legs
FRONT
REAR
A. Assemble corner leg bends to vertical poles for corner legs, then to roof frame.
B. Attach legs with bolts on one side of roof frame, let the other side of roof frame rest on the ground.
C. Attach remaining legs with bolts to opposite side of roof frame.
NOTE: No bolts are required for these connections.
End Rib Cross Rail Clamps
10115
800178
13202
800361
01011
01010
To Next Page
