Shenchen Pump LabV Series
In that interface, you can set the current date and time, it will display at the top right
corner. Click Set Date button, come out the Set year numeric keypad, the range of
the year is 1970-2099. After set up the year, then set the month and date.
Click Set Time button, come out the numeric keypad, set the hour, minute and
second.
4.11 Fixed Volume Measurement Interface

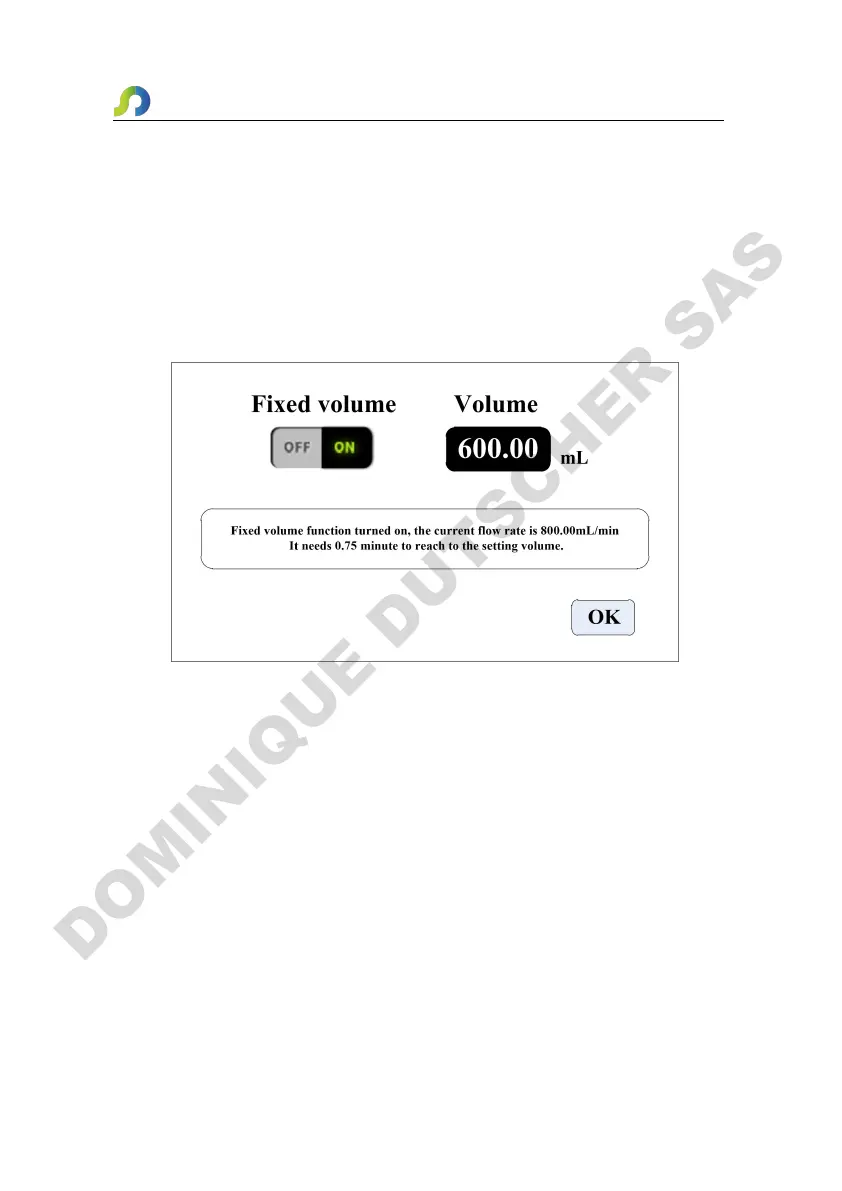

Fixed Volume Measurement Interface as below:
After turn on this function, the peristaltic pump will measure the volume
automatically, when set up volume finished, the pump will stop working
automatically. The flow rate can be changed during the pump working.
Click the Fixed Volume button, set ON to turn on this function. Click Set Volume,
to input volume, the unit can be mL or L, range is 0.01mL to 9999L. The prompting
frame display the needed time to finish the volume with set up flow rate. The
maximum time is 9999min, when more than 9999min, the system will warn.
