3-21
LUBRICATION AND MAINTENANCE

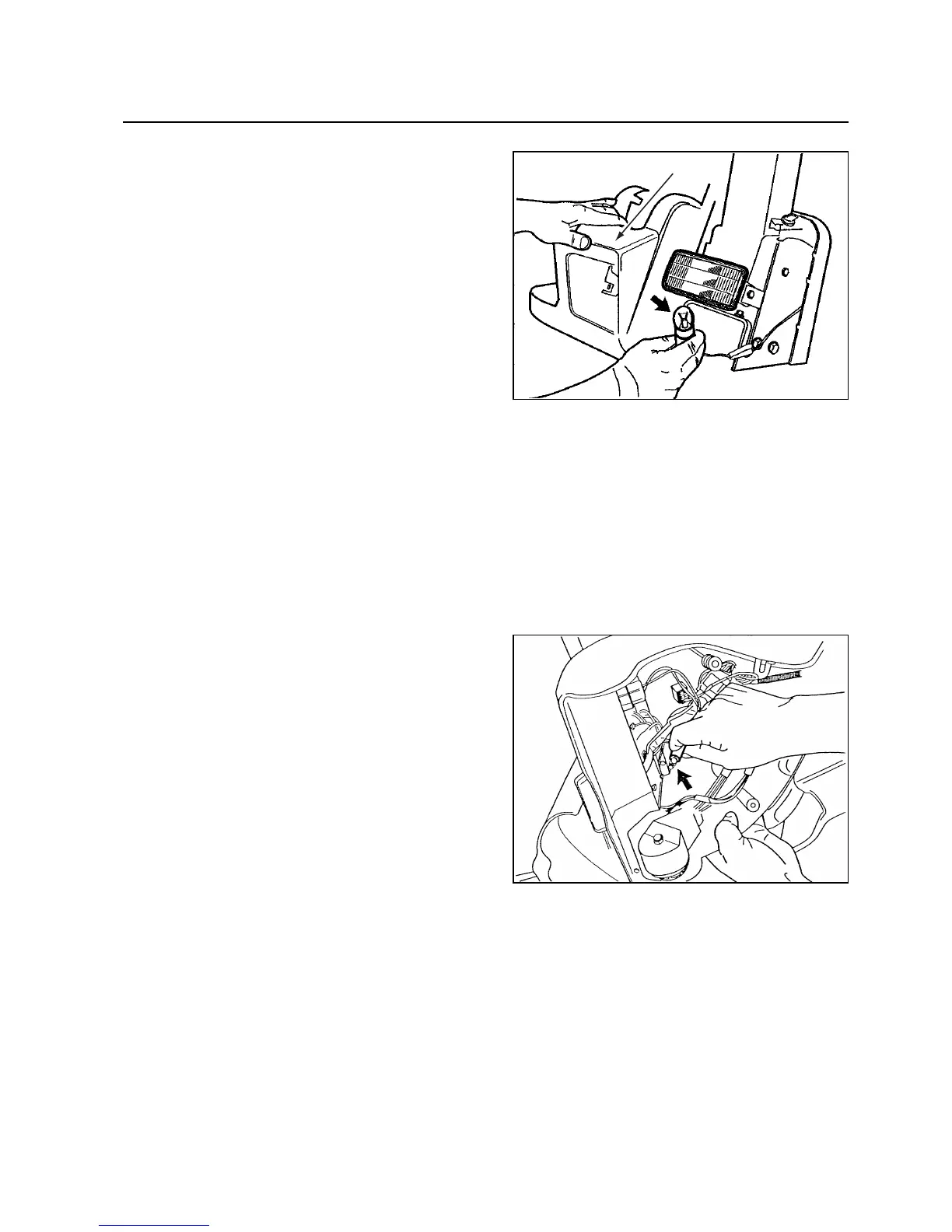

HEAD LAMP
If a head lamp fails to operate, the bulb must be
replaced. To change the bulb:
1. Pull out the lower cover A frontward and
remove it.
2. Turn the socket anti-clockwise and remove
the socket from the headlamp housing.
3. Remove the bulb.
4. Install a new bulb in the socket and install the
socket with bulb in the housing.
5. Install the front cover.
Head Lamp Bulb Type
JIS S25 BA15 12V 23W
(Part No. 385120700)
INSTRUMENT LIGHTS
To change a burned out instrument bulb:
1. Remove lower cover.
2. Remove 4 screws from the dashboard.
3. Remove the front cover of the dashboard.
4. Turn the bulb together with the socket half a
turn counterclockwise and pull it out.
5. Replace the bulb with new one and return the
valve and socket to the original place.
Indicator Bulb Type
(Q’ty 5) JIS T6.4 14V 3W
(Part No. 385470301)
(Q’ty 1) JIS T5 13.5V 2W
(Part No. 385470302)
