Shibaura ST321 - LIGHTING

CONTROLS, INSTRUMENTS AND OPERATIONS
10
LIGHTING
HAZARD FLASHER WARNING LIGHTS AND
COMBINATION SWITCH
Your SHIBAURA tractor is equipped with hazard
light, Figure 7. The light switch must be turned to
the “ON” position before the hazard light will oper-
ate.

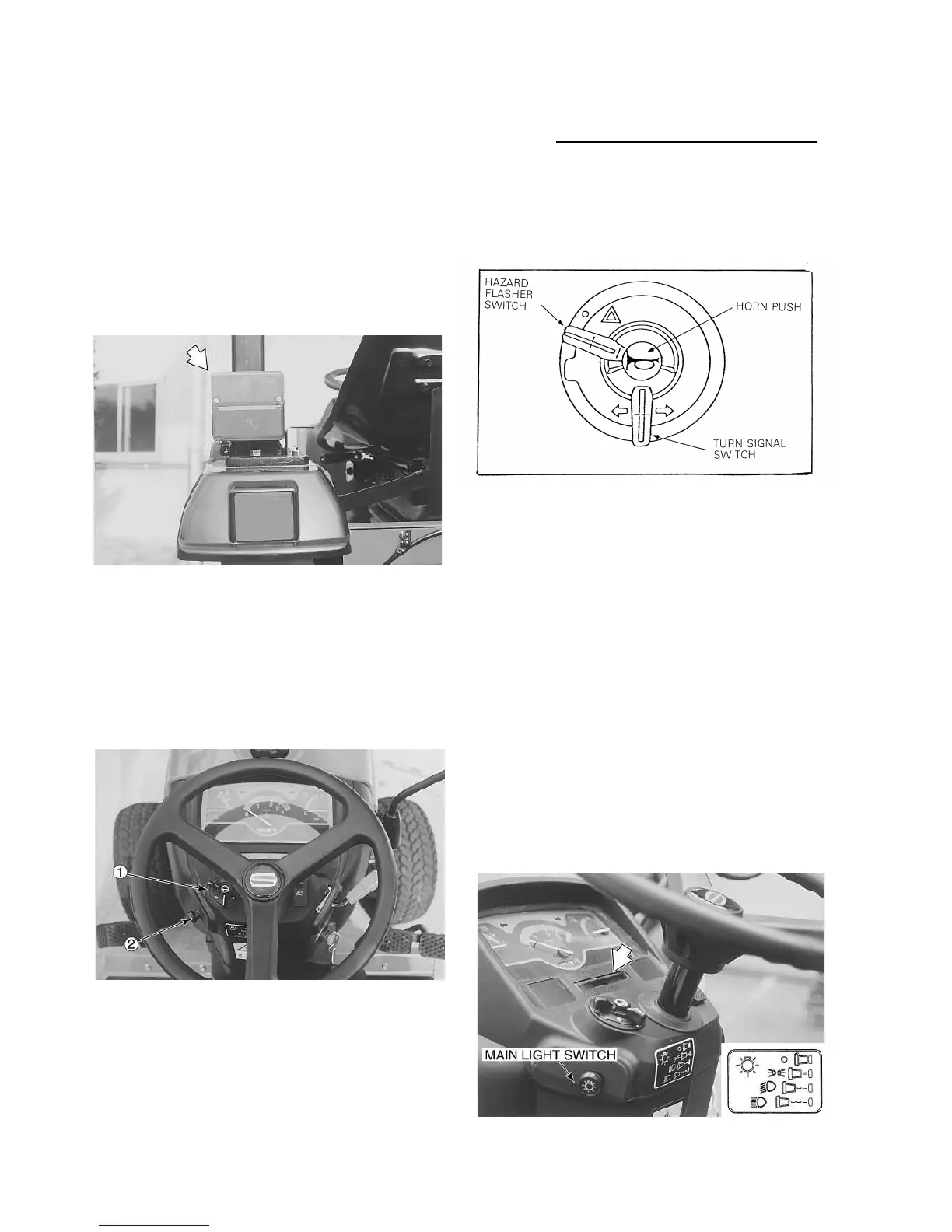

Figure 7 - Hazard Flasher and Turn Signals Lights
Lighting Switches
Your tractor is equipped with a combination switch
①,operating turn signals, hazard lights and the
horn. The main lighting switch ②, is mounted on
the left side of the instrument console.
Figure 8 －
－－
－ 1.Combination Switch, 2.Main Lighting
Switch
Combination Switch
The turn signal lights are activated by moving the
switch to the left or right as required. The turn sig-
nal switch is not self-canceling. To operate the
hazard function, move the hazard flasher switch,
clockwise to activate all four indicator lights.
Depressing the center button will sound the horn.
Figure 9 - Combination Switch
MAIN LIGHTING SWITCH
The main lighting switch, shown in Figure 10, is a
pull-push type switch. Its positions are :
1st position･･･････････････････････Lights “OFF”
2nd position･･････････Side and Tail Lights “ON”
3rd position･･････Side, Tail and Headlights “ON”
(Low Beam)
4th position･･････Side, Tail and Headlights “ON”
(High Beam)
Trailer Turn Indicator Light
The warning light, Figure 10, will flash in union with
tractor/trailer turn signals if trailer is attached.
