LUBRICATION AND MAINTENANCE
39
HYDRAULIC SYSTEM OIL FILTER
The hydraulic system is equipped with a spin-on
type oil filter, Figure 57. Replace the filter after the
first 50 hours of operation and every 300 hours
thereafter following the procedure below.
1. Unscrew the oil filter and discard.
2. Coat the gasket on the new filter with a film of oil.
Screw the filter into place until the gasket con-
tacts the sealing surface, then tighten the filter
approximate 3/4 of a turn by hand. Do not over
tighten
3. Start the engine and check the hydraulic oil filter
for leaks.
4. Stop the engine and check the hydraulic oil level.
Replenish if necessary.
H.S.T. SYSTEM OIL FILTER
The H.S.T. system is provided with an additional
cartridge oil filter, Figure 58. Change the cartridge
oil filter after the first 50 hours of operation and
every 300 hours thereafter.
Figure 58 - Hydraulic Oil Filter
LUBRICATION FITTINGS
The following lubrication points(refer to the Lubrica-
tion Chart, page 30 )require the application of a
good quality grease every 50 hours. In extremely
dirty conditions, lubrication should be more often.
Refer to page 33 for the type of grease that should
be used.
Pivot shaft
Pedal shaft, Clutch and Brake Pedals
3-point linkage
Front-wheel drive shaft(if so equipped)
H.S.T. foot pedal shaft(if equipped)
1. Wipe away all old grease and dirt from the
lubrication fittings to prevent dirt or foreign
material from entering the fittings when new
grease is applied.
2. Use a high pressure grease gun to force in the
new grease until clean grease oozes from the
assembly being lubricated.
3. Wipe away any excess grease.
GENERAL MAINTENANCE
COOLING SYSTEM
The cooling system in your SHIBAURA Tractor has
been filled with one year lift antifreeze.
To obtain maximum efficiency and service life from
the engine, it must operate at the correct tempera-
ture. This is dependent on the cooling system. The
system should be kept filled with a 50/50 solution of
permanent antifreeze and clear water.

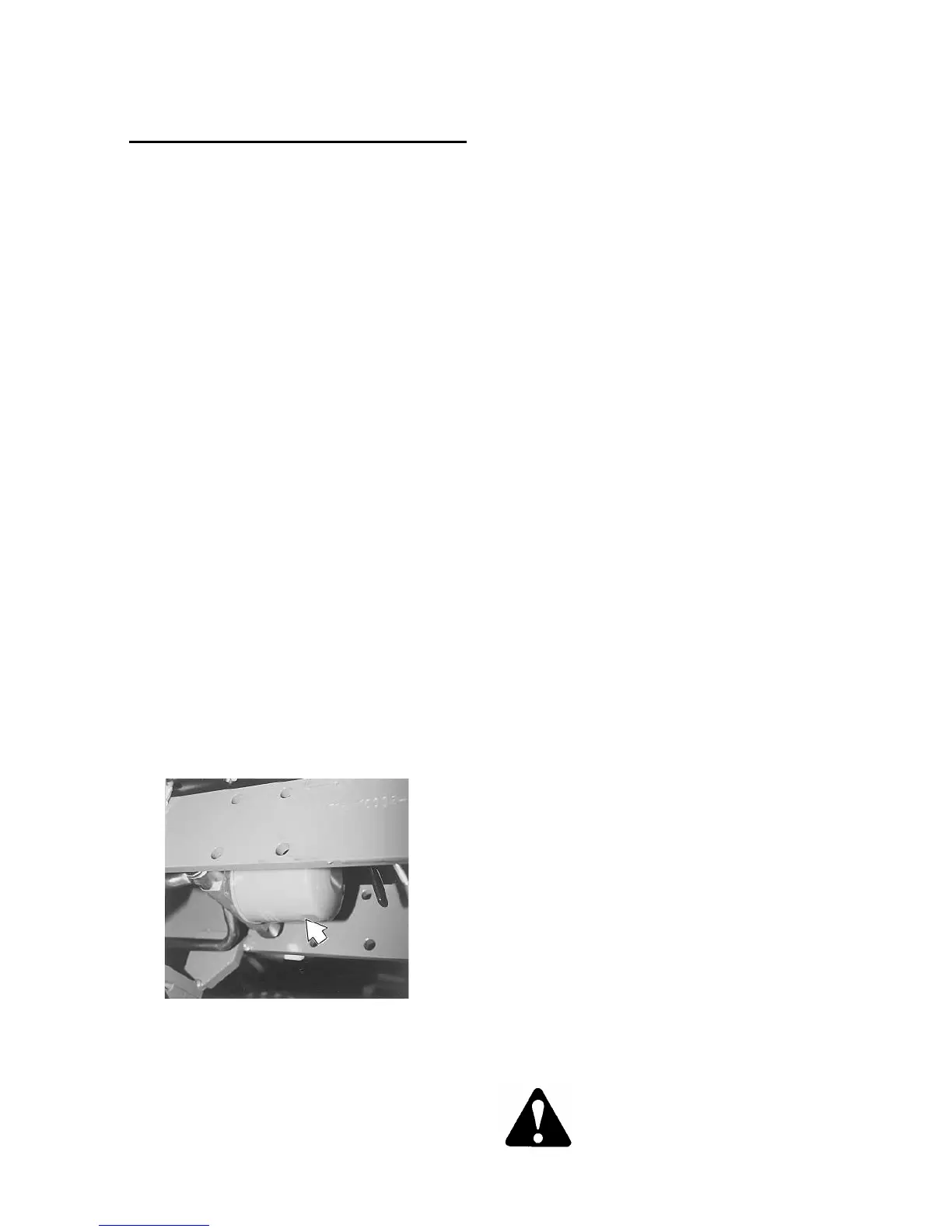

Checking Coolant Level：
：：
：Check the coolant level
on the coolant reservoir, Figure 58a, daily or every
10 hours. This check should be made when the
engine is stopped.
1. Remove the radiator cap and visually check the
level of the coolant.
WARNING：
：：
：The cooling system oper-
ates under pressure which is controlled
