CONTROLS, INSTRUMENTS AND OPERATIONS
16
BRAKE CONTROLS
BRAKE PEDALS
The brake pedals are shown in Figure 15. The right
brake pedal is used to brake the right rear wheel.
The left pedal is used to brake the left rear wheel.
Depress both pedals simultaneously to stop the
tractor.
To assist in making sharp turns at slow speed, de-
press the right or left brake pedals as required.
WARNING：
：：
：When operating the tractor
at high speeds, never attempt to make
sharp turns by using the brakes.
BRAKE PEDAL LOCK
The brake pedal lock, shown in Figure 15, is used
to secure the brake pedals together.
Lock the pedals together whenever the tractor is
operated at high speeds and at any time the tractor
is used on the highway.

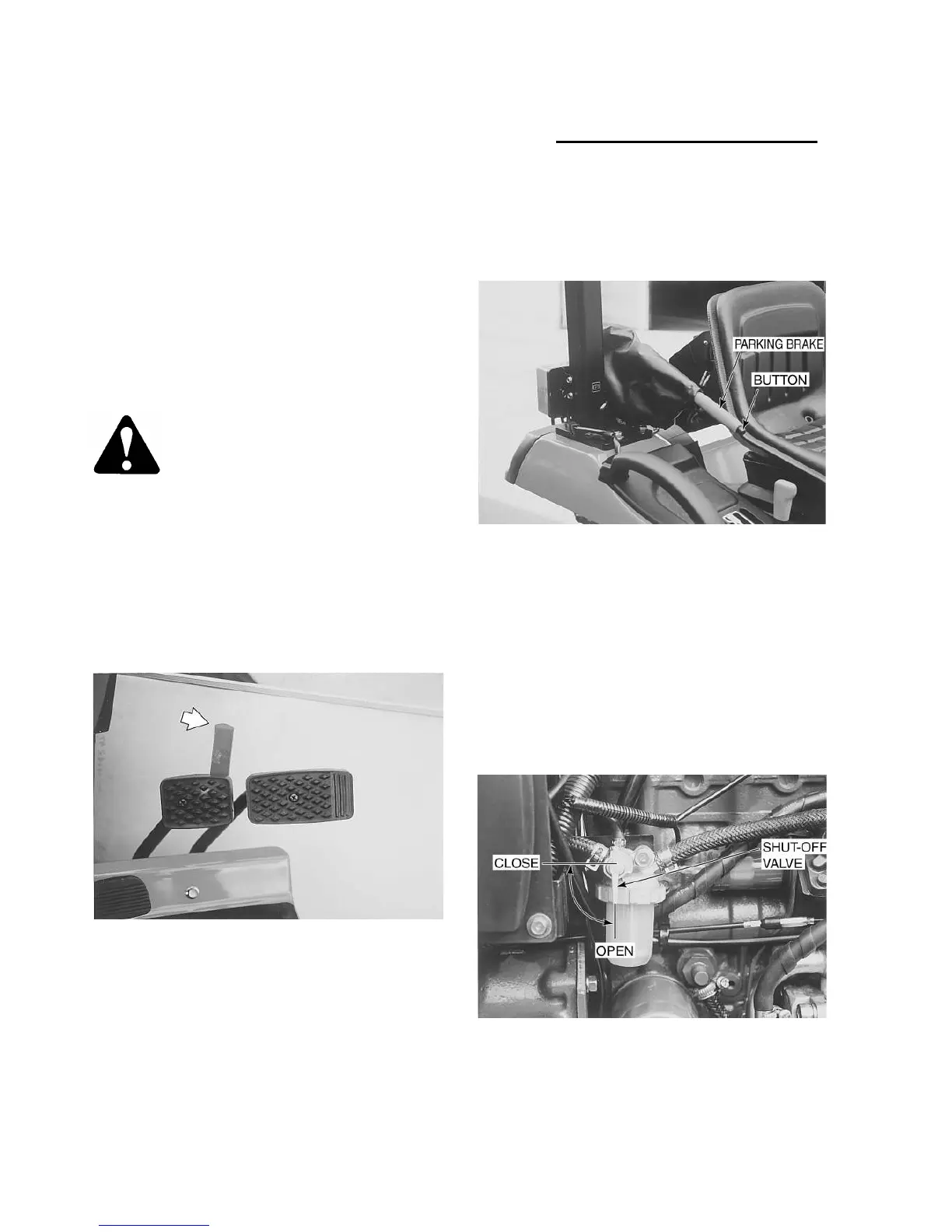

Figure 15 - Brake Pedal Locking
PARKING BRAKE CONTROL
The parking brake, shown in Figure 16, is used for
locking the brake pedals in the applied position.
The parking brake should be applied whenever the
tractor is parked.
Figure 16 - Parking Brake Control
FUEL SHUTOFF VALVE
The fuel shutoff valve is shown in Figure 17.
To open the fuel shutoff valve, move the handle so
that it points straight up and down.
To close the fuel shutoff valve, move the handle to
the horizontal position. Always shut off the valve
when servicing any portion of the fuel system.
Figure17 - Fuel Shutoff Valve
