LUBRICATION AND MAINTENANCE
38
TRANSMISSION, REAR AXLE AND
HYDRAULIC SYSTEM
Checking Oil Level：
：：
：Check the oil level every 50
hours.
1. With the tractor standing level and the engine off,
check the oil level with the dipstick, Figure 55.
2. The oil is at the correct level when the oil level is
between the mark and the lower end of the dip-
stick. If low, add new oil of the type specified,
page 33.
The filler plug is shown in Figure 56.
Do not fill beyond the mark on the stick, as the
transmission will be overfilled.
3. Install the filler plug and dipstick.

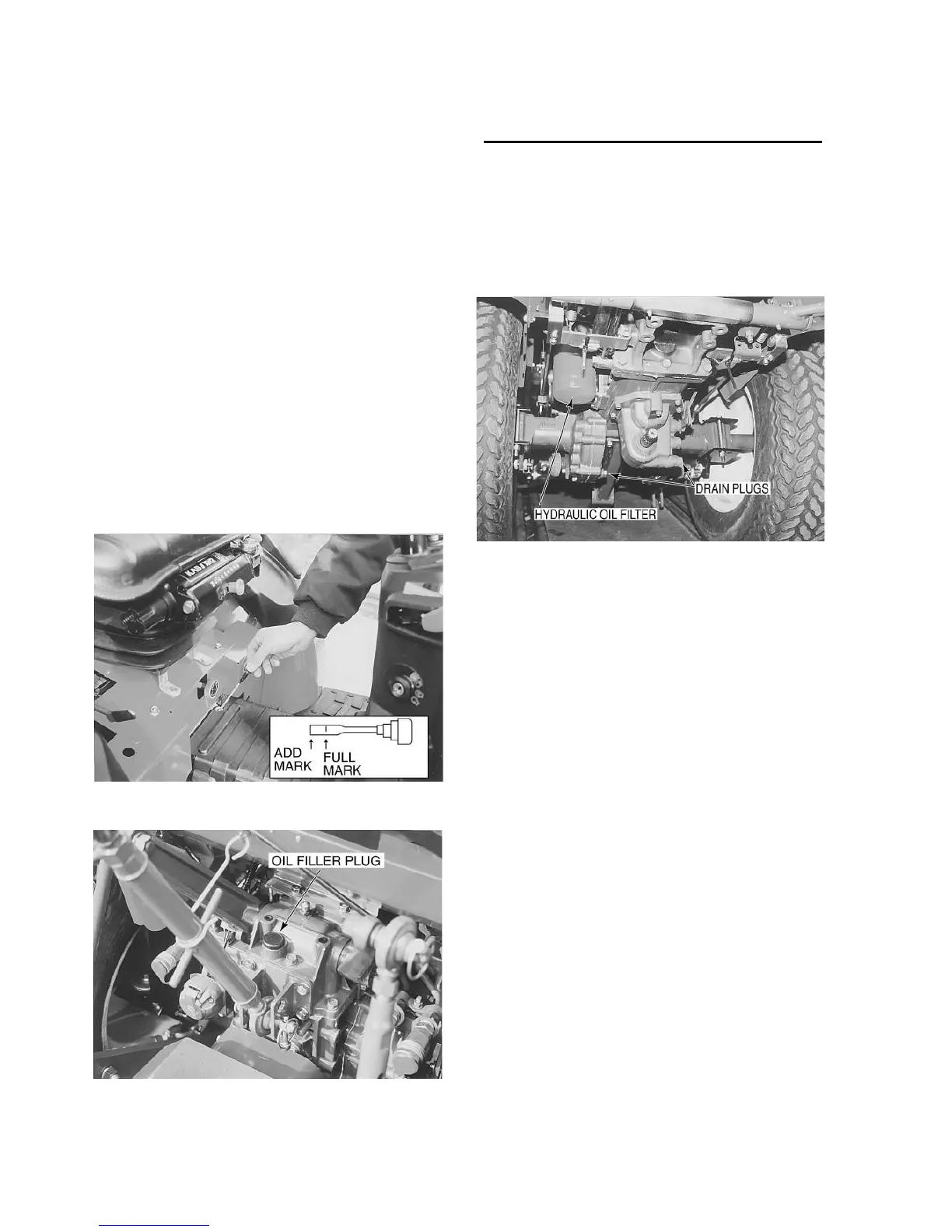

Figure 55 -Transmission,Rear Axle and Hydraulic
System Oil Level Dipstick
Figure 56 -Transmission, Rear Axle and Hydraulic
System Oil Filler Plug
Changing Oil：
：：
：Change the oil every 300 hours.
1. With the oil at normal operating temperature,
drain and discard the oil by removing the trans-
mission, rear axle center housing and rear axle
drain plugs, Figure 57. Reinstall the plugs after
the oil has drained. Discard the oil.
Figure 57-Transmission,Rear Axle Center Housing
and Rear Axle Oil Drain Plugs
2. Check and if necessary clean or replace the
hydraulic oil filter.
3. Remove the filler plug, Figure 56 and dipstick,
Figure 55, and fill with new oil of the type speci-
fied, page 33.
4. he transmission is filled to the correct level when
the oil level is between the mark and the lower
end off the dipstick. Do not fill beyond the mark
on the stick, as the transmission will be over-
filled.
5. Install the dipstick and filler plug.
IMPORTANT ：
：：
： The transmission, rear axle and
hydraulic system operate from a common oil sump.
Special attention must be given to keeping oil clean.
