LUBRICATION AND MAINTENANCE
48
IMPORTANT: Always replace the fusible link wire
with the appropriate fusible link wire for this tractor.

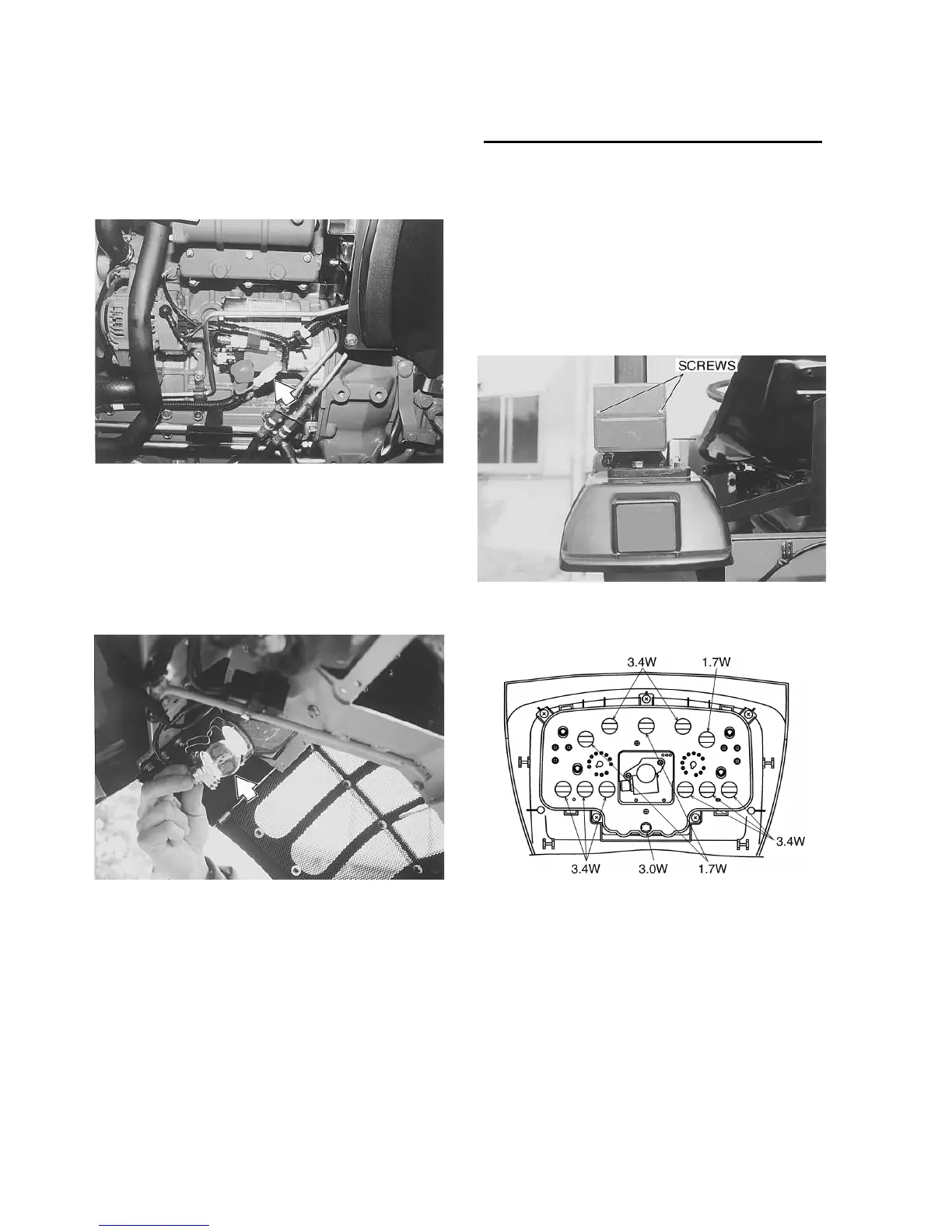

Figure 73 - Fusible Link Wire
HEADLIGHT
Should a headlight failure occur, the bulb must be
replaced. To change the bulb :
Figure 74 - Headlight Socket
1. Pull up the connector and socket from the hous-
ing, Figure 74.
2. Take off the spring.
3. Remove the bulb.
4. Install a new bulb and install the spring, socket
and connector.
TAIL LAMP AND FLASHER WARNING LIGHTS
To replace a tail lamp bulb or flasher warning light
bulb :
1. Remove the lens, then remove the bulb.
2. Install a new bulb and reinstall the lens and/or
rim assembly.
Figure 75 - Tail Light and Flasher Warning Lights
INSTRUMENT LIGHT
Figure 76 - Instrument Panel Warning Lights
To change an instrument bulb :
1. Remove the instrument panel.
2. Pull out lens-cover by removing the stay.
3. Replace bulb.
4. Install the lens-cover and fix the instrument
panel.
