Appendix I

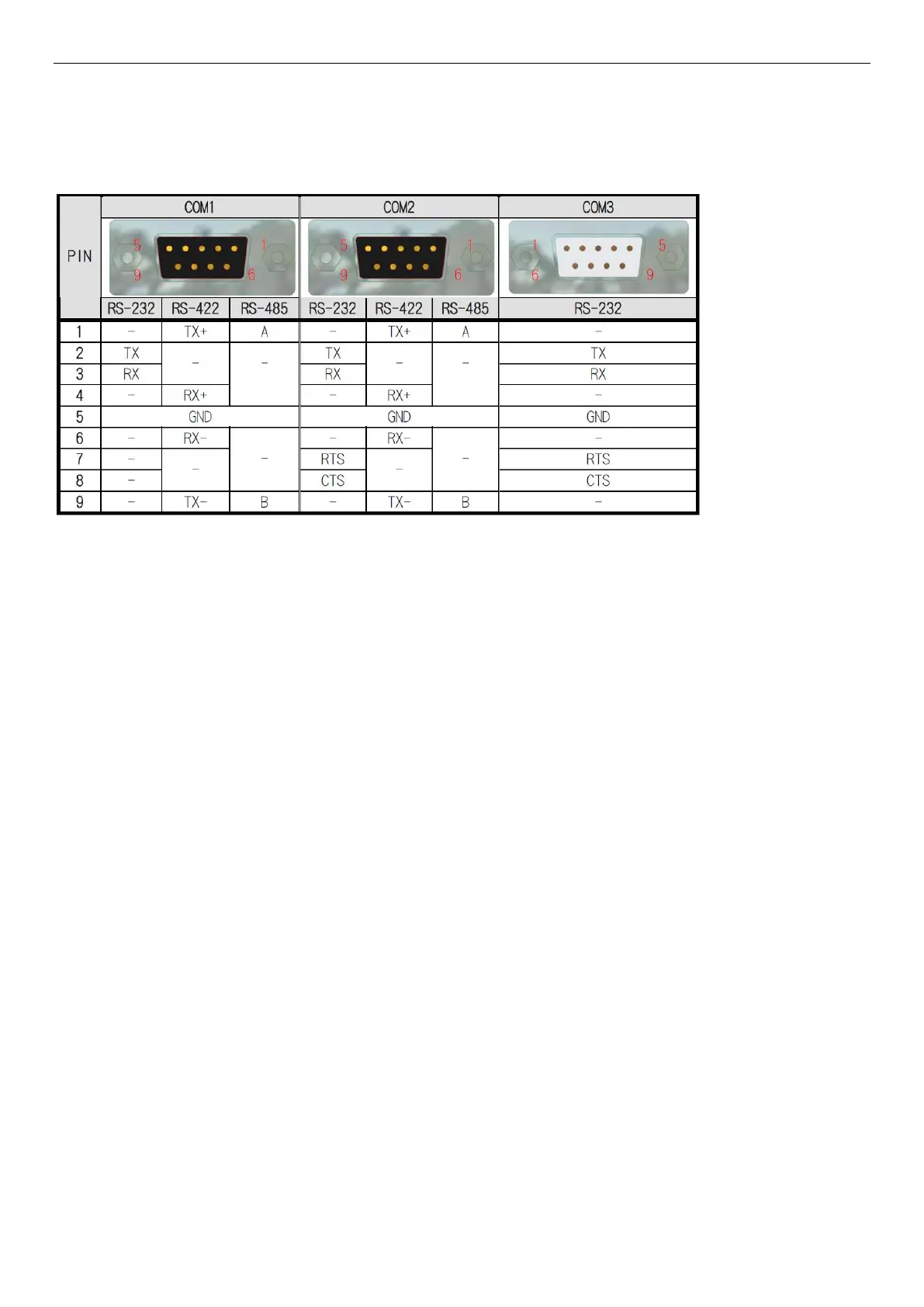

The embedded PLC can be used with Shihlin's HMI to read PLC ladder diagrams and instruction lists, modify instruction
lists, and monitor PLC operation. The figure below shows the RS232, RS422 and RS485 pin definitions of Shihlin HMI serial
port.
