Chapter 4 Operating Panel
4-3
4.2 Test Display Screen

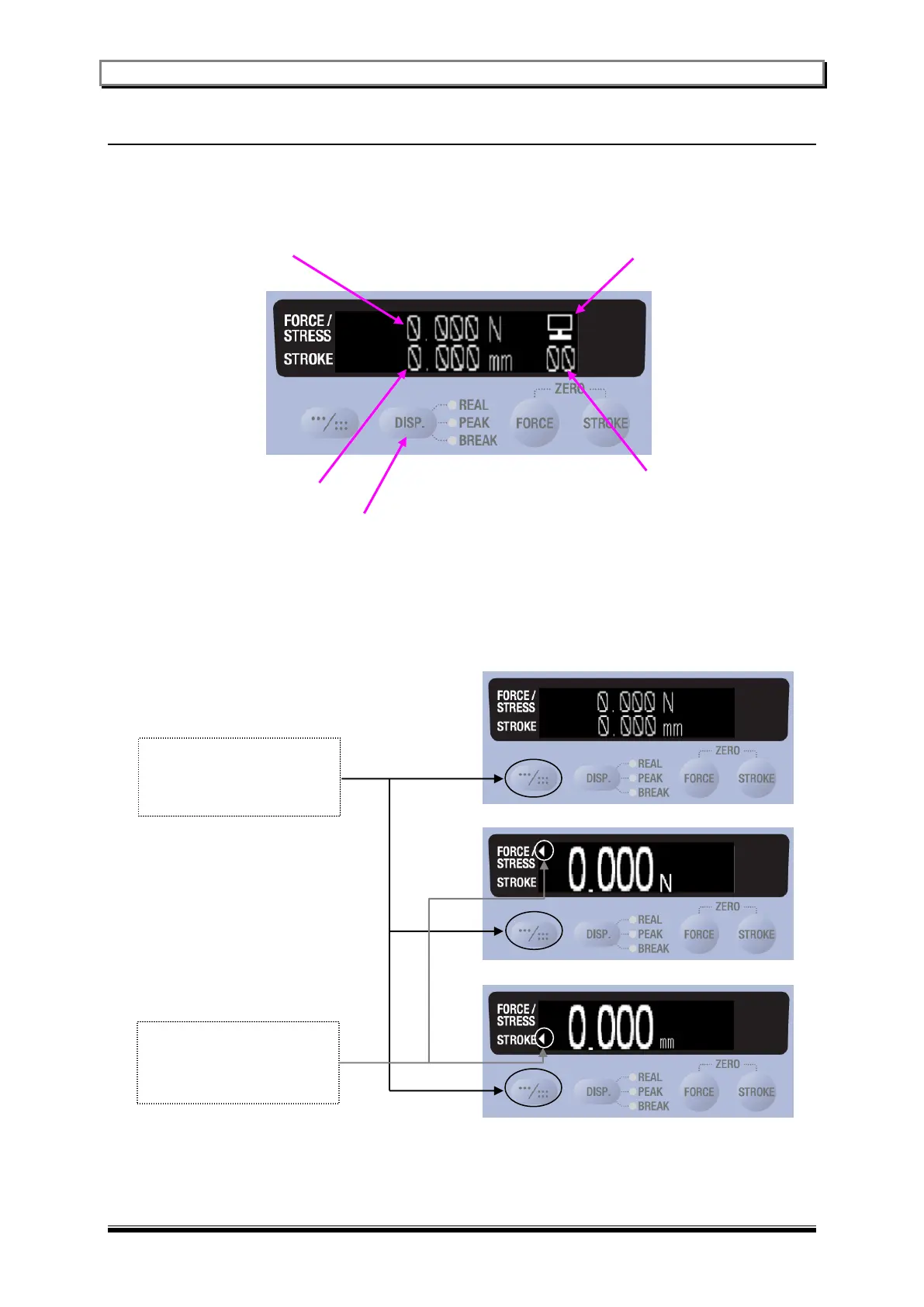

Displays the test force and stroke during tests. It also indicates whether or not the computer is
connected and file numbers as well.
The numeric display can be switched between 1-line and 2-line modes.
Selected File Number
(Does not appear if no file is
selected.)
Display Mode Button
The [DISP.] button changes the display
mode in the sequence [REAL] (current
real-time) value → [PEAK] value→
[BREAK] value each time it is pressed.
Display Mode Button
The display mode changes
each time the button is
pressed.
Selection Icon
In 1-line display mode, this
icon points to the type of data
currently being displayed.
To Next Page
