■ Lenses Without an Aperture Ring
If using a lens without an aperture ring, use the dial on the front of the camera head to
adjust the aperture.

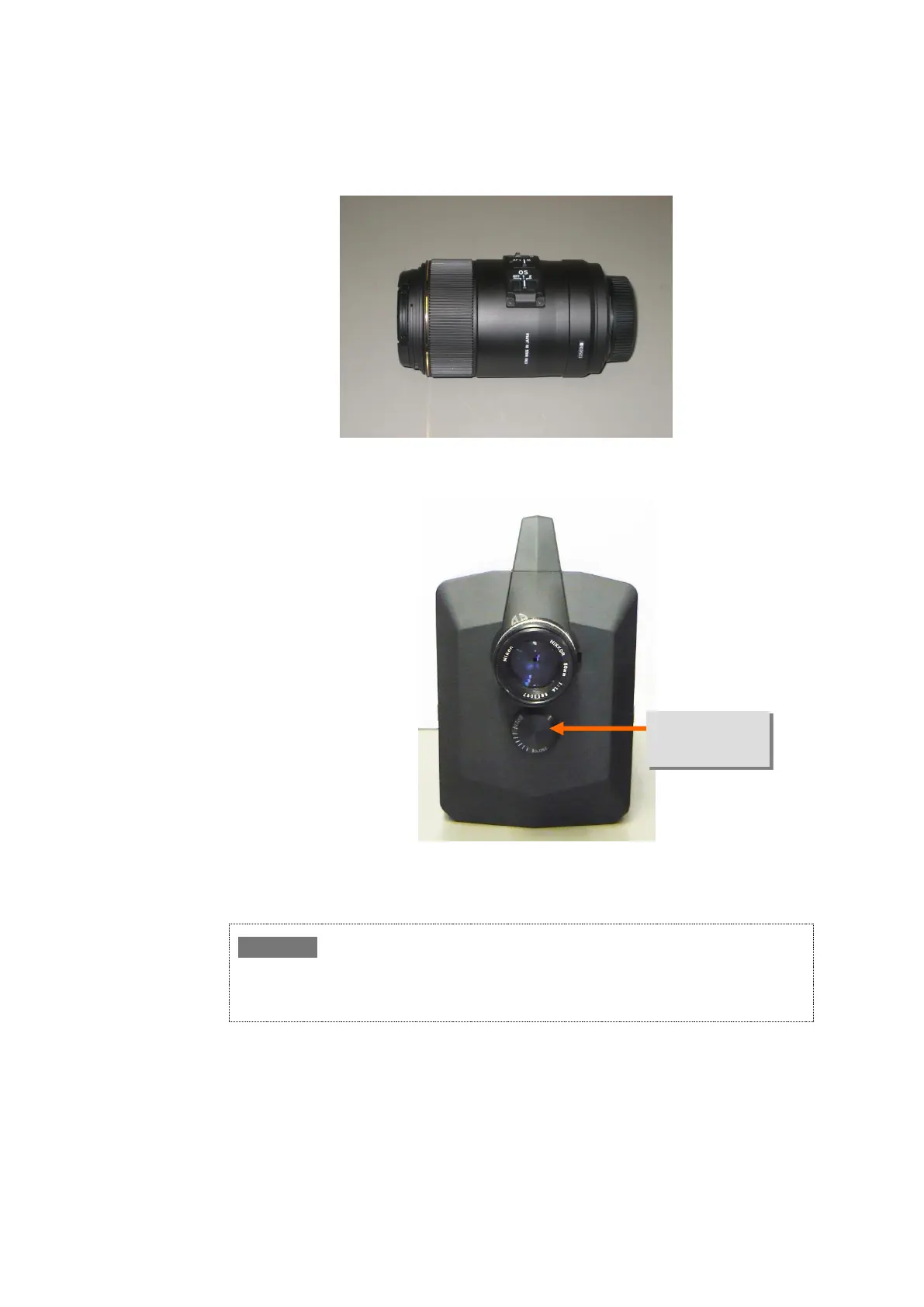

Fig. 4-10 Lens without Aperture Ring
Fig. 4-11 Aperture Dial
The process of adjusting aperture is the same for the aperture dial and ring. However, note that the
markings only provide a guideline and do not ensure that the amount of incident light is adjusted
accurately.
✐ Note
Adjust the aperture
using the aperture
dial.
