HPV-X2
Preparations for Operation
■ Lenses with an Aperture Ring
If using a lens with an aperture ring, align the aperture dial on the front of the camera head
to [CLOSE] and use ring on the lens to adjust the aperture.

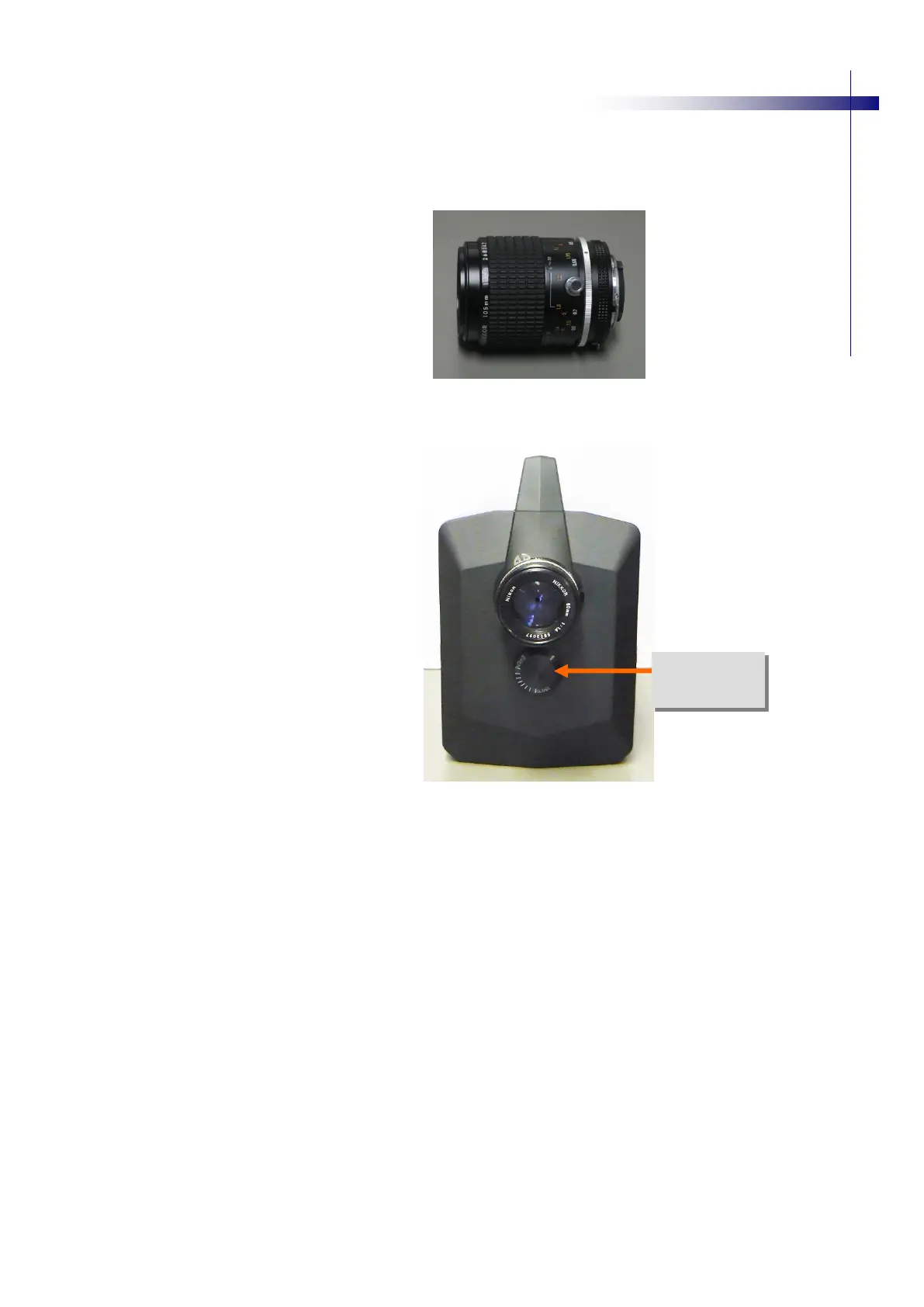

Fig. 4-8 Lens with Aperture Ring
Fig. 4-9 Aperture Dial
Turn the aperture
dial to [CLOSE].
