E6000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT

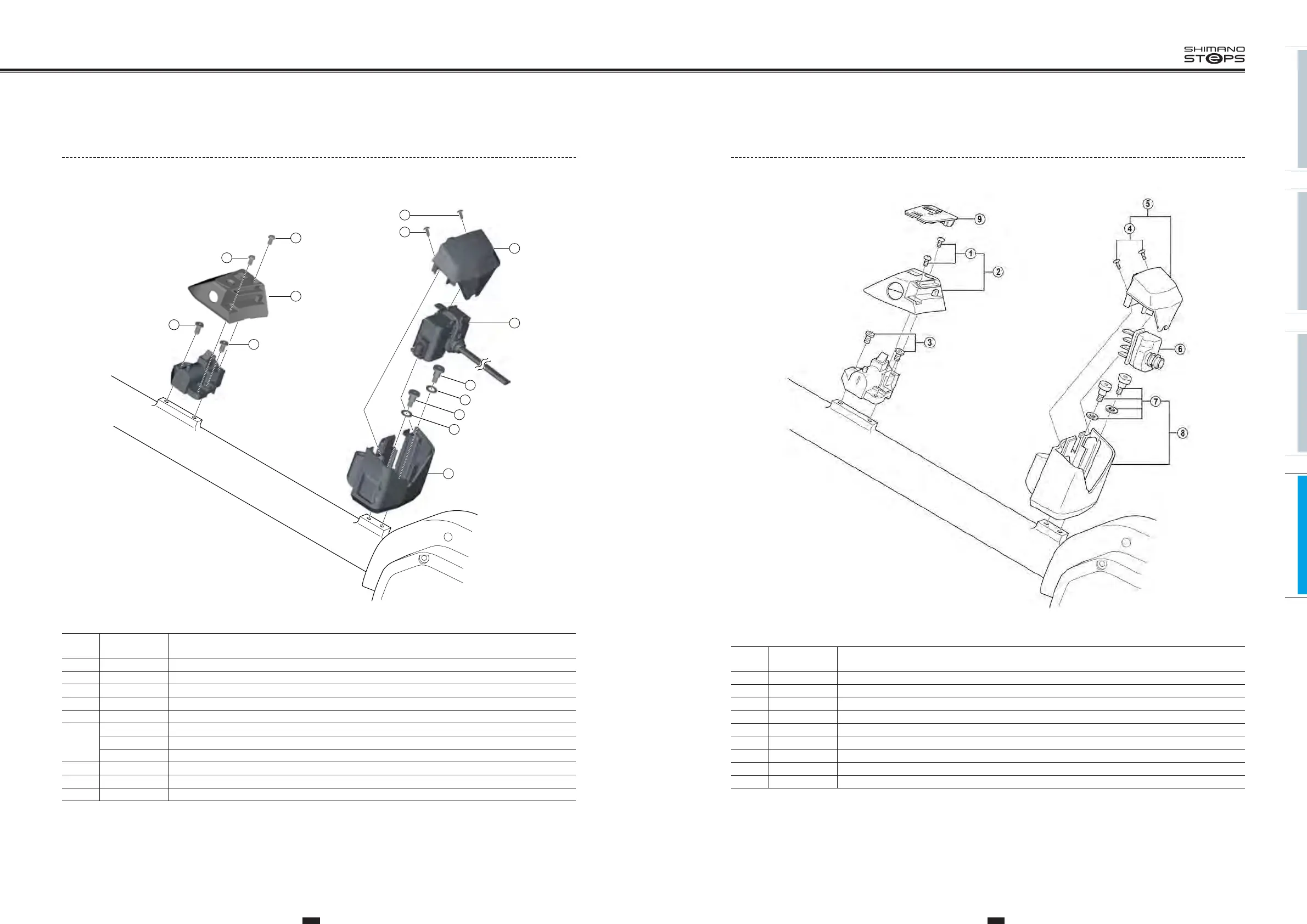

BM-E6010
Battery Mount
Battery Mount
BM-E6010
SHIMANO
CODE NO.
DESCRIPTION
1 Y71B00002 M4 BOLT
2 Y71B00003 KEY UNIT COVER ASSY
3 Y71B00004 M5 BOLT
4 Y71B00005 M3 BOLT
5 Y71B00006 UPPER CASE ASSY
* Y71B00011 HARNESS ASSY (250 mm)
Y71B00007 HARNESS ASSY (300 mm)
* Y71B00012 HARNESS ASSY (600 mm)
7 Y71B00009 HOLDER FIXING BOLT
8 Y71B00008 RUBBER WASHER
9 Y71B00010 LOWER CASE ASSY
Feb.-2017-3525B
© Shimano Inc. I
Specifications are subject to change without notice.
ITEM
NO.
6
1
7
8
7
8
5
9
6
3
1
4
4
2
3
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y71B00002 M4 BOLT
2 Y71B00003 KEY UNIT COVER ASSY
3 Y71B00004 M5 BOLT
4 Y71B00005 M3 BOLT
5 Y71B00006 UPPER CASE ASSY
*
6
*
Y71B00011 HARNESS ASSY (250 mm)
Y71B00007 HARNESS ASSY (300 mm)
Y71B00012 HARNESS ASSY (600 mm)
7 Y71B00009 HOLDER FIXING BOLT
8 Y71B00008 RUBBER WASHER
9 Y71B00010 LOWER CASE ASSY
Feb.-2017-3525B
© Shimano Inc. I
SM-BME61
Battery Mount
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y70N98010 Key Unit Cover Fixing Bolt (M4)
2 Y70N98020 Key Unit Cover & Fixing Bolt (M4)
3 Y70N98030 Key Unit Fixing Bolt (M5)
4 Y70N98040 Mount Upper Case Fixing Bolt (M3)
5 Y70N98050 Mount Upper Case & Fixing Bolt (M3)
6 Y70N00014 Plug
7 Y70N98060 Mount Fixing Bolt (M5) & Washer
8 Y70N98070 Mount Lower Case Unit
9 Y70N00018 Battery Rattle Prevention Spacer
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Nov.-2015-3814B
© Shimano Inc. H
