Installation/removal
Installing the cycle computer/junction [A]

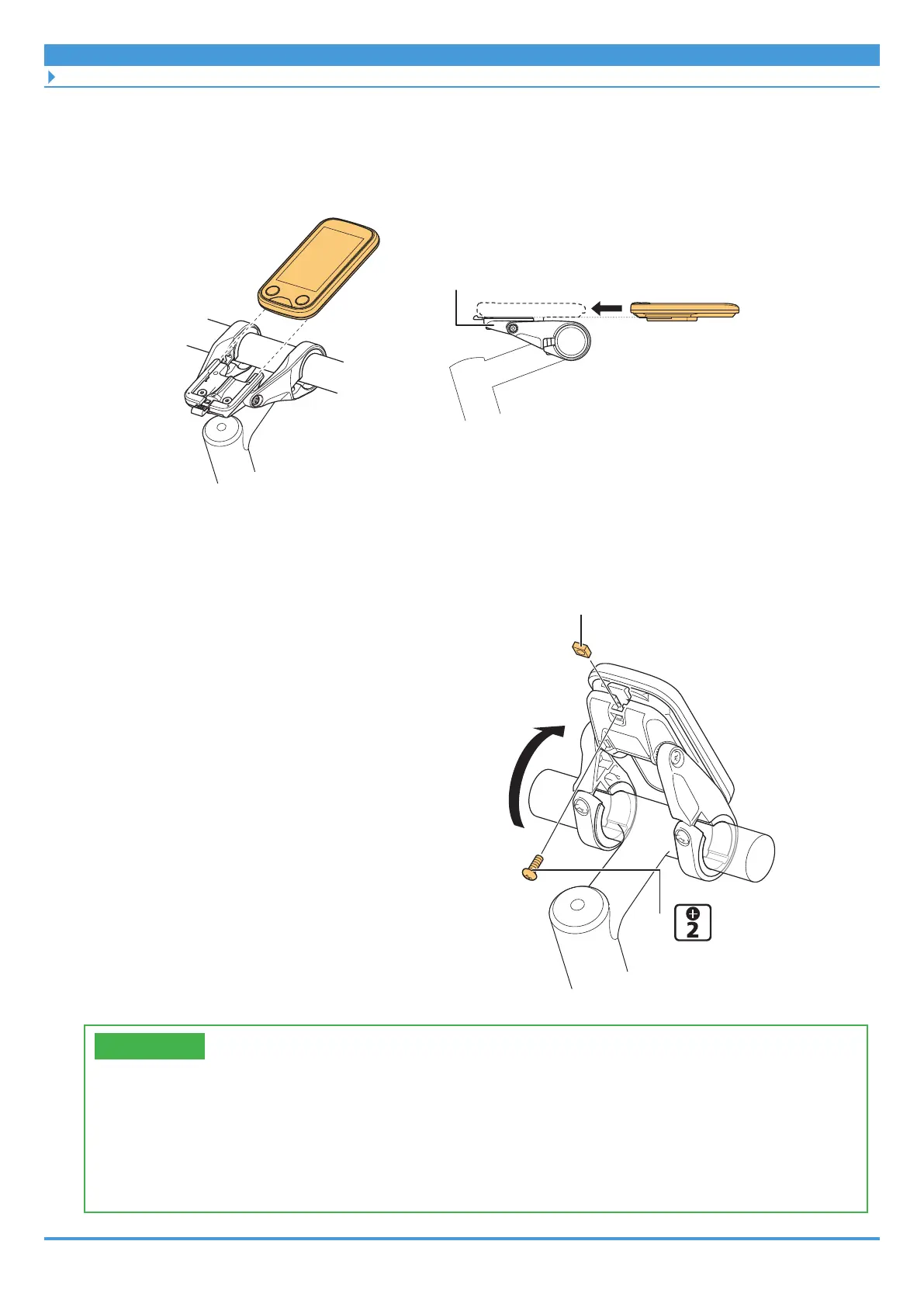

4. Install the cycle computer to the bracket.
Slide the cycle computer and install it to the bracket.
Insert it firmly until you hear it click.
Bracket
5. Secure the cycle computer to the bracket if necessary.
If the cycle computer will not be secured to the bracket, this step is not necessary.
(1) Stand the cycle computer and bracket
up on the stem (as though you are
turning the cycle computer around).
(2) Insert the square nut into the bracket.
(3) Tighten the mounting bolts.
Mounting bolt
(3)
0.4 - 0.5 N·m
TECH TIPS
• This procedure is used to secure the cycle computer to the bracket, so that it
cannot be easily removed. This is useful for displaying the product on a sales
floor.
• Ask the customer if they will secure the cycle computer when the product is
delivered. If necessary, explain how to do so (as described above).
