INSTALLATION
Disc brake mount adapter (for 180mm disc brake rotors)
INSTALLATION
*
Refer to the Disc Brake section of General Operations for how to install the brake caliper, brake lever, and disc brake rotor.
Disc brake mount adapter (for 180mm disc brake rotors)
SM-MA-F180P/P2

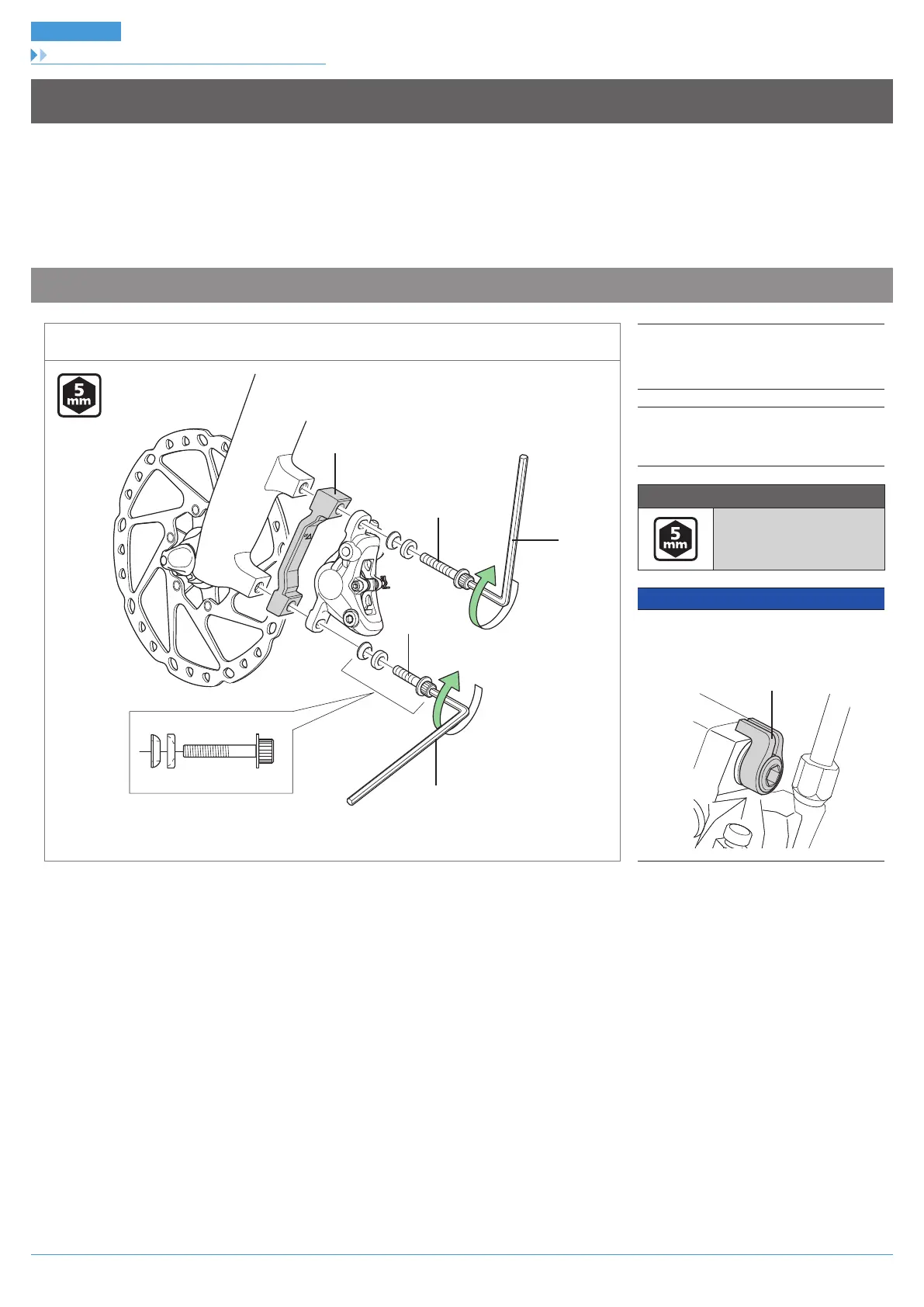

Place the adapter onto the brake caliper, and then install the adapter to the frame.
(y)
Long
(z)
Short
(A)
Mount adapter
(B)
5mm hexagon wrench
Tightening torque
6 - 8 N·m
NOTE
When installing the brake caliper fixing bolts,
be sure to attach the caps to prevent the bolts
from coming off.
Cap
(y)
(z)
(A)
(B)
