INSTALLATION
Disc brake rotor adapter

Disc brake rotor adapter
SM-RTAD05
(C)
(D)
(E)
(A)
(B)

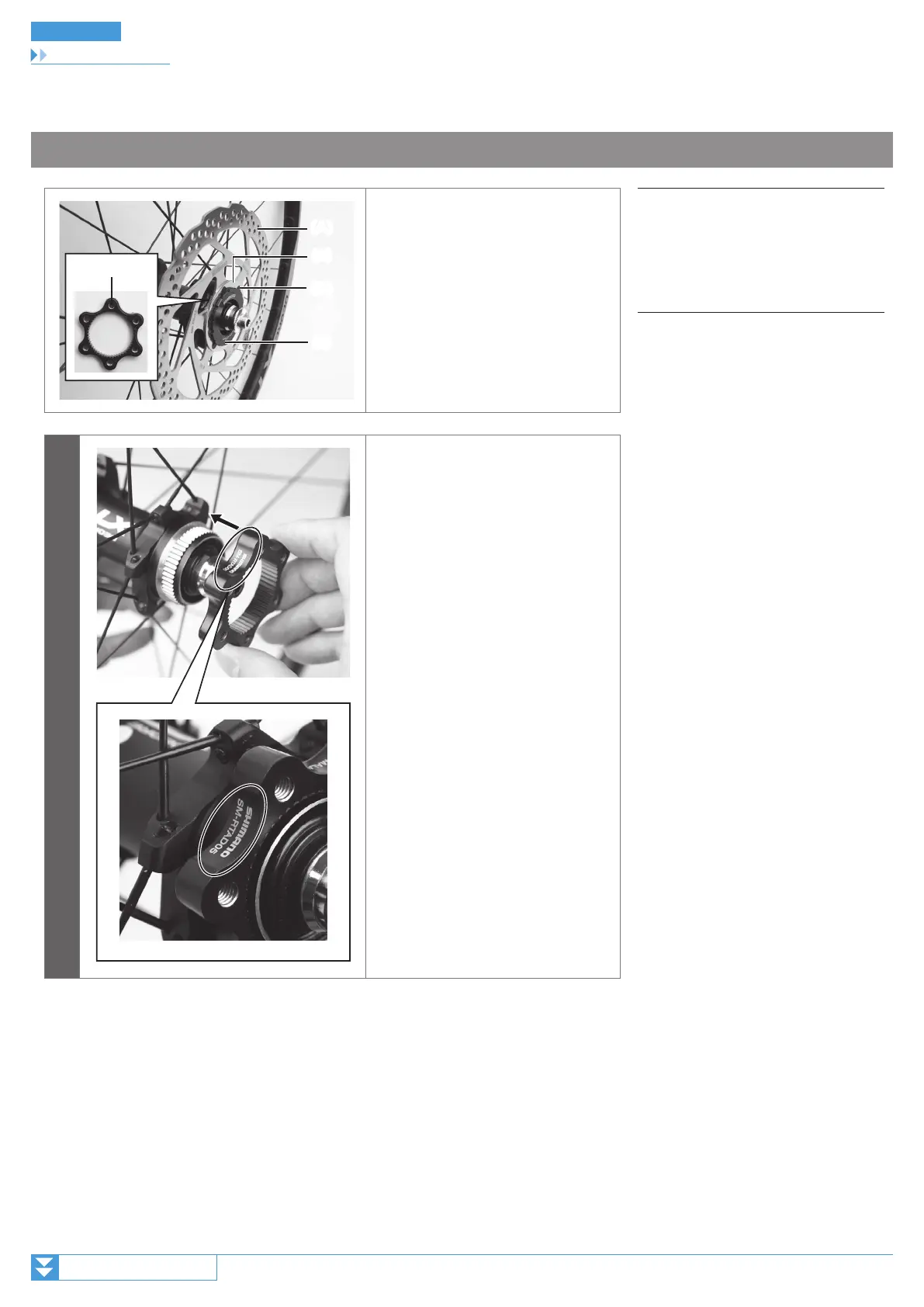

This product is an adapter used for
installing 6 bolt type disc brake rotors to
center lock system hubs/wheels.
(A) Disc brake rotor
(B) Washer
(C) Disc brake rotor adapter
(D) Disc brake rotor fixing bolt
(E) Disc brake rotor fixing lock ring
1
Place the disc brake rotor adapter on to
the hub.
