INSTALLATION
Disc brake rotor adapter
2
(A)
(B)
(z)
(z)

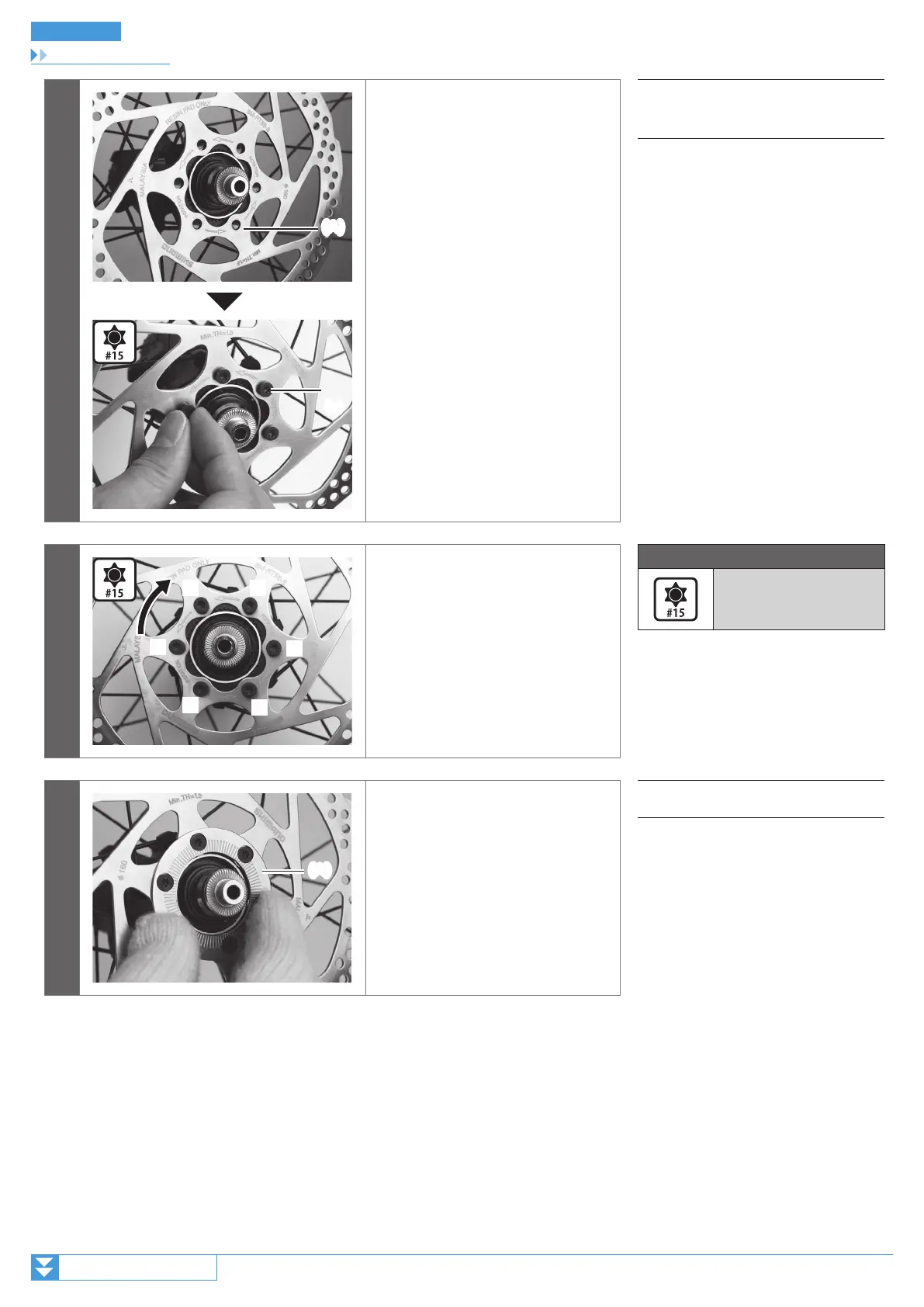

Place the disc brake rotor on to the hub,
and then temporarily fix it in place by
tightening the disc brake rotor fixing
bolts.
(z)
Hexalobular[#15]
(A)
Disc brake rotor
(B)
Disc brake rotor fixing bolt
3
1
2
3
4
5
6
Wear gloves and turn the disc brake
rotor clockwise with some force.
Then, tighten the disc brake rotor fixing
bolts in the order shown in the
illustration.
Tightening torque
2 - 4 N·m
4
(A)(A)
Fit the washer.
(A)
Washer
