33
MAINTENANCE

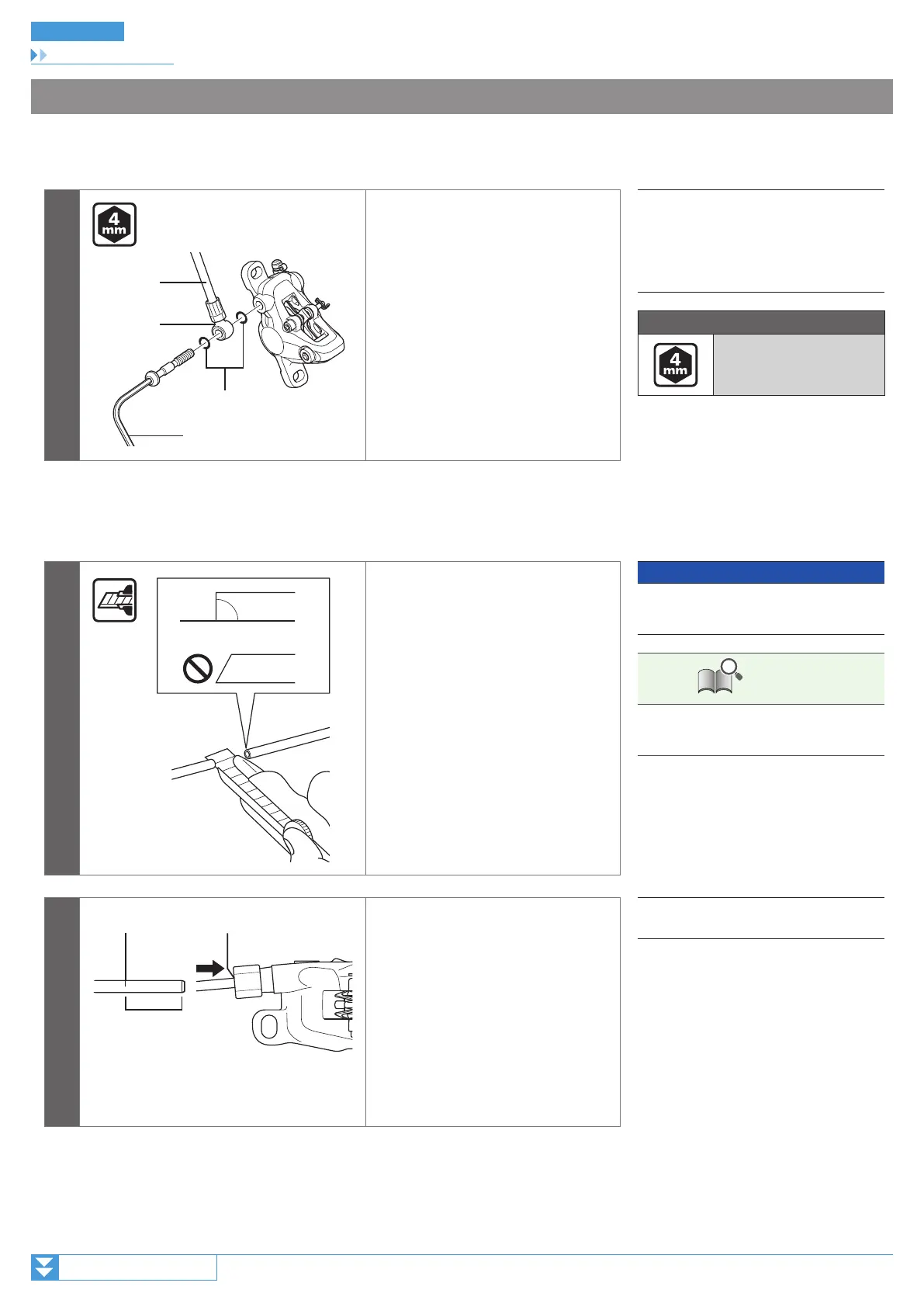

Replacing the brake hose
To be continued on next page
Caliper side
BR-M8000
1
(A)
(C)
(B)
(D)
After checking that both O-rings are
fitted in the top groove and bottom
groove of the banjo, secure the banjo to
the caliper as shown in the illustration.
At this point, check that the O-rings are
in the grooves.
The O-rings are greased.
(A)
Brake hose
(B)
Banjo
(C)
O-ring
(D)
4mm hexagon wrench
Tightening torque
8 - 10 N·m
BR-M6000
Mount the connecting bolt, the olive, and the connector insert by following the same procedure as for the brake lever.
Use an 8mm spanner to secure the connecting bolt.
1
(z)
Use a utility knife or other cutting tool
to cut the brake hose.
(z)
90°
NOTE
Use the utility knife safely and correctly in
accordance with its instruction manual.
TECH TIPS
If you are using TL-BH62, refer to the manual
accompanying the product.
2
(z)
(A)
(A)
In order to check that the ends of the
brake hose are fitted securely into the
base of the brake hose mounts of the
brake calipers and brake lever, make
marks on the brake hose beforehand as
shown in the illustration.
(As a guide, the length of brake hose
inside the mount should be
approximately 14mm, measured from
the cut end of the brake hose.)
(z)
Approx. 14mm
(A)
Mark
To Next Page
