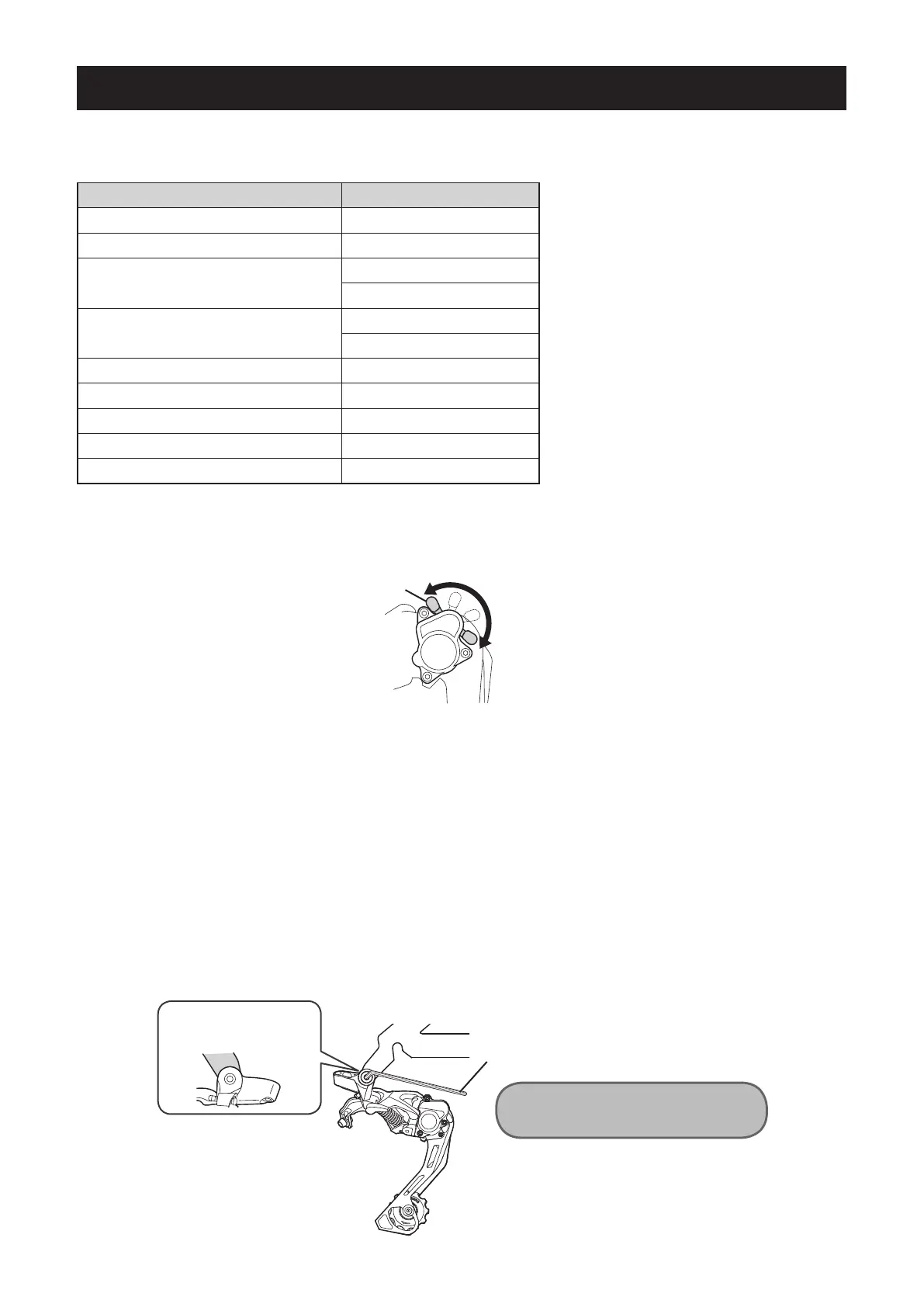

INSTALLATION
List of tools to be used
The following tools are needed to assemble this product.
Where to use Tool
Bracket axle 5 mm Allen key
Mode converter 2 mm Allen key (RD-M820)
End adjust bolt
Screwdriver #2
3 mm Allen key (RD-M820)
Bump stopper
3 mm Allen key
1.5 mm Allen key
Plate stopper pin Screwdriver #2
Plate unit cover bolt 2 mm Allen key
Plate axle 4 mm Allen key
Guide pulley/Tension pulley 3 mm Allen key
Top/Low adjustment screw Screwdriver #2
Move the lever switch to the OFF position before installing the SHADOW RD+.
Lever switch
ON
OFF
Refer to "REAR DERAILLEUR FOR MTB/TREKKING" in the General Operations for installation to the frame.
Direct mount
Note:
Direct mount rear derailleurs can only be mounted on direct-mount compatible frames.
The E-ring is not
necessary for installation.
5 mm Allen key
Tightening torque:
8.0 - 10.0 N·m {70 - 87 in. lbs.}
