-21-
2. 下切刀組之左右位置—
當下切刀組之活動刀片(A)往左移至左
定點時，活動刀(A)之刀尖，須超出下
勾針
(
B
)
之左邊穿線孔約1mm。(圖31)
調整時，可放鬆連結滑塊(C)上的螺絲
(D)，再用螺絲刀旋轉螺絲(E)，微調
活動刀片左右位置至正確點後，再鎖
緊螺絲(D)。(圖32)
注意：
1﹒ 下切刀組完成調整時，須再次用手動移出活
動刀片，確認相關位置是否正確、順暢。
2﹒ 當必須調整下切刀組相關位置時，須確認
針棒是否處於上定點，下勾針位於左定點
(此為切線點)。

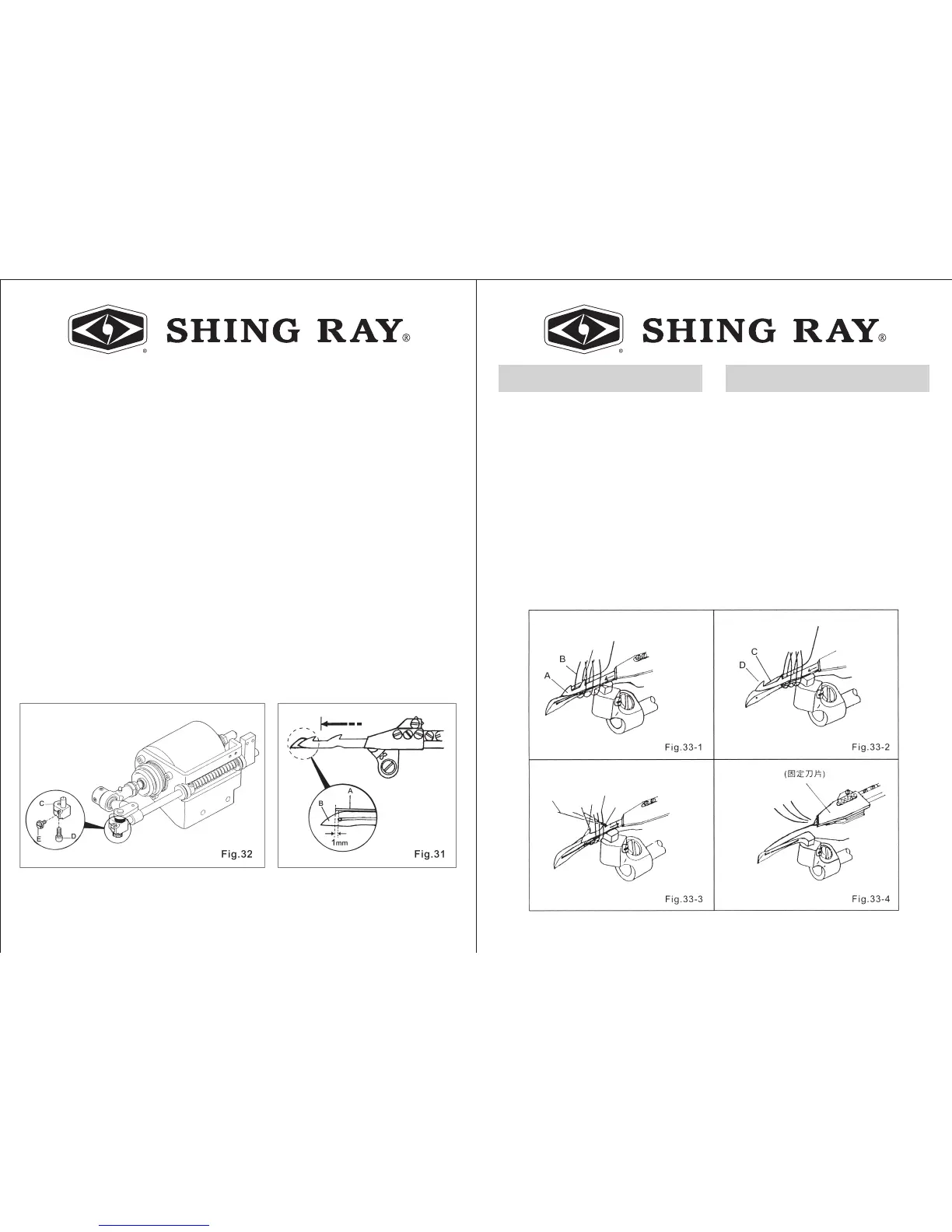

2. The Right and left position of
Bottom Trimmer
-
When the Moving Knife move to the left dead
point, the tip of Moving Knife has passed 1mm
over than the threading hole of looper. (Fig. 31)
When you would like to adjust the right & left
position of Moving Knife. First, please loose the
screw (D) of Connecting Block (C), to turn the
screw (E) by screwdriver for micro adjusting the
correct right & left position of Moving Knife.,
then to locked the screw (D) down. (Fig.32)
Remark :
(1)
When you finish adjusted, please be moved
the Bottom Trimmer by hand to confirm the
relative position correctly & smoothly﹒
(2)When you adjust the relative position of
Bottom Trimmer, please always confirm the
needle bar in the top dead point & the looper
in the left dead point which are the timing
of cutting thread﹒
-22-
1. 當活動刀片
(
A
)
往左邊移時，必須通過針
線之線環
(
B
)
。(圖33-1)
2. 當活動刀片往左移至左定點時，下勾針
線(C)須滑入活動刀片(A)之左邊刀口(D)
內。(圖33-2)
3. 活動刀片往右回移時，活動刀片右刀口
須勾住針線，左刀口勾住下勾針線，一
起往右拉回。(圖33-3)
4. 針線及下勾針線由活動刀片拉回與固定
刀切斷，針線切斷後自然脫落，下勾針
線靠下勾針一端線頭須穩穩夾住於切刀。
(圖33-4)
C
下切刀組與針線及下勾針線之關係：
1. When the Moving Knife (A) move to the left
which must be passed the loop (B) of needle
thread. (Fig 33-1)
2.
When the Moving Knife move to the left dead
point which looper thread must be dropped
into the left hook (D) of Moving Knife (A).
(Fig.33-2)
3.
When the Moving Knife move to the right, the right
hook of Moving Knife must hooks the
needle
thread and left hook must hooks the looper thread
to pull into right side in same
time. (Fig.33-3)
4.
The needle & looper thread are pulled back
by
Moving Knife and be cut by Fixing Knife.
The
needle thread must be cut in efficiently and looper
thread has clipped by Bottom Trimmer in
stably. (Fig.33-4)
C.
THE RELATIVE POSITION OF NEEDLE,
LOOPER THREAD AND BOTTOM TRIMMER.
