ADM-880C 07/20/094
3.0 EXTERNAL FEATURES
External Read Jack for
Pushbutton Handle Plug
Pushbutton Reset

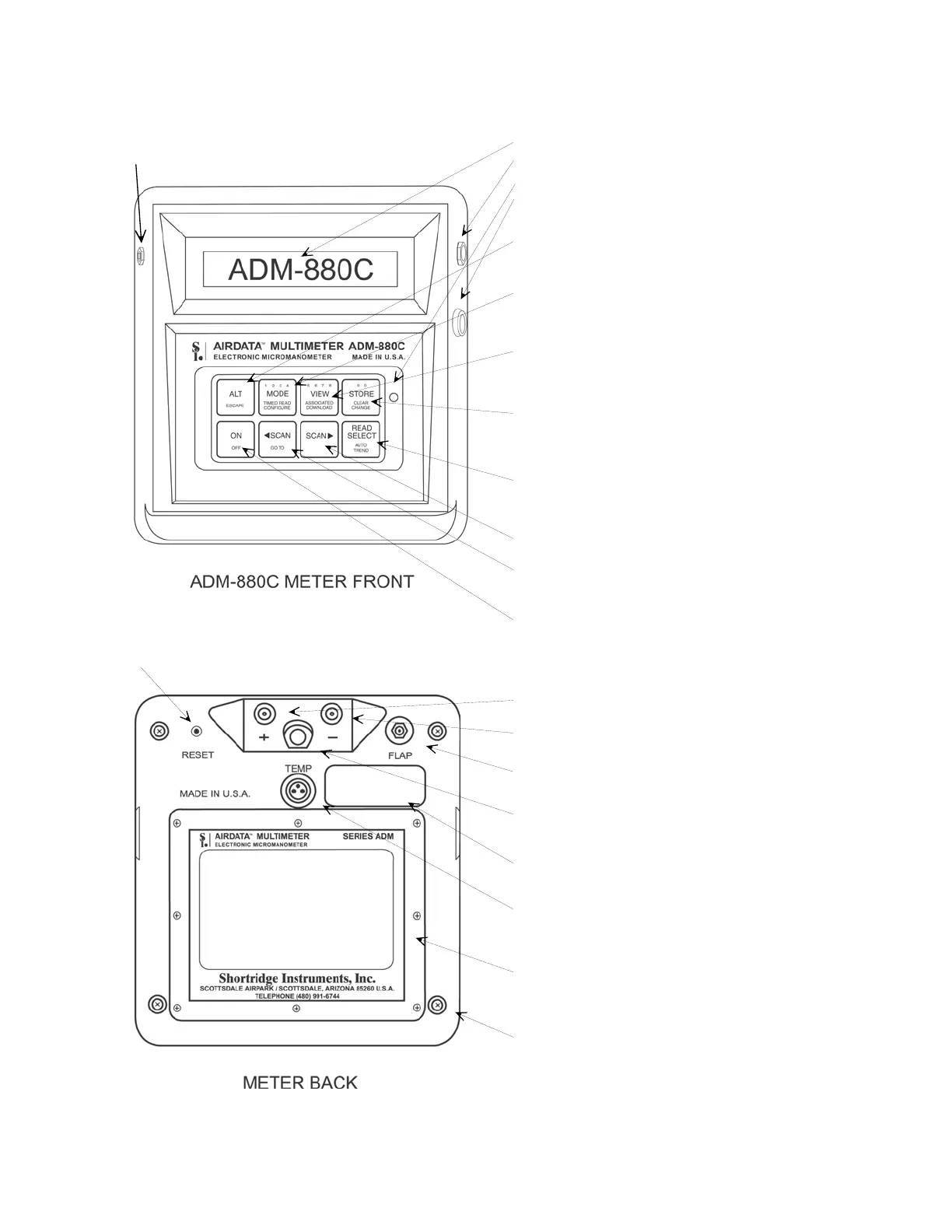

FIGURE 3.1 ADM-880C METER FRONT AND BACK
10 Digit, 0.4" LCD Display
Battery Charger Jack
Green LED indicates if charger is plugged in
RS232 Serial Port Jack
ALT Alters function of following key
ESCAPE Exits loop; displays current selections
MODE Flow/Press/Temp/VelGrid/AirFoil/Pitot
TIMED READ Set up for timed readings
CONFIGURE Set up Units, Density, Time, Date
VIEW View statistics
ASSOCIATED View Assoc Press, Temp, Time, Date
DOWNLOAD Download to printer
STORE Store in memory
CLEAR Clear memory
CHANGE Change mem group; erase; replace
READ Initiate reading; halt read sequence
SELECT Select displayed option
AUTO Automatic readings
TREND TREND readings
SCAN
< Recall in entry order
= SCAN Recall in reverse order
GO TO Go To a designated reading
ON Power On; turn light On & Off
OFF Power Off after ALT
Positive (+) Pressure Port
Negative (-) Pressure Port
Flaps Jack for FlowHood Flaps Plug
Threaded Insert for Attachment to FlowHood
with Captive Screw
Calibration Label with Serial Number & Date
Temperature Input Jack for TemProbe,
Retractile Cord or MultiTemp
Battery Compartment Cover - Remove the 8
Small Phillips Head Screws to Test or Replace the
Batteries (12 AA NICAD)
Four Large Phillips Head Screws That Hold
the Meter Case Together - DO NOT REMOVE
