SHOWTEC Explorer 575 Spot - DMX Protocol Functions; Movement and Fine Control; Focus, Color, and Prism Control

11

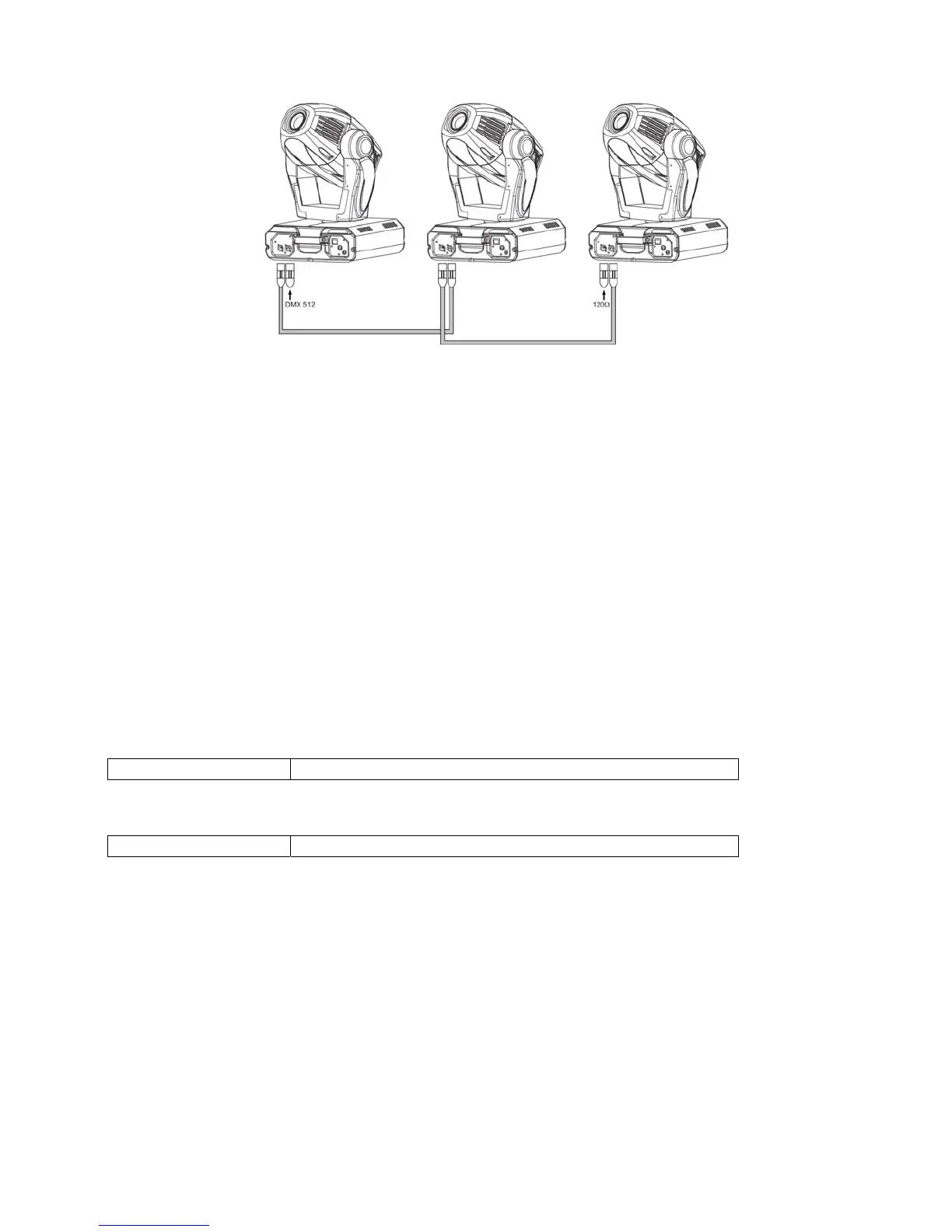

Multiple Explorers Set Up
DMX-Set up
Fig. 6
Note : Link all cables before connecting electric power
DMX Protocol
Channel 1 - Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 530°and stopped at any position you wish.
Channel 2 - Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 280°and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Scan Speed Adjustment
Channel 6 – Focus
0-255 Gradual adjustment Scan Speed from fast to slow
0-255 Continuous adjustment from close to far
