Description of the Device
Features
The Showtec NET-2/3 Pocket node is a cutting-edge network routing device which converts Art-Net or
sACN to DMX-512 and vice versa. It allows for the transmission of a maximum of 1024 DMX channels over
a single Ethernet cable. The NET-2/3 Pocket can be configured remotely via a web interface and can be
powered using PoE (Power-over-Ethernet) technology. It supports Backup, Normal, Single, HTP and LTP
merging options.
● DMX: 2 universes (IN and/or OUT)
● Network: RJ45
● Data speed: 1 Gbps
● Input voltage: 12 V DC, 500 mA PoE
● Power consumption: 8 W
● Connections: 2 x 3-pin XLR IN/OUT, RJ45 connector, DC input connector
● Power supply: PoE, AC power adapter
● Supported protocols: Art-Net, sACN, TCP/IPv4, DMX-512-A
● Setup: control panel, web interface
● Merging options: HTP, LTP, Normal, Backup
● DMX data refresh rate: 40 Hz default (adjustable 10-40 Hz)
● Display: OLED
● IP rating: IP20
● Operating temperature: 0-40 °C
● Dimensions: 115 x 67 x 44 mm (L x W x H)
● Weight: 0,3 kg

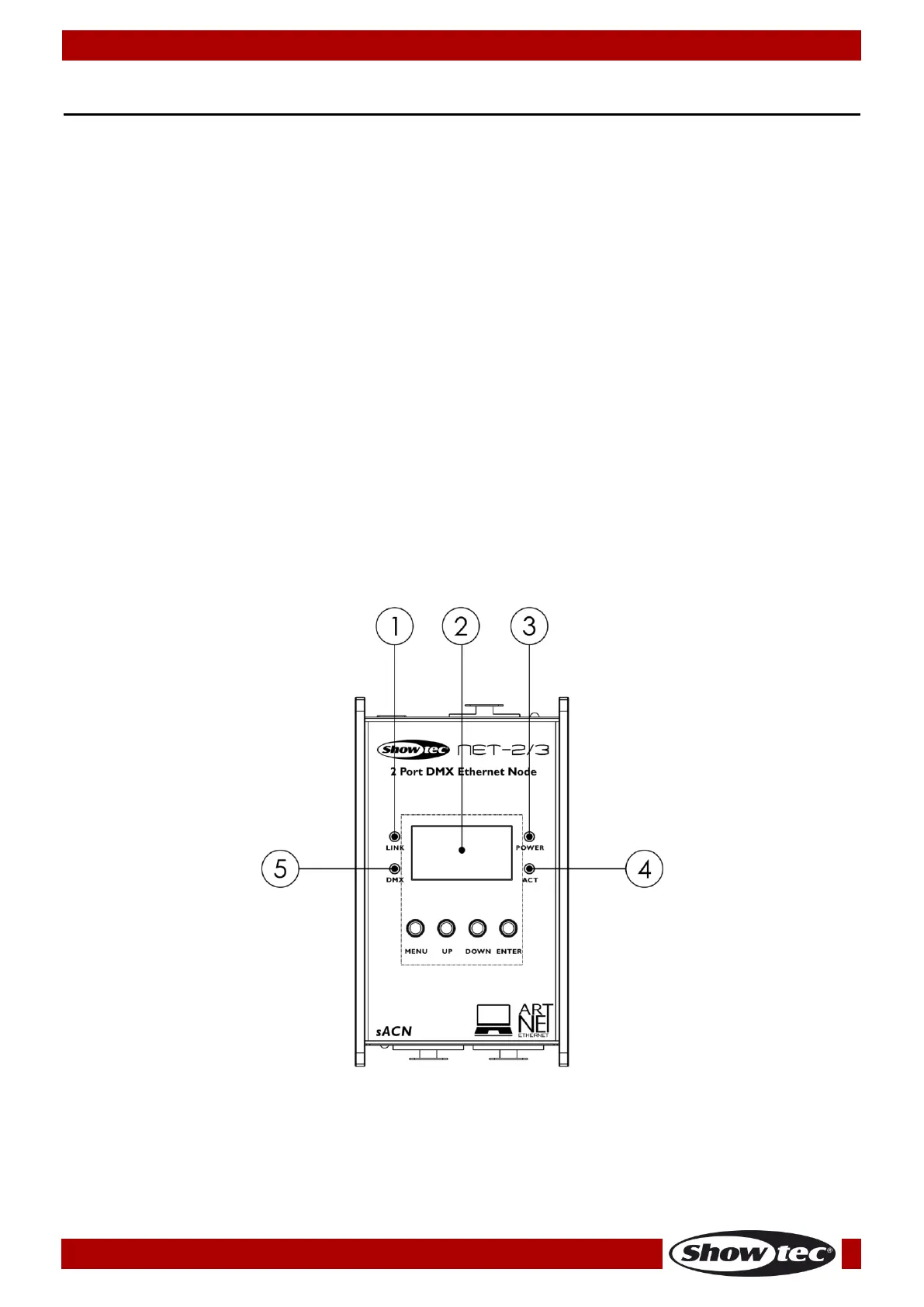

Top View
01) Link LED indicator. This indicator lights up when a network signal is received.
02) Control panel – OLED display with buttons
03) Power LED indicator. This indicator lights up when the device is powered.
04) Activity LED indicator. This indicator lights up when there is network activity.
05) DMX LED indicator. This indicator lights up when a DMX signal is present.
