Hardware

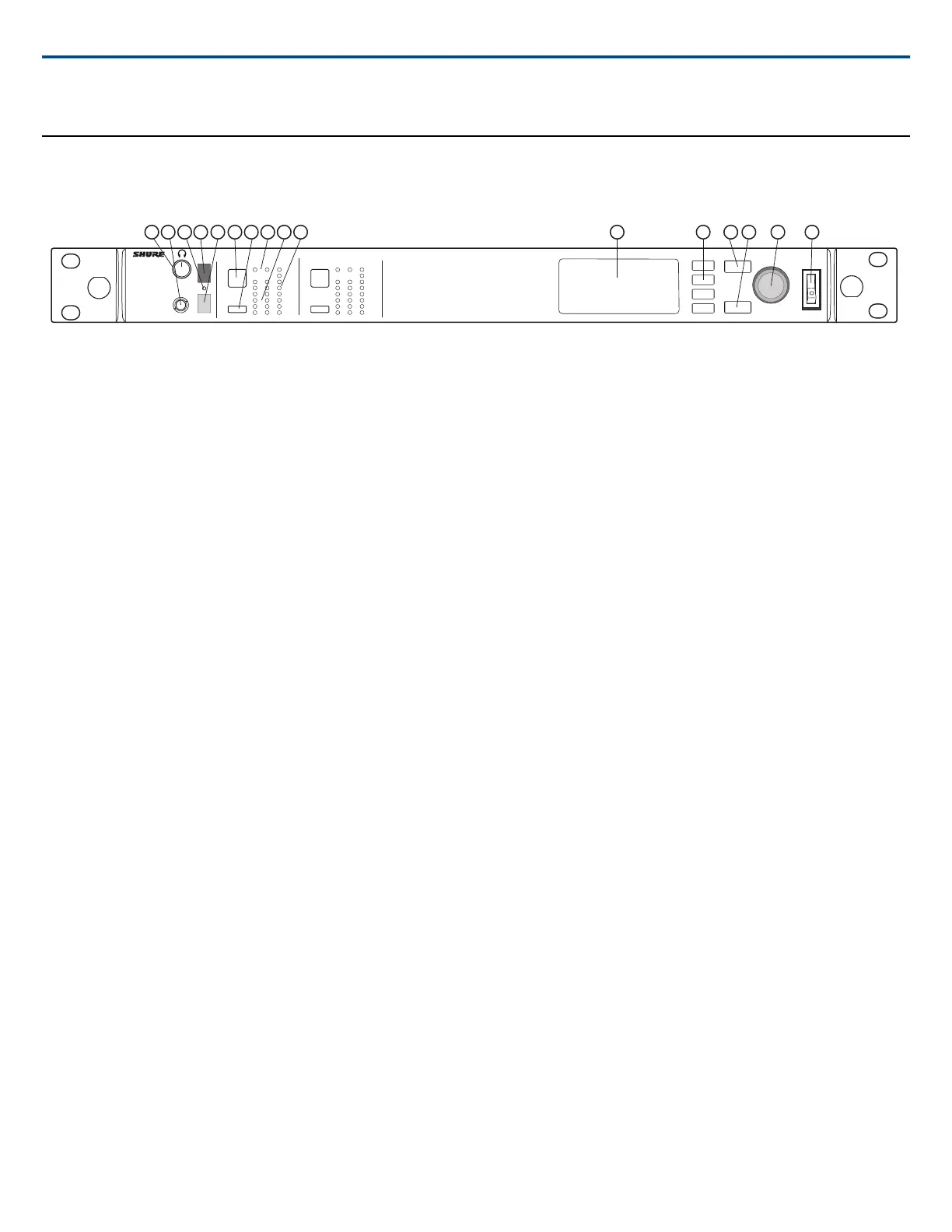

Receiver Front Panel
AD4D
Axient Digital
Wireless Receiver
POWER
PUSH
CONTROL
NAVIGATE
IR
RF
A B
OL
AUDIO
SYNC
2
RX 2RF
A B
OL
AUDIO
SYNC
1
RX 1
1
9
1110
15 16
12
13
14
4 52 3
7 8
6
ENTER
EXIT
Headphone Volume Knob
Controls headphone volume for the selected channel. Clip indicator warns of signal overload or limiter engagement.
Press knob to access Dante options and headphone settings.
Monitor Jack
¼" (6.3 mm) output jack.
Infrared (IR) Sync LED
The LED will turn red when the transmitter and receiver are correctly aligned for IR sync.
Infrared (IR) Sync Window
Align with IR window on transmitter to sync.
Ambient Light Sensor
Automatically detects external lighting conditions.
Channel Select Button
Press to select channel.
Sync Button
Press to sync when transmitter and receiver are aligned. The IR Sync LED changes to red to indicate correct alignment.
Antenna Status LEDs
Indicates status for both antennas:
Blue = Normal RF signal between the receiver and transmitter
Red = Interference detected
Off = No RF connection between the receiver and transmitter
Note: The receiver will not output audio unless one blue LED is illuminated.
RF Signal Strength LEDs
Indicate the RF signal strength from the transmitter:
Orange = Normal (-90 to -70 dBm in 5 dBm increments)
Red = Overload (greater than -20 dBm)
Audio LEDs
Red, yellow, and green LEDs indicate average and peak audio levels.
The LED will turn red when the limiter is engaged.
Display
Displays information for the selected channel.
Function Buttons
Press to access editing and configuration options. The buttons are named F1, F2, F3, F4 (from top to bottom) and illuminate to when editing options are available.
ENTER Button
Press to save changes.
EXIT Button
Press to cancel changes and return to main menus.
Shure IncorporatedAD4D AD4D Dual Channel Receiver
2017/08/032/21
