Shure AD4D Axient User Manual

Connector Type
BNC
Impedance
50 Ω
Bias Voltage
12 to 13.5 V DC, 150 mA maximum, per antenna
3
RF Carrier Frequency Rangemodel dependent
470–636 MHzAD4D=A
606–810 MHzAD4D=B
750–960 MHzAD4D=C
Tables and Diagrams
Audio Output
Mic/Line Mute
AES3
1/4”
10 nF

XLR
10 nF

Ground
Lift
Ground
Lift
0 dB
-30 dB
-10 dB
AES3
XLR to ¼" Output

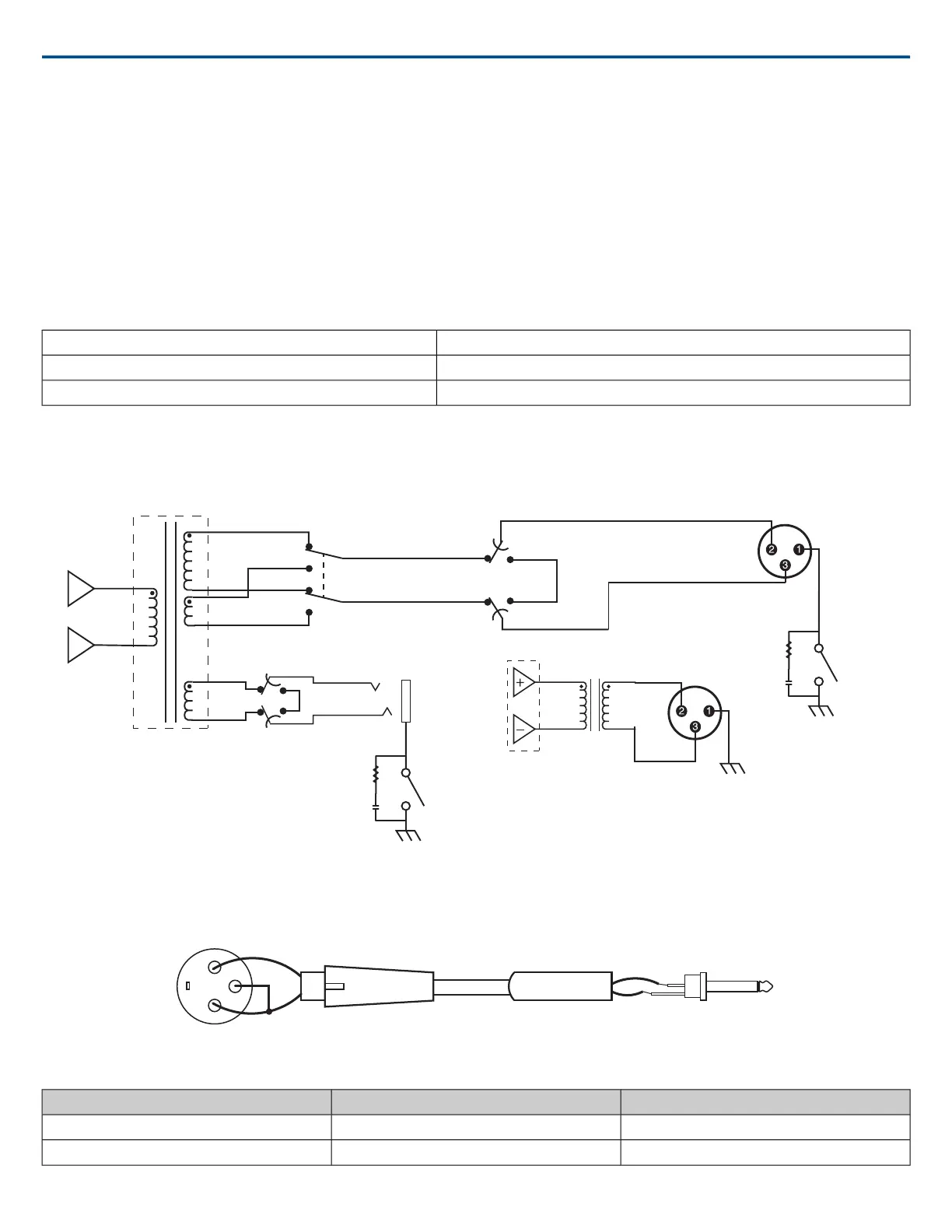

Use the following wiring diagram to convert the XLR output to a ¼" output.
2 Tip
1
Ring
3
Frequency Bands and Transmitter RF Power
RF Power (mW)***Frequency Range (MHz)Band
2/10/35470 to 510G53
2/10/20
479 to 565
G54
3
switchable on-off
Shure IncorporatedAD4D AD4D Dual Channel Receiver
2017/08/0320/21

Shure AD4D Axient Specifications

General

Brand	Shure
Model	AD4D Axient
Category	Receiver
Language	English
