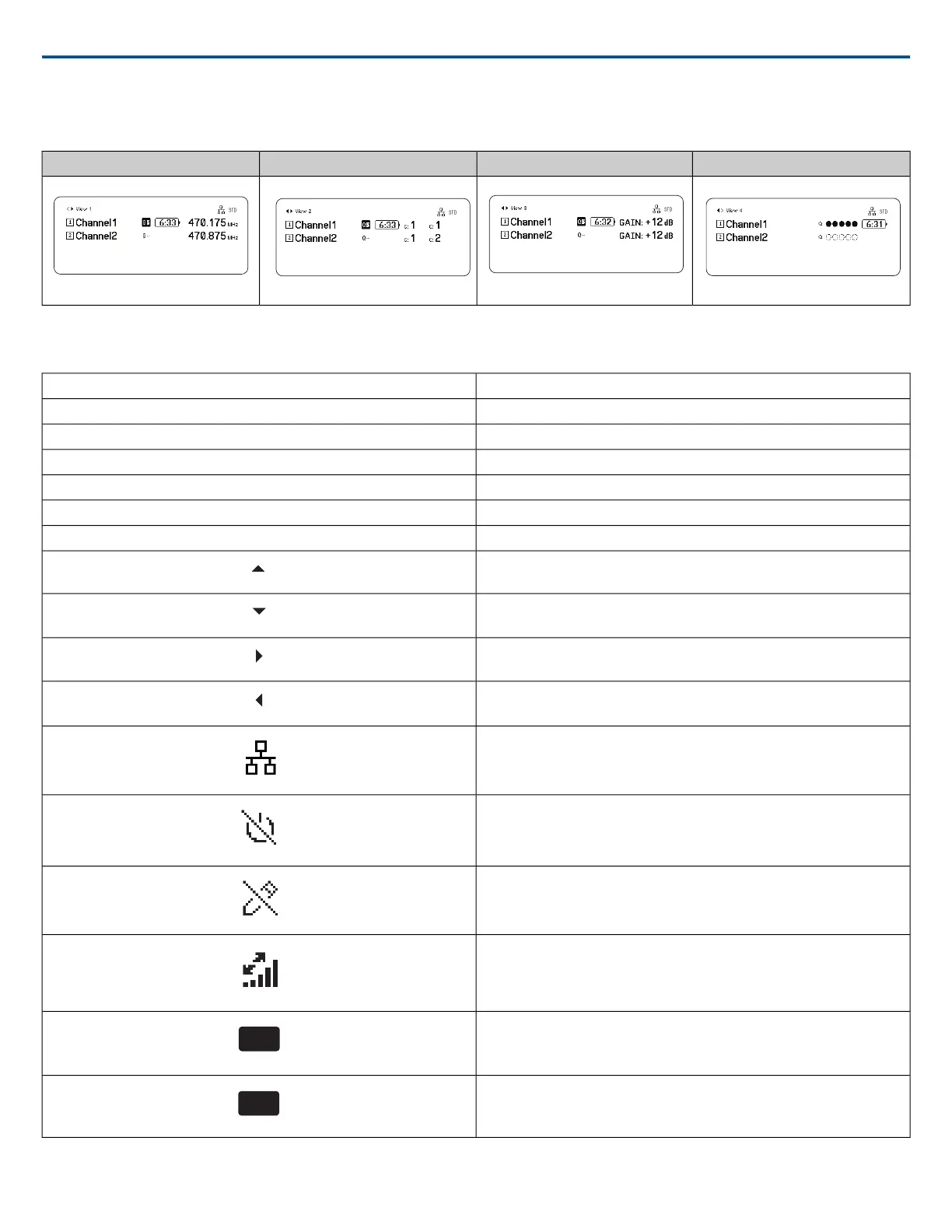

You can rotate the control wheel to choose different views of the information shown on the home screen, including channel name, group and channel, quality
meter, gain, and frequency.
View 4View 3View 2View 1
Screen Icons
The following screen icons indicate receiver modes or settings:
Standard Transmission Mode
STD
High Density Transmission Mode
HD
Frequency Group
G:
Channel
C:
TV band for selected frequency
TV:
AES3 Output Selected
AES3
Selected Home Screen View
View
Scroll Up for More Choices
Scroll Down for More Choices
Scroll Right for More Choices
Scroll Left for More Choices
Network Connection Present tor Other Shure Devices or WWB
Power Switch Locked
Front Panel Controls Locked
Indicates ShowLink control active between the receiver and the linked
transmitter
Combining Frequency Diversity Enabled
FD-C
Selection Frequency Diversity Enabled
FD-S
