Shure GLXD4R+ - System Set Up; Linking Receiver and Transmitter; Linking Two Transmitters to a Receiver

Shure Incorporated
4/11
1.
2.
3.

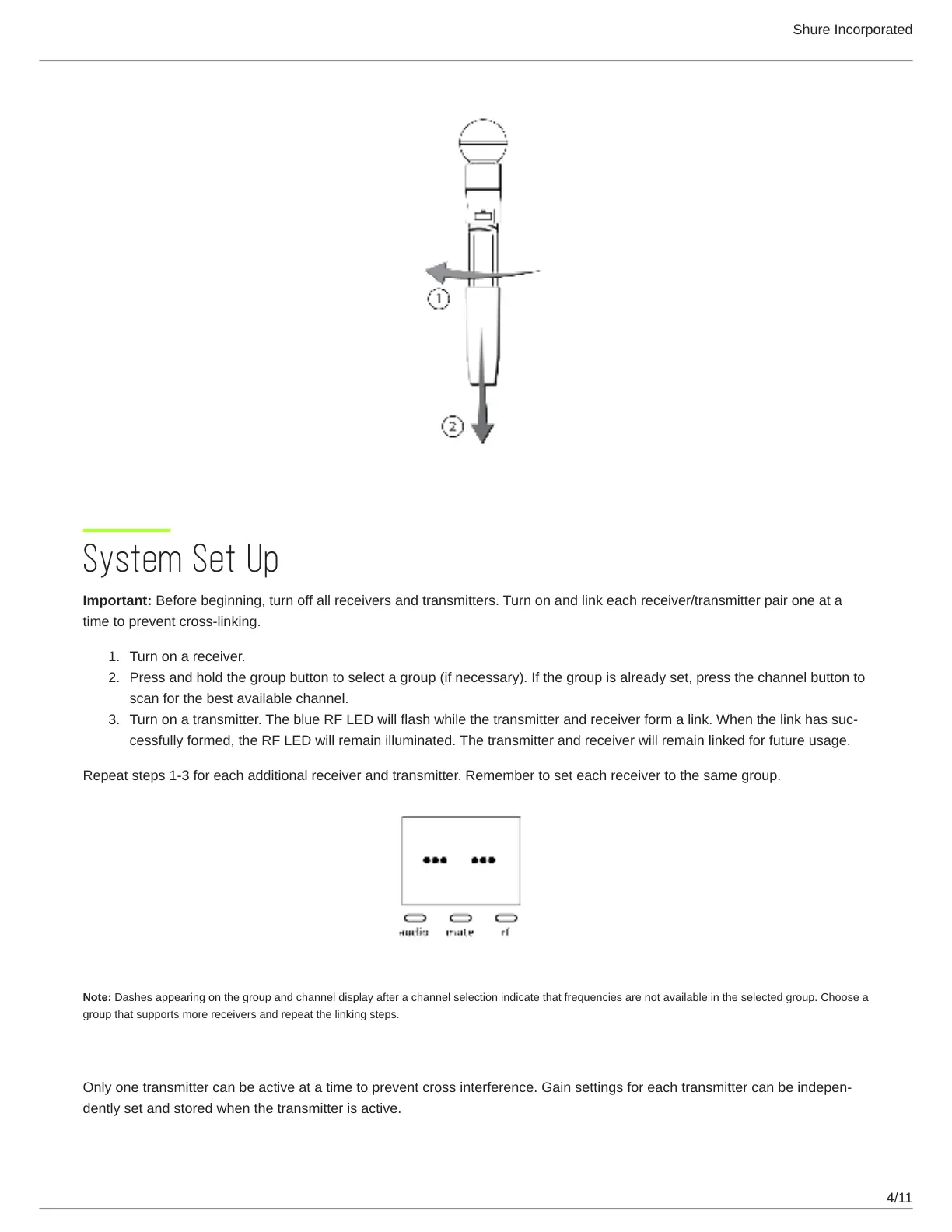

System Set Up
Important: Before beginning, turn off all receivers and transmitters. Turn on and link each receiver/transmitter pair one at a
time to prevent cross-linking.
Turn on a receiver.
Press and hold the group button to select a group (if necessary). If the group is already set, press the channel button to
scan for the best available channel.
Turn on a transmitter. The blue RF LED will flash while the transmitter and receiver form a link. When the link has suc
cessfully formed, the RF LED will remain illuminated. The transmitter and receiver will remain linked for future usage.
Repeat steps 1-3 for each additional receiver and transmitter. Remember to set each receiver to the same group.
Note: Dashes appearing on the group and channel display after a channel selection indicate that frequencies are not available in the selected group. Choose a
group that supports more receivers and repeat the linking steps.
Linking Two Transmitters to a Receiver
Only one transmitter can be active at a time to prevent cross interference. Gain settings for each transmitter can be indepen
dently set and stored when the transmitter is active.
