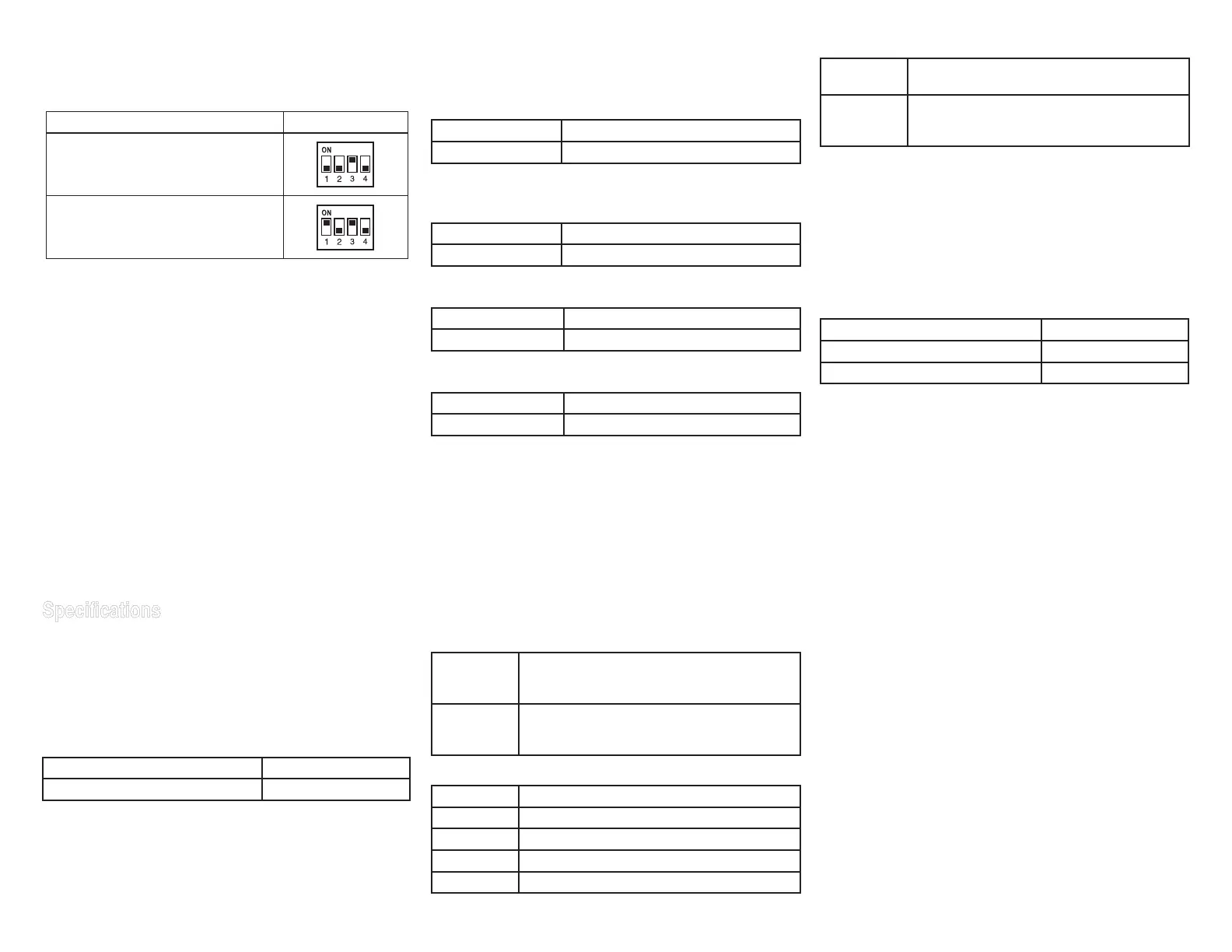

Page #5 background imageLoading...
Page #5 background image
Button Configuration
For logic control operation, DIP Switch 1 determines the button be-
havior (DIP Switch 2 has no effect).
Button Behavior DIP Switch Setting
Momentary: When pushed, SWITCH OUT
(red wire) falls to 0 V. When released,
SWITCH OUT returns to +5 V.
Toggle: Push and release sets SWITCH
OUT to 0 V. Push again to toggle back to
+5 V.
Controlling the LED Using Logic LED IN
When configured for logic mute control, connect the LED IN con-
ductors to an external switch, relay, or a TTL gate (gate out) on an
automatic mixer. The MX400DB contains an internal pull-up resis-
tor circuit.
The LED illuminates green/red when the MX396 LED IN is
grounded (orange wire connected to the green wire).
The LED illuminates red/off when LED IN is lifted (orange wire
is NOT connected to the green wire).
Specifications
Preamp Gain
If necessary, the preamplifier gain can be reduced by 12 dB.
Contact an authorized Shure service center for information.
Cartridge Type
Electret Condenser
Frequency Response
50–17000 Hz
Polar Pattern
MX405/C, MX410/C, MX415/C Cardioid
MX405/S, MX410/S, MX415/S Supercardioid
Output Impedance
170Ω
Output Configuration
Active Balanced
Sensitivity
@ 1 kHz, open circuit voltage
Cardioid −35dBV/Pa(18mV)
Supercardioid −34dBV/Pa(21mV)
1 Pa=94 dB SPL
Maximum SPL
1kHzat1%THD,1kΩload
Cardioid 121 dB
Supercardioid 120 dB
Equivalent Output Noise
A-weighted
Cardioid 28 dB SPL
Supercardioid 27 dB SPL
Signal-to-Noise Ratio
Ref. 94 dB SPL at 1 kHz
Cardioid 66 dB
Supercardioid 68 dB
Dynamic Range
1kΩload,@1kHz
93 dB
Common Mode Rejection
10 to 100,000 kHz
45 dB, minimum
Preamplifier Output Clipping Level
at 1% THD
−8dBV(0.4V)
Polarity
3-pin XLR Positive sound pressure on diaphragm produces
positive voltage on pin 2 relative to pin 3 of out-
put XLR connector
5-pin XLR Positive sound pressure on diaphragm produces
positive voltage on pin 4 relative to pin 2 of out-
put XLR connector
Net Weight
MX405 0.054 kg (0.119 lbs)
MX410 0.068 kg (0.150 lbs)
MX415 0.07 kg (0.154 lbs)
MX400DP 0.516 kg (1.138 lbs)
MX400SMP 0.125 kg (0.275 lbs)
Logic Connections
LED IN Activelow(≤1.0V),TTLcompatible.Absolute
maximum voltage: -0.7V to 50V.
LOGIC OUT
Activelow(≤1.0V),sinksupto20mA,TTLcom-
patible. Absolute maximum voltage: -0.7V to 50V
(upto50Vthrough3kΩ).
Mute Switch Attenuation
-50 dB minimum
Cable
MX400DP
6.1 m (20 ft) attached cable with shielded audio pair terminated
at a 3-pin male XLR and three unterminated conductors for logic
control
Environmental Conditions
Operating Temperature –18–57°C (0–135°F)
Storage Temperature –29–74°C (–20–165°F)
Relative Humidity 0–95%
Power Requirements
Phantom Power
48–52 V DC, 8.0 mA
5
