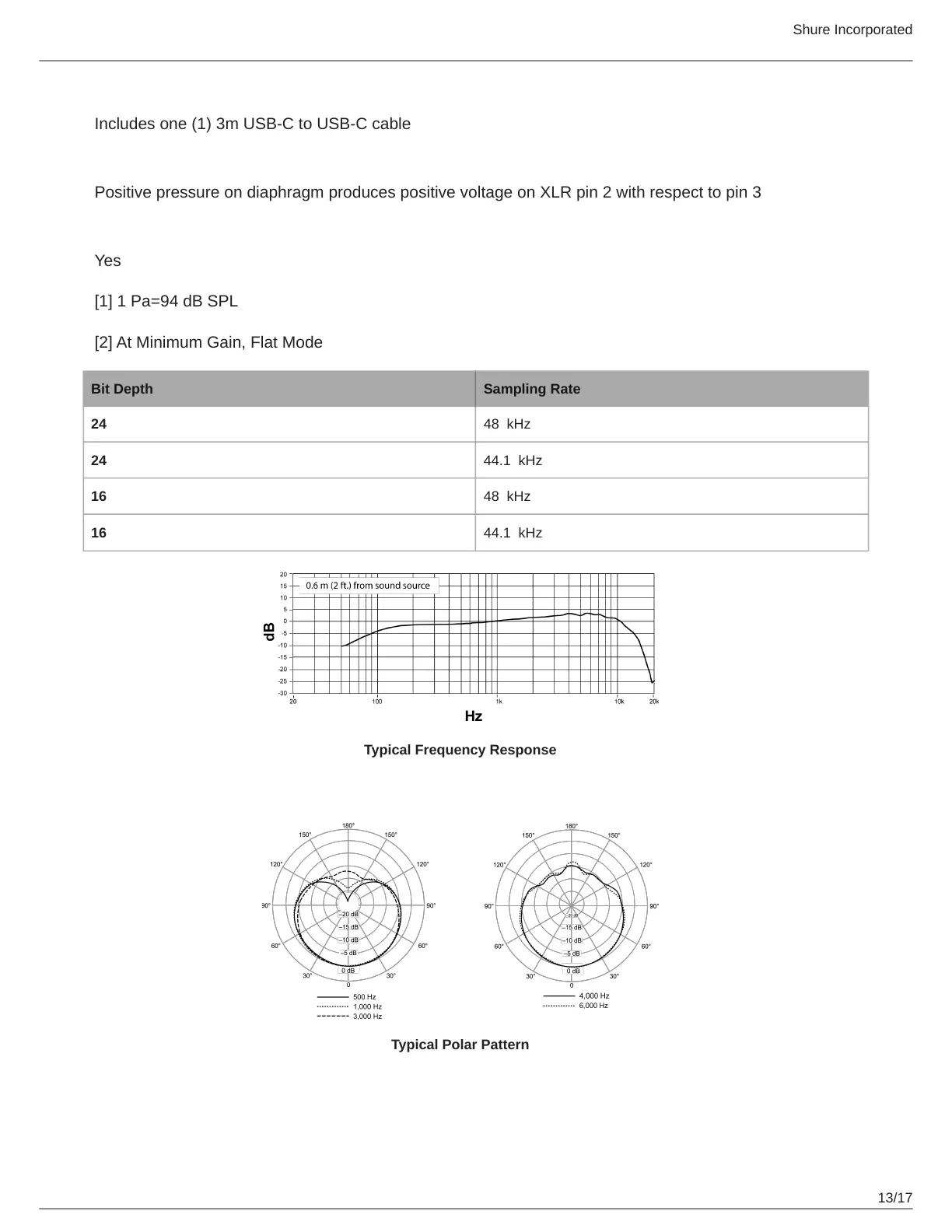

Shure MV7+ - Page 13

Shure Incorporated
13/17
Cable
Includes one (1) 3m USB-C to USB-C cable
Polarity
Positive pressure on diaphragm produces positive voltage on XLR pin 2 with respect to pin 3
Phantom Power Protection
Yes
[1]1Pa=94dBSPL
[2] At Minimum Gain, Flat Mode
Bit Depth Sampling Rate
24 48 kHz
24 44.1 kHz
16 48 kHz
16 44.1 kHz
Typical Frequency Response
Typical Polar Pattern
